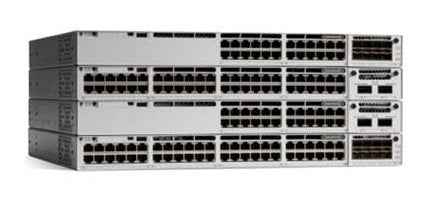

• Cisco C9300L-48PF-4G-E switch stack with 48 PoE+ ports and SFP uplinks
1 1

Cisco

Cisco C9300L-48PF-4G-E | Catalyst 9300L 48-Port PoE+ Switch, 4x 1G, Network Essentials

C9300L-48PF-4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a fixed-uplink, stackable enterprise access switch aimed at campus and branch access-layer deployments. It suits sites that need full PoE+ for IP phones, wireless access points and cameras, and it supports Cisco SD-Access for policy-based automation and segmentation.

This model provides 48 10/100/1000 PoE+ ports and 4 x 1G fixed SFP uplinks. It ships with a default PWR-C1-1100WAC-P 1100W AC power supply, giving 890W of available PoE power with that supply alone, and up to 1440W with a larger secondary supply fitted. Switching capacity is 104 Gbps without stacking and 424 Gbps with stacking, and forwarding rate is 77.38 Mpps without stacking and 315.48 Mpps with stacking. Forwarding is wire-speed and non-blocking for IPv4 and IPv6.

The -E suffix denotes the Network Essentials software tier. The 9300L fixed-uplink models do not use the modular network modules found on other Catalyst 9300 variants, and power supplies are common across the Catalyst 9300 Series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fixed 4x1G uplinks with 48 full-PoE+ access ports
- Dual redundant, field-replaceable power supplies
- Three field-replaceable fans
- Stackable as a single virtual switch for single-point management
- Supports Cisco SD-Access policy-based automation and segmentation
- Wire-speed non-blocking IPv4 and IPv6 forwarding

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: C9300L-48PF-4G
- Downlink ports: 48 x 10/100/1000 PoE+
- Uplinks: 4 x 1G fixed SFP
- Default power supply: PWR-C1-1100WAC-P (1100W AC)
- Available PoE power with single default 1100W PSU: 890W
- Available PoE power with 350W secondary PSU: 1240W
- Available PoE power with 715W secondary PSU: 1440W
- Available PoE power with 1100W secondary PSU: 1440W (limited by port count and port rating)
- Switching capacity: 104 Gbps without stacking, 424 Gbps with stacking
- Forwarding rate (64-byte IPv4): 77.38 Mpps without stacking, 315.48 Mpps with stacking
- Power supplies: dual redundant, a single PSU must be in bay 1
- Fans: three field-replaceable fans
- Performance: wire-speed, non-blocking for IPv4 and IPv6
- Software tier: Network Essentials

FAQs

Q: Which software licence tier does the C9300L-48PF-4G-E use?
A: The -E suffix denotes the Network Essentials tier.

Q: How much PoE power does it provide?
A: With the default 1100W AC power supply alone, 890W of PoE power is available. Adding a 350W secondary supply raises this to 1240W, and a 715W or 1100W secondary supply raises it to 1440W, limited by the port count and port rating.

Q: Can it be fitted with redundant power supplies?
A: Yes. The switch supports dual redundant power supplies. A single supply must be installed in bay 1, and the second can be added later.

Q: Are the uplinks modular?
A: No. The 9300L fixed-uplink models have 4 x 1G fixed SFP uplinks and do not use the modular network modules of other Catalyst 9300 variants.

Q: Can it be stacked?
A: Yes. It is stackable as a single virtual switch, with switching capacity rising from 104 Gbps to 424 Gbps when stacked.
