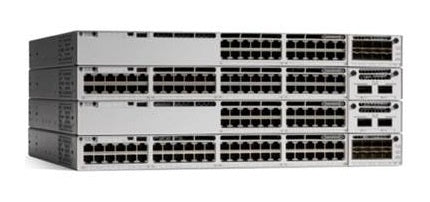

• Cisco C9300L-48PF-4G-A switch stack with 48 PoE+ ports and 4 SFP uplinks
1 1

Cisco

Cisco C9300L-48PF-4G-A | Catalyst 9300L 48-Port PoE+ Switch, 4x 1G SFP, Network Advantage

C9300L-48PF-4G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch built for campus and branch networks that power IP phones, cameras and Wi-Fi access points over PoE+. This model provides 48 Gigabit copper ports with full PoE+ capability and runs Cisco IOS XE. It suits SD-Access fabrics and deployments that need stackable 1G access with advanced routing and segmentation.

There are 48 x 10/100/1000 PoE+ ports and 4 x 1G fixed SFP uplinks. The default 1100W AC power supply gives 890W of available PoE power, rising to 1440W with a second power supply, with ports limited to 48 x 30W. Switching capacity is 104 Gbps, or 424 Gbps when stacked, with a forwarding rate of 77.38 Mpps. It carries 16 MB of packet buffer, 8 GB of DRAM and 16 GB of flash. The Network Advantage licence adds BGP, EIGRP, IS-IS, OSPF, VRF, VXLAN, LISP, TrustSec, MPLS and MACsec-256.

StackWise-320 stacking supports up to 8 members when paired with other Catalyst 9300L or 9300LM models at the same licence level, using the optional C9300L-STACK-KIT or C9300L-STACK-KIT2.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- StackWise-320 stacking for up to 8 members with a single management and control plane
- Full PoE+ on all 48 ports with the default 1100W AC power supply
- Dual redundant, field-replaceable power supplies and three field-replaceable fans (N+1)
- Perpetual PoE and Fast PoE for uninterrupted power to endpoints
- Cisco UADP 2.0 ASIC with IOS XE programmability including NETCONF, RESTCONF, gNMI and streaming telemetry
- Application hosting with an x86 CPU and external USB 3.0 SSD slot
- Foundation for Cisco SD-Access with Catalyst Center management
- Trust Anchor technology with secure boot, image signing and SUDI

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: C9300L-48PF-4G-A
- Downlink ports: 48 x 10/100/1000 PoE+
- Uplinks: 4 x 1G fixed SFP
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- Available PoE power (one 1100W PSU): 890W
- Available PoE power with 350W secondary PSU: 1240W
- Available PoE power with 715W or 1100W secondary PSU: 1440W
- Switching capacity: 104 Gbps (424 Gbps with stacking)
- Forwarding rate: 77.38 Mpps (315.48 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- Packet buffer: 16 MB
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions with default power supply (H x W x D): 4.4 x 44.5 x 48.8 cm
- Weight with default power supply: 7.03 kg
- MTBF: 303,660 hours
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing

FAQs

Q: Which licence tier does this switch ship with?
A: It ships with the perpetual Network Advantage licence. A matching-tier Cisco Catalyst or DNA subscription is required at the time of order, and Cisco Smart Licensing applies.

Q: How much PoE power is available?
A: With the default 1100W AC power supply, 890W of PoE is available. Adding a second power supply raises this to 1240W with a 350W unit or 1440W with a 715W or 1100W unit, limited by the 48 x 30W PoE+ ports.

Q: What can I stack it with?
A: It stacks only with other Catalyst 9300L and 9300LM models at the same licence level, using the C9300L-STACK-KIT or C9300L-STACK-KIT2. It cannot be stacked with modular-uplink C9300 models or Catalyst 3850 and 3650.

Q: Are the uplinks fixed or modular?
A: The four 1G SFP uplinks are fixed and cannot be swapped for a network module. This is the key difference from the modular-uplink Catalyst 9300 models.

Q: Does Cisco StackPower work on this model?
A: No. Cisco StackPower is not supported on Catalyst 9300L fixed-uplink models.
