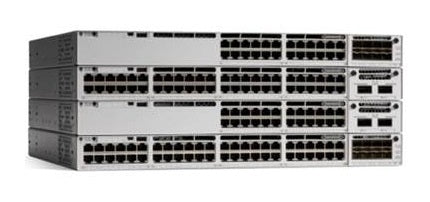

• Cisco C9300L-48P-4X-E switch stack with 48 PoE+ ports and 10G uplinks
1 1

Cisco

Cisco C9300L-48P-4X-E | Catalyst 9300L 48-Port Gigabit PoE+ Switch, 505W, 4x 10G SFP+

C9300L-48P-4X-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9300L-48P-4X-E is a fixed-configuration enterprise access switch with 48 Gigabit Ethernet PoE+ ports delivering 505W of power budget, ideal for powering access points, IP phones, and cameras. Equipped with four fixed 10G SFP+ uplinks, this 1RU switch supports StackWise-320 technology for stacking up to 8 switches with 320 Gbps bandwidth. Running Cisco IOS XE with Network Essentials license, it provides Layer 3 routing, encrypted traffic analytics, and robust security features for branch and campus deployments.

Features

StackWise-320 technology: Stack up to 8 switches with 320 Gbps bandwidth for unified management and resilience
- Network Essentials license: Layer 3 routing protocols including OSPF, EIGRP Stub, IS-IS, and RIP
- PoE+ (802.3af/at) support: 30W per port for powering access points, cameras, and phones
- Perpetual PoE: Maintains PoE power delivery during switch reboot for uninterrupted operation
- Fast PoE: Delivers power to endpoints before the operating system fully loads
- UADP 2.0 ASIC architecture: Programmable pipeline for flexible forwarding and security
- x86 CPU with 8 GB DRAM and 16 GB Flash: Supports containers and third-party applications
- Encrypted Traffic Analytics (ETA): Detects threats in encrypted traffic without decryption
- MACsec 256-bit encryption: Secures data at Layer 2
- Cisco TrustSec and 802.1X authentication: Enhanced network access control
- Flexible NetFlow (FNF): 64,000 flow entries for traffic monitoring and analysis
- Dual power supply support: Field-replaceable PSUs for redundancy
- N+1 redundant fans: Three field-replaceable fan modules for high availability
- USB 3.0 SSD slot: Expandable storage up to 240 GB for application hosting
- Cisco DNA and SD-Access ready: Automation, segmentation, and policy-based networking

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48 x 10/100/1000 Mbps PoE+ (802.3af/at) downlink ports
- 4 x 10G/1G SFP+ fixed uplink ports
- PoE+ power budget: 505W (default 715W AC power supply)
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps (64-byte packets)
- StackWise-320: up to 8 switches, 320 Gbps stacking bandwidth
- MAC address table: 32,000 entries
- IPv4 routing entries: 32,000 (24,000 direct + 8,000 indirect)
- DRAM: 8 GB, Flash: 16 GB
- Packet buffer: 16 MB
- Form factor: 1RU rackmount, 1.73 x 17.5 x 19.2 in (4.4 x 44.5 x 48.8 cm)
- Weight: 15.46 lb (7.03 kg) with default power supply
- Management: CLI, web UI, SNMP, Cisco DNA Center
- Operating system: Cisco IOS XE 16.11.1b or later
- Network Essentials license included

FAQs

Q: What license tier does the C9300L-48P-4X-E include?
A: The C9300L-48P-4X-E includes the Network Essentials license, which provides enterprise-grade Layer 3 routing features such as OSPF (Routed Access), EIGRP Stub, IS-IS, and RIP, along with encrypted traffic analytics and advanced security capabilities.

Q: Can this switch be stacked with other Catalyst 9300 Series models?
A: Yes, the C9300L-48P-4X-E supports StackWise-320 technology, enabling stacking of up to 8 C9300L series switches with 320 Gbps of total bandwidth. However, it cannot be stacked with modular uplink C9300 or C9300X models, or with older Catalyst 3650/3850 switches.

Q: What is the total PoE power budget and how can it be expanded?
A: The default 715W AC power supply provides 505W of PoE+ budget. By adding a secondary power supply (350W, 715W, or 1100W), the total available PoE budget can be expanded to 855W, 1220W, or 1440W respectively, enabling high-density PoE deployments.

Q: Is this switch compatible with Cisco DNA Center and SD-Access?
A: Yes, the C9300L-48P-4X-E is fully compatible with Cisco DNA Center for centralized management, automation, and analytics. It also supports Software-Defined Access (SD-Access), Cisco's lead enterprise architecture for intent-based networking.

Q: What types of devices can be powered by the PoE+ ports?
A: The 48 PoE+ ports support up to 30W per port and can power a wide range of devices including Wi-Fi 6 access points, IP cameras, VoIP phones, IoT sensors, wireless controllers, and other 802.3af/at compliant endpoints.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
