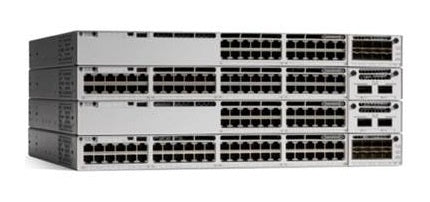

• Cisco C9300L-48P-4G-E switch stack with 48 PoE+ ports and SFP uplinks
1 1

Cisco

Cisco C9300L-48P-4G-E | Catalyst 9300L 48-Port PoE+ Switch, 505W, Network Essentials

C9300L-48P-4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch with 48 Gigabit PoE+ copper ports and four fixed 1G SFP uplinks. This SKU carries the Network Essentials licence tier and is built for campus and branch access layers that power IP phones, Wi-Fi access points, cameras and IoT endpoints.

Each downlink port is 10/100/1000 with PoE+ at up to 30W per port. The default 715W AC power supply provides 505W of PoE budget, and a second power supply raises that to 855W with a 350W unit, 1220W with a 715W unit or 1440W with an 1100W unit. Switching capacity is 104 Gbps (424 Gbps when stacked) with a forwarding rate of 77.38 Mpps. Memory is 8 GB DRAM and 16 GB flash with a 16 MB packet buffer.

Network Essentials covers Layer 2 and basic Layer 3 routing, QoS, 802.1X, MACsec-128 and telemetry. The 9300L stacks over StackWise-320 with up to eight members, using C9300L-STACK-KIT or C9300L-STACK-KIT2 and only with other Catalyst 9300L models at the same licence level. It runs Cisco IOS XE 16.11.1b or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with NETCONF, RESTCONF, YANG and model-driven telemetry
- Container-based application hosting with USB 3.0 SSD slot
- MACsec-128, Secure Boot and Trust Anchor
- Perpetual PoE and Fast PoE for uninterrupted endpoint power during reload
- Field-replaceable power supplies and N+1 redundant fans
- Cross-stack EtherChannel, Flexlink+, MSTP/PVRST+ and non-stop forwarding with SSO
- Energy Efficient Ethernet and per-port PoE power sensing
- SD-Access capable, with migration path to Meraki cloud management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000 PoE+ (30W per port)
- Uplinks: 4 x 1G SFP fixed
- Default power supply: PWR-C1-715WAC-P (715W AC)
- Available PoE budget (single 715W PSU): 505W
- PoE budget with 350W secondary PSU: 855W
- PoE budget with 715W secondary PSU: 1220W
- PoE budget with 1100W secondary PSU: 1440W
- Switching capacity: 104 Gbps (424 Gbps with stacking)
- Forwarding rate: 77.38 Mpps (315.48 Mpps with stacking)
- Stacking: StackWise-320, up to 8 members
- Packet buffer: 16 MB
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routes: 16,000
- Flexible NetFlow: 64,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions, chassis only (H x W x D): 4.4 x 44.5 x 40.9 cm
- Weight with default power supply: 7.03 kg
- MTBF: 314,140 hours
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- AC input: 100-240 VAC, 47-63 Hz

FAQs

Q: Which licence tier does this switch use?
A: It ships with the Network Essentials perpetual licence. New orders also require a Cisco DNA Essentials term subscription of the same tier. Upgrade to Network Advantage is available using C9300L-LIC=.

Q: Can the default power supply run PoE+ on all 48 ports?
A: No. The default 715W supply gives 505W of PoE budget, which is not enough for 30W on every port. Full PoE+ on all ports needs two 1100W supplies, or one 1100W and one 715W.

Q: What can this switch be stacked with?
A: Only other Catalyst 9300L models at the same licence level, using C9300L-STACK-KIT or C9300L-STACK-KIT2 and compatible stack cables. It does not stack with modular-uplink Catalyst 9300 or 9300X models.

Q: Are the uplinks modular?
A: No. The four 1G SFP uplinks are fixed and there is no network module slot.

Q: Which power supplies are compatible?
A: PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P and PWR-C1-715WDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
