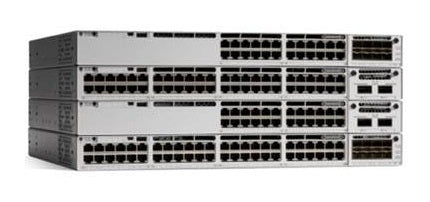

• Cisco C9300L-48P-4G-A silver switch stack with 48 PoE+ ports
1 1

Cisco

Cisco C9300L-48P-4G-A | Catalyst 9300L 48-Port PoE+ Switch, 4x 1G SFP, Network Advantage

C9300L-48P-4G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a 48-port Gigabit PoE+ stackable access switch with four fixed 1G SFP uplinks, built on the UADP 2.0 ASIC and running Cisco IOS XE. It suits enterprise campus and branch access layers, powering IP phones, wireless access points, cameras and IoT devices, and it works as the access foundation for SD-Access deployments or stackable closet switches managed on-premises or from the Meraki cloud.

This SKU pairs 48 x 10/100/1000 PoE+ copper ports with 4 x 1G SFP fixed uplinks and the Network Advantage licence tier. It is fitted with the PWR-C1-715WAC-P 715W AC power supply, which provides 505W of PoE, and a second supply can lift that to as much as 1440W. Switching capacity is 104 Gbps, or 424 Gbps when stacked, with a forwarding rate of 77.38 Mpps. StackWise-320 supports up to 8 members under a single management and control plane.

The -A suffix denotes Network Advantage, a perpetual tier that adds advanced routing (BGP, EIGRP, IS-IS, full OSPF), VRF, VXLAN, LISP and TrustSec segmentation, MPLS, automation, high availability and MACsec-256 on top of Network Essentials. C9300L models stack only with other C9300L and C9300LM units at the same licence level.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- UADP 2.0 ASIC with programmable pipeline running Cisco IOS XE
- Model-driven programmability with NETCONF, RESTCONF, gNMI, YANG and streaming telemetry
- x86 CPU for container-based application hosting, plus a USB 3.0 SSD slot
- MACsec-256 encryption, Encrypted Traffic Analytics and hardware-anchored Secure Boot
- Perpetual PoE and Fast PoE
- Flexible NetFlow and NBAR2 application visibility
- StackWise-320 stacking with a single management and control plane
- Supports SD-Access, VXLAN with BGP-EVPN and MPLS
- Dual redundant power supplies and three field-replaceable fans (N+1)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 PoE+ copper
- Uplinks: 4 x 1G fixed SFP
- Default power supply: PWR-C1-715WAC-P (715W AC)
- Available PoE with default PSU: 505W
- Available PoE with 715W second PSU: 1220W
- Available PoE with 1100W second PSU: 1440W
- Switching capacity: 104 Gbps (424 Gbps with stacking)
- Forwarding rate: 77.38 Mpps (315.48 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- QoS and ACL scale entries: 5,120 each
- Packet buffer: 16 MB
- DRAM and flash: 8 GB / 16 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions with default PSU (H x W x D): 4.4 x 44.5 x 44.9 cm
- Weight with default PSU: 7.03 kg
- MTBF: 314,140 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- Licence tier: Network Advantage

FAQs

Q: What does the -A suffix mean for licensing?
A: It indicates the Network Advantage tier, a perpetual licence that adds advanced routing, segmentation, MPLS, automation and MACsec-256 over Network Essentials. A matching Catalyst Advantage subscription is required at order time, and Smart Licensing through a Cisco Smart Account is used.

Q: How much PoE does this switch provide?
A: With the default 715W power supply it provides 505W of PoE. Adding a second supply raises this to 855W with a 350W unit, 1220W with a 715W unit, and up to 1440W with an 1100W unit. Full 30W PoE+ on all 48 ports needs two 1100W supplies.

Q: Which power supplies and fan module does it use?
A: Compatible supplies are PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-715WDC and PWR-C1-1100WAC-P. The fan module is FAN-T2.

Q: What can it be stacked with?
A: C9300L models stack only with other C9300L and C9300LM switches using C9300L-STACK-KIT or C9300L-STACK-KIT2, at the same licence level. They cannot stack with C9300 or C9300X modular uplink models, or with Catalyst 3850 and 3650.

Q: Are the uplinks upgradeable with a network module?
A: No. The four 1G SFP uplinks are fixed, and network modules do not apply to C9300L fixed-uplink models.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
