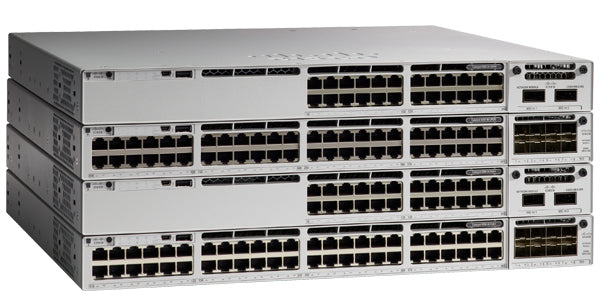

• Cisco Catalyst 9300L-24UXG-2Q-E switch stack with 24-port PoE+
1 1

Cisco

Cisco C9300L-24UXG-2Q-E | Catalyst 9300L 24-Port UPoE+ Switch, Network Essentials

C9300L-24UXG-2Q-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch built for campus and branch networks that need high-power PoE and fast uplinks. This Network Essentials model provides 24 Cisco UPOE ports, with 8 Multigigabit ports for Wi-Fi 6/6E access point aggregation, and suits IP phones, cameras, digital signage and IoT or smart-building endpoints. It can also serve as an SD-Access fabric edge.

The 24 downlink ports are split into 8 Multigigabit ports (100M/1G/2.5G/5G/10G) and 16 ports at 10M/100M/1G, with two fixed 40G QSFP uplinks. A single default 1100W AC supply provides 722W of PoE budget, rising to 1072W with a 350W secondary supply and 1440W with a 715W or 1100W secondary. Switching capacity is 352 Gbps, or 672 Gbps when stacked, with a forwarding rate of 261.90 Mpps. Memory is 8 GB DRAM and 16 GB flash. This SKU carries the perpetual Network Essentials base licence and runs Cisco IOS XE; the Advantage tier is a separate -A SKU.

Stacking uses StackWise-320 at 320 Gbps with up to 8 members, via the C9300L-STACK-KIT or C9300L-STACK-KIT2. It stacks only with other Catalyst 9300L models at the same licence level.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE (60W per port) and IEEE 802.3bt Type 3 on all 24 ports, with Perpetual PoE and Fast PoE
- Multigigabit Ethernet up to 10G over Cat 5e/6/6A cabling for Wi-Fi 6/6E access points
- Cisco IOS XE with NETCONF, RESTCONF, gNMI, YANG programmability and streaming telemetry
- Container-based application hosting with USB 3.0 SSD slot
- MACsec-256 and MACsec-128 encryption with hardware-anchored Secure Boot
- Resiliency through StackWise-320 stacking, cross-stack EtherChannel, NSF/SSO and Flexlink+
- Three field-replaceable fans with N+1 redundancy and dual redundant power supply bays
- Plug and Play, WebUI management and Meraki dashboard cloud management support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 Cisco UPOE ports
- Multigigabit ports: 8 x 100M/1G/2.5G/5G/10G
- Standard ports: 16 x 10M/100M/1G
- Uplinks: 2 x 40G fixed QSFP
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- PoE budget with single 1100W PSU: 722W
- PoE budget with 350W secondary PSU: 1072W
- PoE budget with 715W or 1100W secondary PSU: 1440W
- Switching capacity: 352 Gbps (672 Gbps with stacking)
- Forwarding rate: 261.90 Mpps (500.00 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- Memory: 8 GB DRAM, 16 GB flash
- Packet buffer: 16 MB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- ACL scale entries: 5,120
- QoS scale entries: 5,120
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D), chassis only: 4.4 x 44.5 x 40.9 cm
- Weight with default power supply: 7.26 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Licence: Network Essentials (-E)

FAQs

Q: What licence does this switch ship with?
A: It ships with the perpetual Network Essentials base licence (-E suffix). A Cisco Catalyst or DNA subscription of the same tier is required at time of order, and Smart Licensing is used through a Cisco Smart Account.

Q: What PoE budget does it provide?
A: With the single default 1100W AC power supply the available PoE budget is 722W. A 350W secondary supply raises it to 1072W, and a 715W or 1100W secondary supply raises it to 1440W.

Q: Which power supplies are compatible?
A: The default is the PWR-C1-1100WAC-P. Compatible secondary supplies are PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-715WDC and PWR-C1-1100WAC-P. Fixed-uplink 9300L models do not support Cisco StackPower.

Q: What can it be stacked with?
A: It stacks with other Catalyst 9300L models at the same licence level using StackWise-320, via the C9300L-STACK-KIT or C9300L-STACK-KIT2 and STACK-T3 cables. It cannot stack with modular-uplink C9300 or C9300X models.

Q: How does it differ from the other C9300L-24UXG variants?
A: This model has two fixed 40G QSFP uplinks and Network Essentials licensing. The -4X variant has 4x 10G SFP+ uplinks, and the -A variant carries Network Advantage.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
