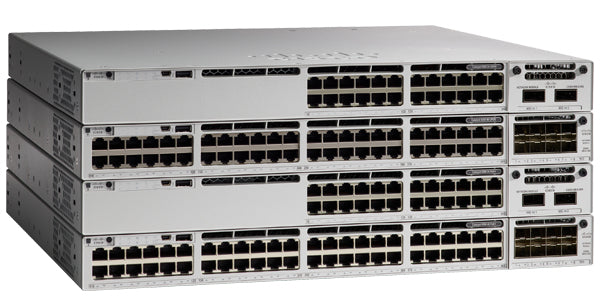

• Cisco Catalyst 9300L-24UXG-2Q-A switch stack with 24 mGig PoE ports
1 1

Cisco

Cisco C9300L-24UXG-2Q-A | Catalyst 9300L 24-Port UPOE Switch, 2x 40G, Network Advantage

C9300L-24UXG-2Q-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch for campus and branch networks where UPOE-powered devices, Wi-Fi 6/6E access points and Multigigabit endpoints are deployed. This Network Advantage model suits SD-Access fabrics and stackable access layers with 40G uplinks to the distribution or core layer.

It provides 24 Cisco UPOE ports: 8 Multigigabit ports supporting 100M/1G/2.5G/5G/10G and 16 ports at 10M/100M/1G. Two fixed 40G QSFP+ uplinks connect upstream. The default 1100W AC power supply delivers 722W of available PoE, and a second supply can lift the PoE budget to as much as 1440W. Switching capacity is 352 Gbps, rising to 672 Gbps in a stack, with a forwarding rate of 261.90 Mpps. Memory is 8 GB DRAM and 16 GB flash.

The -A suffix denotes the Network Advantage perpetual licence, which includes Network Essentials features. The 40G uplinks take Cisco QSFP+ optics. StackWise-320 stacking joins up to 8 Catalyst 9300L or 9300LM members at the same licence level using C9300L-STACK-KIT or C9300L-STACK-KIT2.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE up to 60W per port with Perpetual PoE and Fast PoE
- Multigigabit ports to support Wi-Fi 6/6E access points over existing Cat 5e/6 cabling
- Cisco UADP 2.0 ASIC with programmable pipeline
- Cisco IOS XE with NETCONF, RESTCONF, gNMI, YANG, model-driven telemetry and container application hosting
- Security including MACsec-256, Secure Boot and Trust Anchor module
- StackWise-320 stacking with NSF/SSO resiliency
- Network Advantage adds BGP, EIGRP, IS-IS, HSRP, VRF, VXLAN, LISP, TrustSec/SGT and MPLS
- SD-Access foundation with Catalyst Center and Meraki dashboard management options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24x Cisco UPOE, 8x Multigigabit (100M/1G/2.5G/5G/10G) + 16x 1G (10M/100M/1G)
- Uplinks: 2x 40G fixed QSFP+
- Licence: Network Advantage perpetual
- Default power supply: PWR-C1-1100WAC-P, 1100W AC
- Available PoE: 722W with single 1100W PSU
- Available PoE with 350W secondary PSU: 1072W
- Available PoE with 715W or 1100W secondary PSU: 1440W
- Switching capacity: 352 Gbps (672 Gbps with stacking)
- Forwarding rate: 261.90 Mpps (500.00 Mpps with stacking)
- Stacking: StackWise-320, up to 8 members
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- QoS and ACL scale: 5,120 entries each
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D), chassis only: 4.4 x 44.5 x 40.9 cm
- Dimensions with 1100W power supply: 4.4 x 44.5 x 48.8 cm
- Weight with default power supply: 7.26 kg
- MTBF: 291,670 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% noncondensing
- AC input: 100-240 VAC, 47-63 Hz

FAQs

Q: Which licence does the -A SKU include?
A: The -A suffix means the Network Advantage perpetual licence, which includes all Network Essentials features. A Cisco Catalyst subscription term licence is also required with each new order, and licensing is managed through a Cisco Smart Account.

Q: How much PoE does this switch provide?
A: With the default 1100W AC power supply it provides 722W of available PoE. A second supply raises this to 1072W with a 350W unit, or up to 1440W with a 715W or 1100W unit.

Q: Can it stack with other Catalyst 9300 switches?
A: It stacks only with other Catalyst 9300L or 9300LM models at the same licence level, using C9300L-STACK-KIT or C9300L-STACK-KIT2. It cannot stack with modular-uplink C9300 or C9300X models.

Q: Are the 40G uplinks fixed or modular?
A: They are fixed. This model has no network module slot and uses two onboard 40G QSFP+ ports that take Cisco QSFP+ optics.

Q: Which ports support Multigigabit speeds?
A: Eight of the 24 ports support 100M, 1G, 2.5G, 5G and 10G. The other 16 ports run at 10M, 100M or 1G.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
