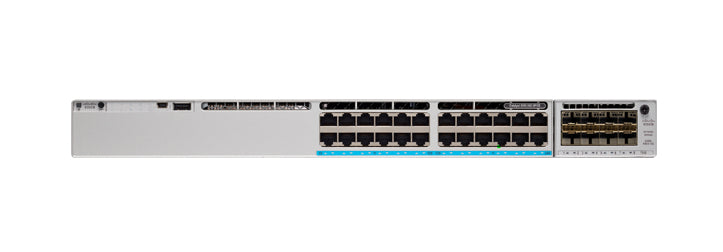

• Cisco Catalyst 9300L-24T-4X-E switch with 24x 1G ports and 4x 10G uplinks
1 1

Cisco

Cisco C9300L-24T-4X-E | Catalyst 9300L 24-Port Gigabit Switch, Network Essentials

C9300L-24T-4X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch built for campus and branch access-layer deployments where endpoints need data connectivity only. This model provides 24 Gigabit Ethernet copper ports and four fixed 10G/1G SFP+ uplinks, and runs Cisco IOS XE with the Network Essentials licence. It can be managed on-premises with Catalyst Center or through the Meraki dashboard.

The 24 ports are data-only 10/100/1000 copper, with no PoE. Switching capacity is 128 Gbps (448 Gbps when stacked) and the forwarding rate is 95.23 Mpps (333.33 Mpps when stacked). The unit carries 8 GB of DRAM and 16 GB of flash, and supports up to 32,000 MAC addresses. The default power supply is the 350W AC unit, PWR-C1-350WAC-P, and a second redundant supply can be fitted.

StackWise-320 stacking joins up to eight members into a single management and control plane, using the C9300L-STACK-KIT or C9300L-STACK-KIT2. It stacks with other Catalyst 9300L and 9300LM models at the same licence level. The fixed SFP+ uplinks accept Cisco SFP and SFP+ transceivers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UADP 2.0 ASIC with programmable pipeline and template-based allocation of Layer 2/3 forwarding, ACL and QoS entries
- Cisco IOS XE with NETCONF, RESTCONF, gNMI, YANG, streaming telemetry and on-box application hosting
- Hardware-anchored Secure Boot, Trust Anchor module, image signing and MACsec-256 encryption
- StackWise-320 stacking with a single control plane, cross-stack EtherChannel and NSF/SSO resiliency
- Software-Defined Access foundation with Cisco Catalyst Center management
- Cloud management option through the Meraki dashboard
- Energy Efficient Ethernet and per-port power management
- Field-replaceable fans and power supply with dual redundant PSU support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 data-only copper ports
- PoE: None (data-only model)
- Uplinks: 4 x 10G/1G SFP+ fixed uplinks
- Licence tier: Network Essentials
- Switching capacity: 128 Gbps (448 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (333.33 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- Default power supply: 350W AC (PWR-C1-350WAC-P)
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- Packet buffer: 16 MB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions with default power supply (H x W x D): 4.4 x 44.5 x 44.9 cm
- Weight with default power supply: 6.78 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 90% non-condensing
- MTBF: 387,700 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Network Essentials licence. A matching Catalyst Essentials subscription is ordered alongside it, and Cisco Smart Licensing applies. Advantage-only features need Network Advantage.

Q: Does this model provide PoE?
A: No. The C9300L-24T-4X-E is a data-only model with no PoE, so it suits endpoints that do not need power over Ethernet.

Q: What can it be stacked with?
A: It stacks with other Catalyst 9300L and 9300LM models at the same licence level, using the C9300L-STACK-KIT or C9300L-STACK-KIT2. It does not stack with C9300 or C9300X modular uplink models.

Q: Can the 10G SFP+ uplinks also run at 1G?
A: Yes. The four fixed uplinks are 10G/1G SFP+ ports and accept Cisco SFP and SFP+ transceivers.

Q: What power supply does it use?
A: The default supply is the 350W AC PWR-C1-350WAC-P, with 100-240 VAC auto-ranging input. A second redundant supply of 350W, 715W or 1100W can be fitted.
