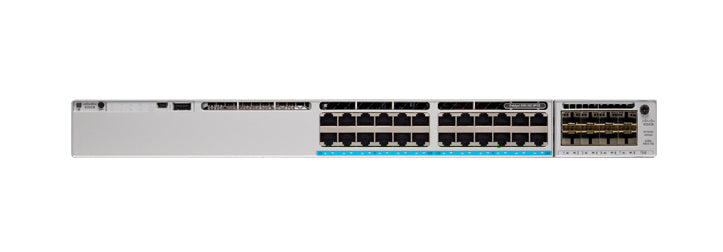

• Cisco Catalyst 9300L-24T-4X-A switch with 24x 1G ports and 4x 10G uplinks
1 1

Cisco

Cisco C9300L-24T-4X-A | Catalyst 9300L 24-Port Switch, 4x 10G SFP+, Network Advantage

C9300L-24T-4X-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch with 24 data-only 10/100/1000 copper ports and four fixed 10G/1G SFP+ uplinks. It suits campus and branch access layers where PoE is not required, with high-speed uplinks to distribution or core, and works as an SD-Access fabric edge or a small-to-midsize stackable deployment.

Switching capacity is 128 Gbps (448 Gbps when stacked) with a forwarding rate of 95.23 Mpps (333.33 Mpps stacked). It carries 8 GB of DRAM and 16 GB of flash, and supports 32,000 MAC addresses, 32,000 IPv4 routes and 4094 VLAN IDs. This 24-port data-only SKU ships with the perpetual Network Advantage licence, which includes the advanced routing and segmentation features of that tier, and runs Cisco IOS XE. The default 350W AC power supply is fitted, with support for a second redundant power supply.

StackWise-320 provides 320 Gbps of stacking bandwidth across up to 8 members using the optional C9300L-STACK-KIT or C9300L-STACK-KIT2. It stacks only with other Catalyst 9300L models at the same licence level, and can be managed through Cisco Catalyst Center, the Meraki dashboard, CLI or WebUI.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fixed 4x 10G/1G SFP+ uplinks for high-speed aggregation connectivity
- StackWise-320 stacking of up to 8 members as a single virtual switch
- Cisco IOS XE with NETCONF, RESTCONF, gNMI/YANG programmability and model-driven telemetry
- Network Advantage routing and segmentation: BGP, EIGRP, IS-IS, OSPF, VRF, VXLAN, LISP, TrustSec and MPLS
- MACsec-256 link encryption and hardware-anchored Secure Boot
- Encrypted Traffic Analytics, Flexible NetFlow and NBAR2 application visibility
- App hosting on an x86 CPU complex with optional external USB 3.0 SSD
- SD-Access foundation with Catalyst Center and Meraki dashboard management options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 data-only copper
- Uplinks: 4 x 10G/1G fixed SFP+
- PoE: None (data only)
- Licence tier: Network Advantage
- Switching capacity: 128 Gbps (448 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (333.33 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- Default power supply: PWR-C1-350WAC-P (350W AC)
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- Packet buffer: 16 MB
- Flexible NetFlow: 64,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions, chassis only (H x W x D): 4.4 x 44.5 x 40.9 cm
- Weight (with default power supply): 6.78 kg
- MTBF: 387,700 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% noncondensing

FAQs

Q: Does this switch need a subscription licence?
A: It ships with the perpetual Network Advantage licence. New orders also require a Cisco Catalyst or DNA subscription term licence of the matching Advantage tier, using Cisco Smart Licensing.

Q: Does it support PoE?
A: No. This is a data-only model with a 350W AC power supply and no PoE on the 24 copper ports.

Q: What can it be stacked with?
A: It stacks only with other Catalyst 9300L models at the same licence level, using StackWise-320 with the C9300L-STACK-KIT or C9300L-STACK-KIT2. It cannot stack with modular uplink Catalyst 9300 or 9300X models.

Q: Are the uplinks modular?
A: No. The four 10G/1G SFP+ uplinks are fixed, so there is no uplink network module option on this model.

Q: Can it use a redundant power supply?
A: Yes. It supports a second power supply, with 350W, 715W or 1100W options, and a field-replaceable FAN-T2 fan module with N+1 redundancy. StackPower is not supported on fixed uplink 9300L models.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
