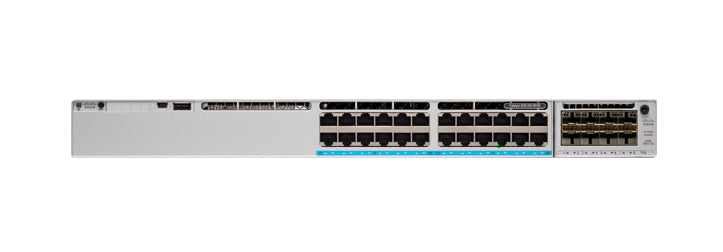

• Cisco Catalyst 9300L-24T-4G-E switch with 24x 1G ports and 4x SFP uplinks
1 1

Cisco

Cisco C9300L-24T-4G-E | Catalyst 9300L 24-Port Gigabit Switch, Network Essentials

C9300L-24T-4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch built for campus and branch access-layer deployments where endpoints need data connectivity only. This 24-port model suits small to mid-size sites, SD-Access fabric edge roles and hybrid or Meraki dashboard cloud-managed networks, running Cisco IOS XE.

It provides 24 x 10/100/1000 data-only copper ports with no PoE, plus 4 x 1G fixed SFP uplinks. Switching capacity is 56 Gbps (376 Gbps when stacked) with a forwarding rate of 41.66 Mpps (279.76 Mpps stacked). It carries 8 GB DRAM and 16 GB flash, supports 32,000 MAC addresses, 4094 VLAN IDs and 9198-byte jumbo frames. It includes the Network Essentials perpetual licence, and a Catalyst Essentials or Advantage subscription term licence is ordered alongside it under Cisco Smart Licensing. A 350W AC power supply (PWR-C1-350WAC-P) is the default, with a second bay for redundancy.

StackWise-320 stacking joins up to 8 Catalyst 9300L or 9300LM members using the C9300L-STACK-KIT or C9300L-STACK-KIT2. It cannot stack with modular-uplink Catalyst 9300 models. Power supply options include PWR-C1-715WAC-P and PWR-C1-1100WAC-P.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with NETCONF, RESTCONF, YANG, model-driven telemetry and container app hosting
- StackWise-320 stacking with a single management and control plane
- MACsec-128 and hardware-anchored Secure Boot with Trust Anchor module
- Layer 2 and routed access with RIP, EIGRP Stub, OSPF, PBR and PIM stub multicast
- 802.1X, CoPP, SXP, IP SLA responder and SSO
- Flexible NetFlow, SPAN/RSPAN and sampled NetFlow
- Plug and Play and Zero-Touch Provisioning for automated deployment
- Field-replaceable fans and dual redundant power supply bays

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 data-only copper
- Uplinks: 4 x 1G fixed SFP
- PoE: None (data-only model)
- Default power supply: 350W AC (PWR-C1-350WAC-P)
- Switching capacity: 56 Gbps (376 Gbps with stacking)
- Forwarding rate: 41.66 Mpps (279.76 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- DRAM / flash: 8 GB / 16 GB
- Packet buffer: 16 MB
- MAC addresses: 32,000
- IPv4 routes: 32,000 (24,000 direct, 8,000 indirect)
- IPv6 routing entries: 16,000
- QoS / ACL entries: 5,120 / 5,120
- Flexible NetFlow: 64,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions with power supply (H x W x D): 4.4 x 44.5 x 44.9 cm
- Weight with default power supply: 6.78 kg
- MTBF: 395,800 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Operating humidity: 5% to 90% non-condensing
- Acoustic noise: 44 dB typical, 47 dB max

FAQs

Q: Does this switch need a subscription licence?
A: It includes the Network Essentials perpetual licence (the -E suffix). A Catalyst Essentials or Advantage subscription term licence of 3, 5 or 7 years is ordered at the time of purchase, for example C9300L-DNX-E-24-3Y. Licences are managed through Cisco Smart Licensing.

Q: Does it provide PoE?
A: No. This is a data-only model, so none of the 24 ports supply PoE power.

Q: What power supply does it use and can I add a second?
A: The default is the 350W AC PWR-C1-350WAC-P. A second power supply can be added for redundancy, and PWR-C1-715WAC-P and PWR-C1-1100WAC-P are available as upgrades.

Q: What can I stack it with?
A: It stacks only with other Catalyst 9300L and 9300LM models at the same licence level, using StackWise-320 and the C9300L-STACK-KIT or C9300L-STACK-KIT2. It cannot stack with modular-uplink Catalyst 9300 or 9300X models.

Q: Can I upgrade to Network Advantage?
A: Yes. An upgrade to Network Advantage is available through C9300L-LIC=.
