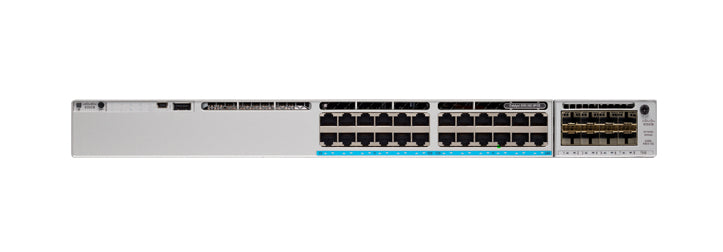

• Cisco Catalyst 9300L-24T-4G-A switch with 24x 1G ports and 4x SFP uplinks
1 1

Cisco

Cisco C9300L-24T-4G-A | Catalyst 9300L 24-Port Gigabit Switch, 4x 1G SFP, Network Advantage

C9300L-24T-4G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a fixed-uplink, stackable enterprise access switch built for campus and branch wiring closets where endpoints need data only and no PoE. This Network Advantage model suits SD-Access fabric edge roles and small to mid-size closets that need advanced routing and segmentation, managed on-premises through Catalyst Center or from the cloud through the Meraki dashboard.

It provides 24 x 10/100/1000 copper data ports and 4 x 1G SFP fixed uplinks, with 56 Gbps of switching capacity (376 Gbps when stacked) and a forwarding rate of 41.66 Mpps (279.76 Mpps when stacked). The default 350W AC power supply is auto-ranging, and the switch carries 16 MB of packet buffer, 8 GB DRAM and 16 GB flash. It runs Cisco IOS XE on the UADP 2.0 ASIC and ships with the Network Advantage perpetual licence, which unlocks BGP, EIGRP, IS-IS, full OSPF, VRF, VXLAN, LISP, TrustSec and MACsec-256.

StackWise-320 stacking supports up to 8 members and works with other C9300L and C9300LM models at the same licence level using the C9300L-STACK-KIT or C9300L-STACK-KIT2 and STACK-T3 cables. Uplinks are fixed 1G SFP, so there is no network module slot.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Network Advantage licence: BGP, EIGRP, IS-IS, full OSPF, HSRP, VRF, VXLAN, LISP, TrustSec and MPLS
- Cisco UADP 2.0 ASIC with programmable pipeline
- Cisco IOS XE with NETCONF, RESTCONF, gNMI and streaming telemetry
- Container-based application hosting with USB 3.0 SSD slot
- Foundation for Cisco SD-Access with Catalyst Center automation
- Hardware-anchored Secure Boot and signed images
- AES-256 MACsec and Encrypted Traffic Analytics
- Line-rate Flexible NetFlow and NBAR2 application visibility
- Cloud management via Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 copper data ports (no PoE)
- Uplinks: 4 x 1G SFP fixed
- Switching capacity: 56 Gbps (376 Gbps with stacking)
- Forwarding rate: 41.66 Mpps (279.76 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- Default power supply: PWR-C1-350WAC-P, 350W AC
- Packet buffer: 16 MB
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- ACL scale entries: 5,120
- QoS scale entries: 5,120
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Flexible NetFlow entries: 64,000 flows
- Dimensions, chassis only (H x W x D): 1.73 x 17.5 x 16.1 in (4.4 x 44.5 x 40.9 cm)
- Weight with default power supply: 14.93 lb (6.78 kg)
- MTBF: 395,800 hours
- Operating temperature: -5 to 45 C up to 1500 m; -5 to 40 C up to 3000 m
- Relative humidity: 5% to 90% noncondensing
- Mounting: 1U rack mount

FAQs

Q: Does this switch need a subscription licence?
A: It ships with the Network Advantage perpetual licence. A Cisco Catalyst or DNA subscription term licence of the same tier (Advantage) is required with new orders, in 3, 5 or 7 year terms. Cisco Smart Licensing applies.

Q: Does it provide PoE?
A: No. This is a data-only model with a 350W AC power supply, so it does not power PoE devices such as access points or phones.

Q: What can it be stacked with?
A: It stacks with other C9300L and C9300LM models at the same licence level using StackWise-320, the C9300L-STACK-KIT or C9300L-STACK-KIT2, and STACK-T3 cables. It cannot stack with modular-uplink C9300 or C9300X models or Catalyst 3850 and 3650 switches.

Q: Can the uplinks be changed?
A: No. The 4 x 1G SFP uplinks are fixed and there is no network module slot. Transceiver compatibility follows the Cisco transceiver module compatibility matrix.

Q: Which power supply options are available?
A: The default is the PWR-C1-350WAC-P. A second power supply can be added for redundancy, and PWR-C1-715WAC-P and PWR-C1-1100WAC-P are available as upgrades.

Q: How can it be managed?
A: It can be managed through Catalyst Center, the Meraki dashboard, the WebUI or the CLI.
