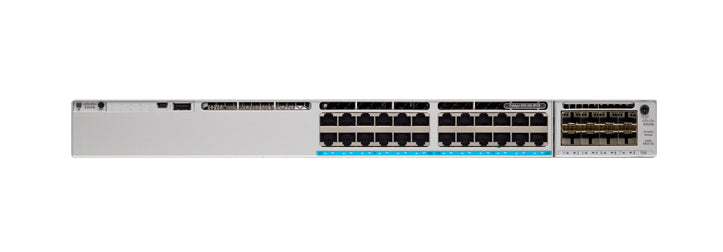

• Cisco Catalyst 9300L-24P-4X-E switch with 24 PoE+ ports and 4 SFP+ uplinks
1 1

Cisco

Cisco C9300L-24P-4X-E | Catalyst 9300L 24-Port PoE+ Switch, 4x 10G SFP+, Network Essentials

C9300L-24P-4X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch built for campus and branch deployments. This model pairs 24 PoE+ 10/100/1000 ports with four fixed 10G/1G SFP+ uplinks, making it well suited to powering IP phones, Wi-Fi access points, cameras and IoT endpoints at the access layer. It runs Cisco IOS XE on the UADP 2.0 ASIC and can serve as an SD-Access fabric edge or be migrated to Meraki dashboard cloud management.

The default 715W AC power supply provides 505W of PoE budget, rising to 720W (24 x 30W) when a second 350W, 715W or 1100W supply is fitted. Switching capacity is 128 Gbps, or 448 Gbps when stacked, with a forwarding rate of 95.23 Mpps (333.33 Mpps stacked). It carries 32,000 MAC addresses, a 16 MB packet buffer and 4094 VLAN IDs. It ships with the perpetual Network Essentials licence, covering foundational Layer 2 and Layer 3 switching, automation, visibility and security. Smart Licensing applies, and a 90-day evaluation licence is available.

Stacking uses StackWise-320 with the optional C9300L-STACK-KIT or C9300L-STACK-KIT2, joining up to 8 members. It stacks only with other Catalyst 9300L models, not with modular-uplink C9300 or C9300X switches. Uplinks accept SFP+ and SFP transceivers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with model-driven programmability including NETCONF, RESTCONF, gNMI and YANG
- UADP 2.0 ASIC with programmable pipeline
- Perpetual PoE and Fast PoE keep powered devices running through switch reloads
- Dual redundant field-replaceable power supplies and three field-replaceable fans
- MACsec-128 with Trust Anchor secure boot, image signing and SUDI for Plug and Play
- SD-Access foundation with Cisco Catalyst Center management
- Can be migrated to Meraki dashboard cloud management
- Application hosting with an x86 CPU complex and USB 3.0 SSD slot

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 PoE+
- Uplink ports: 4 x fixed 10G/1G SFP+
- Default power supply: 715W AC (PWR-C1-715WAC-P)
- PoE budget with default PSU: 505W
- PoE budget with second 350W, 715W or 1100W PSU: 720W (24 x 30W)
- Switching capacity: 128 Gbps (448 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (333.33 Mpps with stacking)
- Stacking: StackWise-320, up to 8 members, optional C9300L-STACK-KIT or C9300L-STACK-KIT2
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- ACL scale entries: 5,120
- QoS scale entries: 5,120
- Packet buffer: 16 MB
- DRAM / Flash: 8 GB / 16 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Flexible NetFlow: 64,000 flows
- Dimensions with default PSU (H x W x D): 4.4 x 44.5 x 44.9 cm
- Weight with default power supply: 6.81 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- MTBF: 340,710 hours

FAQs

Q: Which licence does this switch use?
A: It uses the perpetual Network Essentials licence, indicated by the -E suffix. Smart Licensing applies and a 90-day evaluation licence is available. Network Advantage is offered as a separate -A SKU.

Q: How much PoE power does it provide?
A: The default 715W AC supply gives 505W of PoE budget. Adding a second 350W, 715W or 1100W supply raises this to 720W, which covers all 24 ports at 30W each.

Q: What can it be stacked with?
A: It stacks with other Catalyst 9300L models using StackWise-320 and the optional C9300L-STACK-KIT or C9300L-STACK-KIT2. It cannot stack with modular-uplink C9300 or C9300X switches.

Q: What do the uplink ports accept?
A: The four fixed uplinks are SFP+ ports that accept 10G SFP+ and 1G SFP transceivers, so you can mix speeds across uplinks.

Q: Does it support StackPower?
A: No. Cisco StackPower is not supported on Catalyst 9300L models, although dual power supply redundancy within a single switch is supported.
