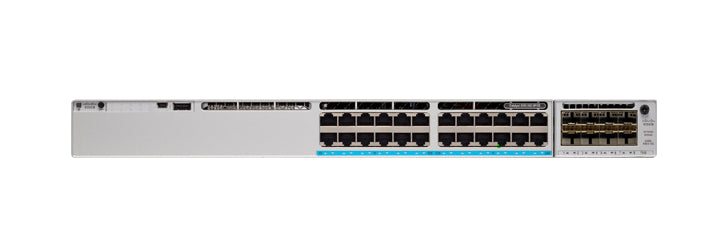

• Cisco C9300L-24P-4X-A switch with 24x 1GbE PoE+ ports and 4x 10GbE uplinks
1 1

Cisco

Cisco C9300L-24P-4X-A | Catalyst 9300L 24-Port PoE+ Switch, 505W, Network Advantage

C9300L-24P-4X-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable, fixed-uplink enterprise access switch built for campus and branch wiring closets. It suits deployments that need PoE+ for IP phones, Wi-Fi access points and IoT devices or cameras, along with 10G uplinks, SD-Access fabrics and secure segmented networks.

This model has 24 x 10/100/1000 PoE+ ports and four fixed 10G/1G SFP+ uplinks. It has a 505W PoE budget with the default 715W AC power supply, rising to 720W with a second power supply. Switching capacity is 128 Gbps, or 448 Gbps with stacking, and forwarding rate is 95.23 Mpps, or 333.33 Mpps with stacking. It includes the perpetual Network Advantage licence, which adds BGP, EIGRP, IS-IS, VRF, VXLAN, LISP, TrustSec and MACsec-256, and it runs Cisco IOS XE.

It stacks with other Catalyst 9300L models at the same licence level using the C9300L-STACK-KIT or C9300L-STACK-KIT2, with StackWise-320 supporting up to 8 members. The uplinks accept SFP and SFP+ optics, and it supports PWR-C1-350WAC-P, PWR-C1-715WAC-P and PWR-C1-1100WAC-P power supplies.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fixed 4x 10G/1G SFP+ uplinks for flexible 1G or 10G upstream connectivity
- PoE+ (IEEE 802.3at) on all 24 ports, with Perpetual PoE and Fast PoE
- StackWise-320 stacking with up to 8 switches managed as a single virtual switch
- Cisco IOS XE with NETCONF, RESTCONF, gNMI, YANG, model-driven telemetry, on-box Python and container application hosting
- Network Advantage adds BGP, EIGRP, IS-IS, HSRP, VRF, VXLAN, LISP, TrustSec/SGT, MPLS and MACsec-256
- Foundation for Cisco SD-Access policy-based automation and segmentation
- Trust Anchor security with image signing, Secure Boot and SUDI
- Encrypted Traffic Analytics, MACsec encryption and Flexible NetFlow

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 PoE+
- Uplinks: 4 x 10G/1G SFP+ fixed
- Default power supply: 715W AC (PWR-C1-715WAC-P)
- PoE budget: 505W with a single 715W PSU, up to 720W with a second PSU
- Switching capacity: 128 Gbps (448 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (333.33 Mpps with stacking)
- Stacking: StackWise-320, up to 8 members, requires C9300L-STACK-KIT or C9300L-STACK-KIT2
- Licence tier: Network Advantage
- Memory: 8 GB DRAM, 16 GB flash
- Packet buffer: 16 MB
- MAC addresses: 32,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Flexible NetFlow: 64,000 flows
- Dimensions, chassis only (H x W x D): 4.4 x 44.5 x 40.9 cm
- Weight with default power supply: 6.81 kg
- Form factor: 1 RU
- MTBF: 340,710 hours
- AC input: 100-240 VAC, 47-63 Hz
- Operating temperature: -5 to +45 C up to 1,500 m; -5 to +40 C up to 3,000 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing

FAQs

Q: Which licence does this SKU include?
A: The -A suffix means it includes the perpetual Network Advantage licence. Cisco also requires a matching Catalyst or DNA Advantage subscription term licence (3, 5 or 7 years) when ordering, managed through Smart Licensing.

Q: How much PoE power does it provide?
A: The default 715W power supply gives a 505W PoE budget. Adding a 350W, 715W or 1100W secondary power supply raises this to 720W. Powering all 24 ports at the full 30W PoE+ rating needs one 1100W or two 715W power supplies.

Q: Can it stack with other Catalyst 9300 switches?
A: It stacks only with other Catalyst 9300L and 9300LM models at the same licence level, using C9300L-STACK-KIT or C9300L-STACK-KIT2. It cannot stack with modular-uplink Catalyst 9300 or 9300X models, and it does not support StackPower.

Q: Which power supplies and fan module does it use?
A: It supports PWR-C1-350WAC-P, PWR-C1-715WAC-P and PWR-C1-1100WAC-P power supplies, plus the 715W DC power supply. The fan module is FAN-T2.

Q: What can I connect to the uplink ports?
A: The four uplinks accept SFP and SFP+ optics for 1G or 10G links, with transceiver support listed in Cisco's compatibility matrix.
