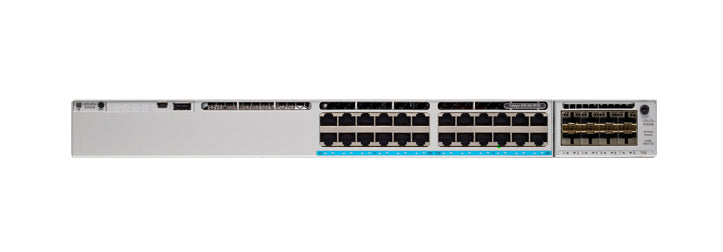

• Cisco C9300L-24P-4G-E switch with 24x 1GbE PoE+ ports and 4x SFP uplinks
1 1

Cisco

Cisco C9300L-24P-4G-E | Catalyst 9300L 24-Port PoE+ Switch, 4x 1G SFP, Network Essentials

C9300L-24P-4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L 24-port PoE+ switch is a stackable enterprise access switch for campus and branch networks that need to power IP phones, wireless access points and cameras. It runs Cisco IOS XE on the UADP 2.0 ASIC, supports SD-Access fabric edge deployments and can be managed on-premises, virtually or from the Meraki dashboard.

This SKU provides 24 x 10/100/1000 PoE+ ports and four fixed 1G SFP uplinks with the perpetual Network Essentials licence. Switching capacity is 56 Gbps (376 Gbps in a stack) with a forwarding rate of 41.66 Mpps. The default 715W AC power supply delivers 505W of PoE, and adding a second power supply raises the budget to the 720W maximum for 24 ports at 30W each. StackWise-320 stacking supports up to 8 members, with 8 GB DRAM, 16 GB flash and a 16 MB packet buffer.

The four 1G SFP uplink ports are fixed and take Cisco SFP optics. This model stacks only with other C9300L and C9300LM switches at the same licence level, using the C9300L-STACK-KIT or KIT2 with STACK-T3 or STACK-T3A cables. Smart Licensing is used, and a Cisco DNA subscription term is selected at the time of order.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UADP 2.0 ASIC with programmable pipeline and template-based allocation of Layer 2/3, ACL and QoS entries
- StackWise-320 stacking with up to 8 members
- Dual redundant power supplies and three field-replaceable fans (N+1)
- Perpetual PoE and Fast PoE keep endpoints powered through reloads and speed recovery after power restoration
- Cisco IOS XE with NETCONF, RESTCONF, gNMI/YANG programmability, streaming telemetry and on-box Python
- Application hosting in containers using the USB 3.0 SSD slot
- MACsec-128/256 link encryption and Cisco Trust Anchor secure boot
- SD-Access and Catalyst Center support, with optional management from the Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 PoE+
- Uplink ports: 4 x 1G SFP, fixed
- Licence: Network Essentials (perpetual)
- Default power supply: PWR-C1-715WAC-P, 715W AC
- PoE budget with default power supply: 505W
- PoE budget with a second power supply (350W, 715W or 1100W): 720W maximum
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- Switching capacity: 56 Gbps (376 Gbps in a stack)
- Forwarding rate: 41.66 Mpps (279.76 Mpps in a stack)
- Packet buffer: 16 MB
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- ACL scale entries: 5,120
- QoS scale entries: 5,120
- Flexible NetFlow: 64,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions, chassis only (H x W x D): 4.4 x 44.5 x 40.9 cm (1RU)
- Weight with default power supply: 6.81 kg
- MTBF: 346,940 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Software: Cisco IOS XE 16.11.1b or later

FAQs

Q: Does this switch need a subscription as well as the licence?
A: This SKU includes the perpetual Network Essentials licence. A Cisco Catalyst/DNA Essentials or Advantage subscription term of 3, 5 or 7 years is selected at the time of order, and Network Essentials supports either subscription tier. Smart Licensing is used, with a 90-day evaluation available.

Q: How much PoE can it deliver?
A: The default 715W AC power supply provides 505W of PoE. Fitting a second 350W, 715W or 1100W supply raises the available budget to 720W, enough for 24 ports at 30W each.

Q: Which power supplies does it use?
A: The default is the PWR-C1-715WAC-P. Other options are the PWR-C1-350WAC-P, PWR-C1-1100WAC-P and the PWR-C1-715WDC DC supply.

Q: What can it be stacked with?
A: It stacks with other C9300L and C9300LM models at the same licence level using the C9300L-STACK-KIT or KIT2 with STACK-T3 or STACK-T3A cables, up to 8 members. It does not stack with modular-uplink Catalyst 9300 or 9300X models.

Q: Can the uplink ports be changed to 10G?
A: No. The four 1G SFP uplinks are fixed, and this model does not use C9300-NM or C9300X-NM network modules. For 10G uplinks, choose a modular-uplink Catalyst 9300 model.

Q: Which software version does it require?
A: It requires Cisco IOS XE 16.11.1b or later.
