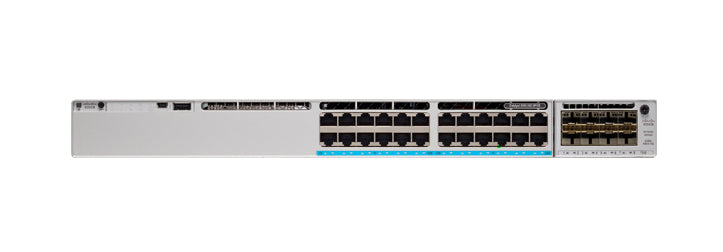

• Cisco C9300L-24P-4G-A 24-port PoE+ switch with Gigabit Ethernet ports
1 1

Cisco

Cisco C9300L-24P-4G-A | Catalyst 9300L 24-Port PoE+ Switch, 4x 1G SFP, Network Advantage

C9300L-24P-4G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch for campus and branch networks. This model provides 24 PoE+ 10/100/1000 ports to power IP phones, Wi-Fi access points and other PoE+ endpoints, and it can be deployed in an SD-Access fabric.

It has four fixed 1G SFP uplinks and is built on the UADP 2.0 ASIC, delivering 56 Gbps of switching capacity and a forwarding rate of 41.66 Mpps. With StackWise-320 stacking, capacity rises to 376 Gbps across up to 8 members. Available PoE is 505W with a single 715W power supply and up to 720W when a secondary supply is fitted. This SKU carries the Network Advantage tier, which adds routing and fabric features including BGP, EIGRP, IS-IS, VRF, VXLAN, LISP, MPLS and MACsec-256, and distinguishes it from Network Essentials variants of the same hardware.

The fixed uplinks accept SFP optics. StackWise-320 stacking uses the optional C9300L-STACK-KIT or C9300L-STACK-KIT2 and works only with other Catalyst 9300L models. Compatible power supplies include PWR-C1-350WAC-P, PWR-C1-715WAC-P and PWR-C1-1100WAC-P.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with model-driven programmability including NETCONF, RESTCONF, gNMI and YANG
- UADP 2.0 ASIC with a programmable pipeline and flexible Layer 2/3, ACL and QoS table allocation
- Network Advantage adds BGP, EIGRP, IS-IS, HSRP, VRF, VXLAN, LISP, MPLS and TrustSec
- NSF/SSO high availability for resilient routing
- MACsec-256 hardware encryption, Encrypted Traffic Analytics, Secure Boot and image signing
- Perpetual PoE and Fast PoE keep powered devices running through a switch reload
- Container-based application hosting with optional external USB 3.0 SSD
- Hardware Flexible NetFlow and NBAR2 application recognition
- Supports SD-Access and management from Cisco Catalyst Center

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 PoE+
- Uplinks: 4 x 1G SFP fixed
- Licence tier: Network Advantage
- Default power supply: 715W AC (PWR-C1-715WAC-P)
- Available PoE power: 505W with a single 715W PSU
- Available PoE power with secondary PSU: up to 720W
- Switching capacity: 56 Gbps (376 Gbps with stacking)
- Forwarding rate: 41.66 Mpps (279.76 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- QoS and ACL scale entries: 5,120 each
- Packet buffer: 16 MB
- DRAM / Flash: 8 GB / 16 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D), chassis only: 4.4 x 44.5 x 40.9 cm (1RU)
- Weight with default power supply: 6.81 kg
- Operating temperature: -5 to 45 C up to 1500 m
- MTBF: 346,940 hours
- Safety and EMC: UL 60950-1, FCC Part 15 Class A, EN 55032 Class A

FAQs

Q: Does this switch need a separate licence?
A: This SKU includes the perpetual Network Advantage licence. A Cisco DNA Advantage term licence of the same tier must also be ordered at purchase. Smart Licensing is used, and 90-day evaluation licences are available.

Q: How much PoE power can it deliver?
A: With a single 715W power supply, 505W is available for PoE. Adding a secondary 350W, 715W or 1100W supply raises this to 720W, which is the maximum draw of 24 ports at 30W.

Q: Can I stack it with other Catalyst 9300 switches?
A: It stacks with other Catalyst 9300L models using StackWise-320 and the optional C9300L-STACK-KIT or C9300L-STACK-KIT2, with up to 8 members. It does not stack with modular-uplink C9300 or C9300X models.

Q: What can I connect to the uplink ports?
A: The four fixed uplinks are 1G SFP ports. Refer to the Cisco transceiver compatibility matrix for supported optics.

Q: How does this differ from other 24-port Catalyst 9300L variants?
A: The hardware is shared across the range. This SKU has 24 PoE+ ports, four 1G SFP fixed uplinks and the Network Advantage licence tier, rather than Network Essentials.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
