• Cisco C9300-48UXM-E 48-port Catalyst 9300 switch with mGig ports
1 1

Cisco

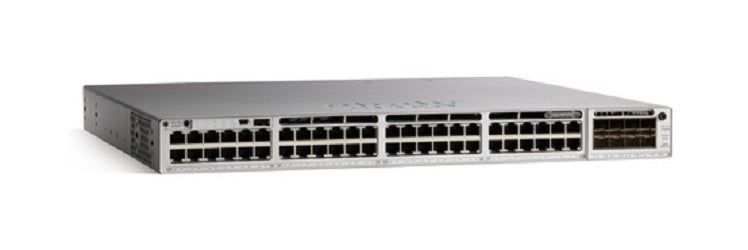

Cisco C9300-48UXM-E | Catalyst 9300 48-Port Multigigabit Switch, 490W UPOE, Modular Uplinks

C9300-48UXM-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9300-48UXM-E is a stackable enterprise access switch optimized for high-density Wi-Fi 6/6E deployments and IoT environments. It features 36 ports of 2.5G plus 12 multigigabit ports supporting up to 10G speeds, with UPOE delivering up to 60W per port. With modular uplink options, 480 Gbps StackWise stacking bandwidth, and Network Essentials software, this switch provides flexible, scalable connectivity for modern campus networks.

Features

StackWise-480 technology for high-density stacking up to 480 Gbps bandwidth
- StackPower technology for resilient power distribution across stack members
- Modular uplink architecture with field-replaceable network modules
- UPOE (Universal PoE) delivering up to 60W per port for high-power endpoints
- Perpetual PoE and Fast PoE support for uninterrupted endpoint power
- Optimized for 802.11ac Wave 2 and Wi-Fi 6/6E high-density wireless deployments
- x86 CPU architecture with container support for third-party applications
- Cisco UADP 2.0 ASIC with programmable pipeline capabilities
- Software-Defined Access (SD-Access) ready architecture
- Flexible NetFlow (FNF) for advanced traffic analysis
- Advanced QoS with Weighted Random Early Detection (WRED)
- Layer 2 features: VLANs, STP, RSTP, MSTP, 802.1Q, Q-in-Q
- Layer 3 features: Static routing, RIP (Network Essentials)
- Security: 802.1X authentication, ACLs, Private VLANs, Control Plane Protection
- Redundancy: Cross-stack EtherChannel, dual power supply support
- USB 3.0 external SSD storage slot for system images
- Integrated Wireshark for packet analysis
- ENERGY STAR certified models available

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48 total ports: 36 x 2.5GBase-T + 12 x Multigigabit (100M/1G/2.5G/5G/10G)
- PoE Type: UPOE (Universal Power over Ethernet) - up to 60W per port
- PoE Budget: 490W with default power supply (expandable to 1590W with secondary PSU)
- Modular uplink options supporting 1G, 10G, 25G, and 40G network modules
- Switching Capacity: 580 Gbps
- Forwarding Rate: 431.54 Mpps
- Stacking Bandwidth: 480 Gbps (StackWise-480 technology)
- Maximum Stack Size: Up to 8 switches
- Memory: 8 GB DRAM, 16 GB Flash
- MAC Address Table: 32,000 entries
- Form Factor: 1U rack-mountable
- Dimensions: 44.5 x 48.9 x 4.4 cm (1.73 x 17.5 x 22.2 inches)
- Weight: 20.5 lb (9.34 kg)
- Power Consumption: Maximum 275W (switch only)
- Default Power Supply: PWR-C1-1100WAC (optional Platinum-rated PWR-C1-1100WAC-P available)
- Operating Temperature: 0°C to 45°C
- Software License: Network Essentials (included)

FAQs

Q: What is the difference between the standard ports and multigigabit ports on this switch?
A: The C9300-48UXM-E has 36 ports that support 100M/1G/2.5G speeds, while 12 ports are true multigigabit capable of 100M/1G/2.5G/5G/10G speeds. All 48 ports support UPOE for high-power devices.

Q: What uplink modules are compatible with this switch?
A: The C9300-48UXM-E supports various network modules including C9300-NM-4G (4x1G), C9300-NM-8X (8x10G), C9300-NM-2Q (2x40G), C9300-NM-4M (4xmGig), and C9300-NM-2T (2x25G SFP28). The switch ships without a network module installed.

Q: How much PoE power can this switch deliver?
A: With the default 1100W power supply, the switch provides 490W PoE budget. UPOE supports up to 60W per port for demanding devices like Wi-Fi 6 access points, smart displays, and IoT sensors. Adding a secondary power supply can increase total PoE to 1590W.

Q: Can this switch be stacked with other Catalyst 9300 models?
A: Yes, the C9300-48UXM-E supports StackWise-480 technology and can be stacked with other C9300 and C9300X modular uplink models at 480 Gbps bandwidth. Up to 8 switches can form a single stack. It cannot stack with C9300L fixed-uplink models.

Q: What are the key capabilities of the Network Essentials license?
A: Network Essentials provides Layer 2 switching features, basic Layer 3 routing (static routing, RIP), security features like 802.1X authentication, QoS, ACLs, and network management via CLI, web GUI, and SNMP. Upgrade to Network Advantage is available for advanced Layer 3 routing and enterprise features.
