• Cisco C9300-48UN-E Catalyst 9300 switch, black and silver
1 1

Cisco

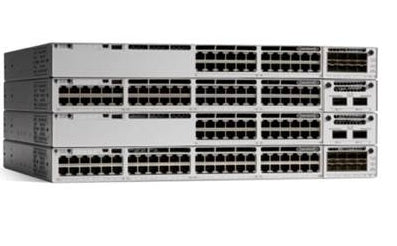

Cisco C9300-48UN-E | Catalyst 9300 48-Port 5G UPOE Switch, Network Essentials

C9300-48UN-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300 C9300-48UN-E is a 1RU stackable enterprise access switch built for campus and branch networks that need high-speed Multigigabit and UPOE. It suits Wi-Fi 6/6E access points, IP phones, cameras, digital signage and IoT/OT endpoints, and it forms a foundation for SD-Access fabrics.

It provides 48 Multigigabit RJ-45 ports running at 5G, 2.5G, 1G or 100M, each with Cisco UPOE at up to 60W per port. Uplinks are modular, using Catalyst 9300 network modules. The default 1100W AC power supply gives 645W of available PoE, and a 1900W primary supply raises that to 1445W. Switching capacity is 640 Gbps (1120 Gbps when stacked), with a forwarding rate of 476.19 Mpps. This SKU ships with the Network Essentials licence, which suits Layer 2 and core Layer 3 access deployments.

It supports C9300 network modules C9300-NM-4G, -4M, -8X, -2Q and -2Y. StackWise-480 stacking joins up to 8 members using STACK-T1 cables, and StackPower pools power across the stack. It runs Cisco IOS XE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE at 60W per port with Perpetual PoE and Fast PoE
- Multigigabit 5G ports suited to Wi-Fi 6/6E access points over Cat 5e/6/6A cabling
- StackWise-480 stacking and Cisco StackPower for power redundancy
- Cisco IOS XE with NETCONF, RESTCONF, gNMI/YANG programmability and model-driven telemetry
- Hardware Secure Boot, Trust Anchor module and MACsec-128
- SD-Access foundation with Cisco Catalyst Center support
- Application hosting through a USB 3.0 SSD slot
- Redundant, field-replaceable power supplies and fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 5G Multigigabit RJ-45 (5G/2.5G/1G/100M)
- PoE: Cisco UPOE, up to 60W per port
- Uplinks: Modular, Catalyst 9300 network modules
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- Available PoE with default 1100W PSU: 645W
- Available PoE with 1900W primary PSU: 1445W
- Switching capacity: 640 Gbps (1120 Gbps with stacking)
- Forwarding rate: 476.19 Mpps (833.33 Mpps with stacking)
- Stacking: StackWise-480, up to 8 members
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Packet buffer: 32 MB
- Dimensions, chassis only (H x W x D): 4.4 x 44.5 x 48.5 cm
- Weight with default power supply: 9.09 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Licence: Network Essentials

FAQs

Q: Which licence does the C9300-48UN-E use?
A: It ships with the Network Essentials perpetual licence. A Cisco Catalyst/DNA subscription of the same tier is required at order. Network Advantage features such as BGP, VRF, VXLAN and MPLS are not included in Essentials.

Q: How much PoE does it deliver?
A: With the default 1100W AC power supply, 645W of PoE is available. A 1900W primary supply gives 1445W, and a second supply can be added for more budget.

Q: Which uplink modules does it support?
A: It supports the Catalyst 9300 network modules C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q and C9300-NM-2Y. C9300X network modules are not supported.

Q: Can it be stacked with other Catalyst 9300 switches?
A: Yes. It stacks with other C9300 and C9300X models over StackWise-480, up to 8 members, using STACK-T1 cables at the same licence level.

Q: What is the difference between this and the Network Advantage version?
A: The -E SKU ships with Network Essentials. The -A SKU adds Network Advantage features such as BGP, EIGRP, VRF, VXLAN, LISP, SGT and MPLS.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
