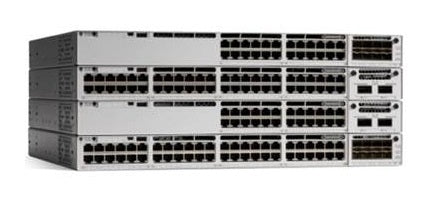

• Cisco C9300-48T-E switch stack with 48x 1G RJ45 ports
1 1

Cisco

Cisco C9300-48T-E | Catalyst 9300 48-Port Gigabit Switch, Network Essentials

C9300-48T-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300 C9300-48T-E is a stackable enterprise access switch for campus and branch networks that need data-only Gigabit connectivity. It suits standalone deployments or stacks at the access layer, and forms a foundation for Software-Defined Access fabrics, hybrid workplaces, IoT and on-box application hosting at the edge.

It provides 48 x 10/100/1000 copper ports with no PoE, plus a modular uplink slot for optional C9300 network modules. Switching capacity is 256 Gbps (736 Gbps when stacked), with a forwarding rate of 190.47 Mpps (547.62 Mpps when stacked). StackWise-480 delivers 480 Gbps stacking across up to 8 members. It ships with the perpetual Network Essentials licence, covering foundational Layer 2 and Layer 3 routed access, MACsec-128 and telemetry, and is fitted with a 350W AC power supply, with dual redundant power supported.

Uplink options include the C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q and C9300-NM-2Y network modules. It stacks with other Catalyst 9300 and 9300X models at the same licence level using STACK-T1 cables, and runs Cisco IOS XE managed through Cisco Catalyst Center or the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stackable up to 8 members with StackWise-480 and StackPower support
- Cisco IOS XE with NETCONF, RESTCONF, YANG, gNMI and streaming telemetry
- On-box application hosting with USB 3.0 SSD slot and USB 2.0 slot
- MACsec-128 encryption with hardware-anchored Secure Boot and Trust Anchor technology
- Encrypted Traffic Analytics, Flexible NetFlow and NBAR2 application visibility
- SD-Access foundation with Plug and Play and Zero-Touch Provisioning
- Cross-stack EtherChannel, NSF/SSO, Flexlink+ and PVRST+/MSTP for high availability
- Three field-replaceable fans with N+1 redundancy

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: C9300-48T-E
- Downlink ports: 48 x 10/100/1000 copper (data only)
- PoE: None (data only)
- Uplinks: Modular, optional C9300 network modules (4x1G, 4xMultigigabit, 8x10G, 2x25G, 2x40G)
- Stacking: StackWise-480, 480 Gbps, up to 8 members
- Switching capacity: 256 Gbps (736 Gbps with stacking)
- Forwarding rate: 190.47 Mpps (547.62 Mpps with stacking)
- Default power supply: 350W AC (PWR-C1-350WAC-P)
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- Packet buffer: 16 MB
- Flexible NetFlow entries: 64,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- QoS and ACL scale: 5,120 entries each
- Dimensions (H x W x D), chassis only: 4.4 x 44.5 x 40.9 cm
- Weight (with default power supply): 7.45 kg
- MTBF: 305,870 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- Power consumption: 81.5 W to 102.3 W (115 VAC, no uplink module)

FAQs

Q: Which licence does the C9300-48T-E include?
A: It ships with the perpetual Network Essentials licence, covering foundational Layer 2 and Layer 3 routed access, MACsec-128 and telemetry. A Cisco Catalyst or DNA subscription term (Essentials or Advantage, 3, 5 or 7 years) is also required at time of order, and stacking requires the same licence level across members.

Q: Does this switch provide PoE?
A: No. The C9300-48T-E is a data-only model with 48 x 10/100/1000 copper ports and no PoE budget. It ships with a 350W AC power supply, with 715W and 1100W options available.

Q: Which uplink modules work with it?
A: It accepts the C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q and C9300-NM-2Y network modules, and Catalyst 3850 network modules are also supported. C9300X modules are not supported.

Q: What can it be stacked with?
A: It stacks with other Catalyst 9300 and 9300X models at StackWise-480 speeds, using STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M cables, provided the licence level matches. It cannot stack with C9300L, C9300L-M, higher-scale C9300 models (UB/UXB) or Catalyst 3850 and 3650 switches.

Q: Does it support redundant power?
A: Yes. A second power supply can be added for dual redundant operation, and it also supports Cisco StackPower. The three field-replaceable fans provide N+1 redundancy.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
