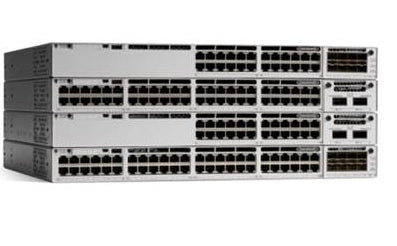

Cisco C9300-48T-A | Catalyst 9300 48-Port Gigabit Data Switch, Network Advantage

C9300-48T-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300 C9300-48T-A is a stackable enterprise access switch for campus and branch wiring closets that serve data-only endpoints. It has 48 10/100/1000 RJ-45 ports with no PoE, a modular uplink slot and a 1RU chassis, and it runs Cisco IOS XE on the UADP 2.0 ASIC.

Switching capacity is 256 Gbps standalone and 736 Gbps when stacked, with a forwarding rate of 190.47 Mpps standalone and 547.62 Mpps stacked. StackWise-480 joins up to 8 members at 480 Gbps, and Cisco StackPower shares power across the stack. The unit carries 8 GB DRAM and 16 GB flash, and the default power supply is the 350W AC PWR-C1-350WAC-P. This SKU ships with the perpetual Network Advantage licence, which adds VRF, VXLAN, LISP, TrustSec, MPLS and advanced routing such as BGP, EIGRP and IS-IS over Network Essentials.

Uplinks use the C9300 network modules: C9300-NM-4G, 4M, 8X, 2Q and 2Y cover 1G through 40G options, and Catalyst 3850 network modules are also supported. It stacks with other Catalyst 9300 and 9300X models at the same licence level, using STACK-T1 cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- StackWise-480 stacking with up to 8 members, mixed with Catalyst 9300X models
- Cisco StackPower for power sharing and redundancy across the stack
- UADP 2.0 ASIC with programmable pipeline
- Cisco IOS XE with NETCONF, RESTCONF, gNMI, YANG and model-driven telemetry
- Container-based application hosting with external USB 3.0 SSD support
- Network Advantage adds VRF, VXLAN, LISP, TrustSec/SGT, MPLS, BGP, EIGRP and IS-IS
- MACsec-256 encryption and Encrypted Traffic Analytics
- Hardware-anchored Secure Boot and Trust Anchor module
- Flexible NetFlow and NBAR2 application visibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 Mbps RJ-45, data only
- PoE: None
- Uplinks: Modular, network module slot
- Licence: Network Advantage (perpetual)
- Switching capacity: 256 Gbps standalone, 736 Gbps stacked
- Forwarding rate: 190.47 Mpps standalone, 547.62 Mpps stacked
- Stacking: StackWise-480, up to 8 members, 480 Gbps
- StackPower: Supported
- Default power supply: 350W AC (PWR-C1-350WAC-P)
- Memory: 8 GB DRAM, 16 GB flash
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- ACL scale entries: 5,120
- QoS scale entries: 5,120
- Packet buffer: 16 MB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Form factor: 1RU
- Dimensions with default power supply (H x W x D): 4.4 x 44.5 x 44.9 cm
- Weight with default power supply: 7.45 kg
- Operating temperature: -5 to 45 C up to 5000 ft
- Power consumption: 102.3 W at 100% traffic, 115 VAC, no uplink module
- Management ports: RJ-45 Ethernet management and RJ-45 console

FAQs

Q: Does this switch provide PoE?
A: No. The C9300-48T-A is a data-only model with 48 Gigabit RJ-45 ports and no PoE budget. Choose a PoE+ or UPOE variant if you need to power endpoints.

Q: Which licence does this SKU include?
A: It ships with the perpetual Network Advantage licence. A Cisco Catalyst or DNA subscription term is also required at time of order, and all stack members must run the same licence tier.

Q: Which uplink modules does it support?
A: It supports the C9300-NM-4G (4x1G SFP), C9300-NM-4M (4x mGig), C9300-NM-8X (8x10G/1G SFP+), C9300-NM-2Q (2x40G QSFP) and C9300-NM-2Y (2x25G/10G/1G SFP28). Catalyst 3850 network modules are also supported. Catalyst 9300X network modules are not supported.

Q: What can it stack with?
A: It stacks with other Catalyst 9300 and 9300X models at StackWise-480 speeds, using STACK-T1-50CM, 1M or 3M cables and the same licence level. It does not stack with 9300L/LM models, the higher-scale -UB/-UXB models or Catalyst 3850/3650.

Q: What power supply does it use?
A: The default is the 350W AC PWR-C1-350WAC-P, and a second supply can be added for redundancy. The 715W (PWR-C1-715WAC-UP) and 1100W (PWR-C1-1100WAC-UP) AC supplies are upgrade options.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
