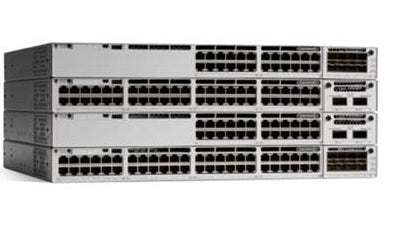

• Cisco C9300-48H-E Catalyst 9300 switch, black and silver
1 1

Cisco

Cisco C9300-48H-E | Catalyst 9300 48-Port UPoE+ Switch, Network Essentials

C9300-48H-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300 C9300-48H-E is a stackable enterprise access switch with 48 x 10/100/1000 copper ports, each capable of Cisco UPOE+ up to 90W per port under IEEE 802.3bt. It suits campus and branch access layers that power Wi-Fi 6/6E access points, IP cameras, digital signage, LED lighting and other smart building or IoT devices, and it provides a foundation for SD-Access fabrics.

This 48-port UPOE+ model carries the Network Essentials licence. It offers 256 Gbps of switching capacity and 190.48 Mpps forwarding rate standalone, rising to 736 Gbps and 547.62 Mpps when stacked. StackWise-480 stacking supports up to 8 members at 480 Gbps. The default 1100W AC power supply provides 822W of available PoE, with upgrade options to 1900W supplies for a 1622W budget. Uplinks are modular, so the network module is chosen to match the 1G, 10G, 25G, 40G or Multigigabit requirement. The switch runs Cisco IOS XE with 8 GB DRAM and 16 GB flash.

It works with C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q and C9300-NM-2Y network modules, and stacks with other Catalyst 9300 models using STACK-T1 cables. StackPower pooling is supported with CAB-SPWR cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE+ delivering up to 90W per port for access points, cameras, displays and IoT devices
- Perpetual PoE and Fast PoE keep powered devices running during a switch reload
- StackWise-480 stacking with Cisco StackPower for power redundancy
- UADP 2.0 ASIC with a programmable pipeline
- Cisco IOS XE with NETCONF, RESTCONF, gNMI, YANG models and streaming telemetry
- On-box application hosting with external USB 3.0 SSD support
- Hardware-anchored Secure Boot, Trust Anchor module and MACsec encryption
- Field-replaceable fans, dual redundant power supplies and modular uplinks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 copper with Cisco UPOE+
- PoE per port: up to 90W (IEEE 802.3bt Type 4)
- Uplinks: modular, network module sold separately
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- Available PoE budget (1x 1100W PSU): 822W
- Available PoE budget (1x 1900W PSU upgrade): 1622W
- PoE budget with two 1100W power supplies: 1922W
- 90W UPOE+ on 21 ports with two 1100W or two 1900W supplies
- Switching capacity: 256 Gbps (736 Gbps with stacking)
- Forwarding rate: 190.48 Mpps (547.62 Mpps with stacking)
- Stacking: StackWise-480, 480 Gbps, up to 8 members
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- QoS and ACL scale entries: 5,120 each
- Packet buffer: 16 MB
- Flexible NetFlow: 64,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D), chassis only: 4.4 x 44.5 x 40.9 cm
- Weight with default power supply: 7.72 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 90% noncondensing
- Licence: Network Essentials

FAQs

Q: Which licence does the C9300-48H-E include?
A: It includes the Network Essentials perpetual licence, covering Layer 2 and Layer 3 routed access, 802.1X, MACsec-128 and telemetry. A Cisco Catalyst/DNA subscription is also required, and Smart Licensing applies.

Q: How much PoE power is available?
A: With the default 1100W AC power supply the switch provides 822W of available PoE. Upgrading to a 1900W supply gives 1622W, and two 1100W supplies give 1922W.

Q: Can every port deliver 90W?
A: Each port supports up to 90W UPOE+. Delivering 90W on 21 ports at once requires two 1100W or two 1900W power supplies.

Q: Which uplink modules does it work with?
A: It supports C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q and C9300-NM-2Y network modules. Catalyst 9300X modules are not supported.

Q: What can it be stacked with?
A: It stacks at StackWise-480 with other Catalyst 9300 models using STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M cables. It cannot stack with C9300L, C9300LM or higher-scale B models.
