• Cisco Catalyst 9300-48H-A Switch with 48x 1G UPOE+ Ports
1 1

Cisco

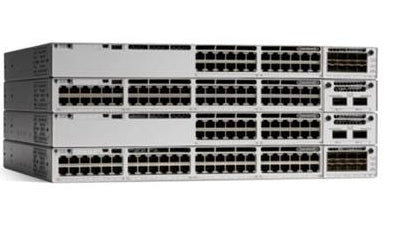

Cisco C9300-48H-A | Catalyst 9300 48-Port UPoE+ Switch, Network Advantage

C9300-48H-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300 48-port UPoE+ switch is a stackable enterprise access switch for campus and branch networks that need high-power PoE. It suits Wi-Fi 6 and 6E access points, IP phones, PTZ and security cameras, digital signage, LED lighting and other IoT devices in smart-building deployments, as well as SD-Access fabric edge and stacked access designs.

It provides 48 x 10/100/1000 copper ports with Cisco UPOE+ delivering up to 90W per port (IEEE 802.3bt Type 4), with modular uplinks for 1G, 10G, 25G, 40G or Multigigabit network modules. Switching capacity is 256 Gbps (736 Gbps with stacking) and forwarding rate is 190.48 Mpps (547.62 Mpps with stacking). StackWise-480 supports up to 8 stack members, and StackPower provides power redundancy. The default 1100W AC power supply gives 822W of available PoE, and an optional 1900W supply raises this to 1622W. It ships with the Network Advantage perpetual licence, adding advanced routing, segmentation and automation features.

It accepts Catalyst 9300 network modules including C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y and C9300-NM-4M, and runs Cisco IOS XE 16.5.1a or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE+ delivering up to 90W per port (IEEE 802.3bt Type 4), with Perpetual PoE and Fast PoE
- StackWise-480 stacking with up to 8 members and StackPower for power redundancy
- UADP 2.0 ASIC with a programmable pipeline
- Cisco IOS XE with NETCONF, RESTCONF, gNMI, YANG, on-box Python and streaming telemetry
- Container-based application hosting with a USB 3.0 SSD slot
- MACsec-256 encryption, Encrypted Traffic Analytics and hardware-anchored Secure Boot
- Foundation for Cisco SD-Access with VXLAN BGP-EVPN fabric support
- Network Advantage adds BGP, EIGRP, IS-IS, VRF, VXLAN, LISP, TrustSec and MPLS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 copper with Cisco UPOE+ (up to 90W per port)
- Uplinks: modular, network module sold separately
- Licence: Network Advantage perpetual
- Switching capacity: 256 Gbps (736 Gbps with stacking)
- Forwarding rate: 190.48 Mpps (547.62 Mpps with stacking)
- Stacking: StackWise-480 (480 Gbps), up to 8 members
- StackPower: supported
- Default power supply: 1100W AC
- Available PoE with 1100W PSU: 822W
- Available PoE with 1900W PSU: 1622W
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- QoS scale entries: 5,120
- ACL scale entries: 5,120
- Packet buffer: 16 MB
- DRAM: 8 GB
- Flash: 16 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions, chassis only (H x W x D): 4.4 x 44.5 x 40.9 cm
- Weight (with default power supply): 7.72 kg
- Operating temperature (1100W PSU): -5 to 45 C up to 1500 m
- MTBF: 227,410 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the Network Advantage perpetual licence. A matching Cisco Catalyst/Cisco DNA Advantage subscription is required at time of order, and the switch uses Cisco Smart Licensing.

Q: What power supply is needed to run UPoE+ on all ports?
A: The default PWR-C1-1100WAC-P gives 822W of available PoE. A 1900W supply raises this to 1622W, and a second supply can be added for redundancy or additional PoE budget.

Q: Are uplink ports built in?
A: No. The uplinks are modular, so you choose a Catalyst 9300 network module such as C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y or C9300-NM-4M.

Q: What can this switch be stacked with?
A: It stacks with other C9300 SKUs at the same licence level using STACK-T1 cables. It is not stackable with C9300L or higher-scale C9300-xxUB models.

Q: Can it be managed from Meraki or Catalyst Center?
A: It is managed by Cisco Catalyst Center and can also be migrated to Meraki dashboard cloud management.
