• Cisco Catalyst 9300-24UX-E switch with 24 mGig ports and UPOE
1 1

Cisco

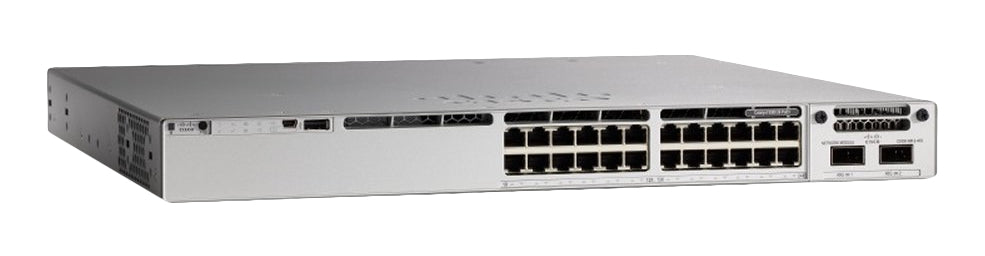

Cisco C9300-24UX-E | Catalyst 9300 24-Port mGig UPOE Switch, Network Essentials

C9300-24UX-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300 24-port mGig UPOE switch is a fixed-configuration, stackable access switch for enterprise campus and branch networks. It suits deployments that need multigigabit speeds for Wi-Fi 6 and Wi-Fi 6E access points and UPOE-powered endpoints.

The switch provides 24 multigigabit RJ45 ports supporting 100M, 1G, 2.5G, 5G and 10G speeds, with Cisco UPOE delivering up to 60W per port. Uplinks are provided through optional C9300-NM network modules, so you can choose the uplink type to suit your design. Redundant power supplies and fans are field-replaceable, and the platform supports StackWise-480 stacking and StackPower for resilient multi-switch builds. This SKU carries the Network Essentials software tier, with Network Advantage available as an upgrade.

It accepts C9300-NM-series uplink modules such as C9300-NM-8X, C9300-NM-4X, C9300-NM-4G and C9300-NM-2Q, and stacks with other Catalyst 9300 models using StackWise-480 and StackPower cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE with programmability and model-driven telemetry
- StackWise-480 stacking and StackPower for resilient multi-switch builds
- Cisco UPOE support, up to 60W per port
- Modular uplinks through optional C9300-NM network modules
- Hot-patching support
- Cisco TrustSec and MACsec-capable platform with Secure Boot and Trust Anchor

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x multigigabit RJ45 (100M/1G/2.5G/5G/10G)
- PoE: Cisco UPOE, up to 60W per port
- Uplinks: modular via C9300-NM network modules
- Software tier: Network Essentials
- Stacking: StackWise-480 and StackPower
- Power supplies: field-replaceable, redundant
- Fans: field-replaceable
- Operating system: Cisco IOS XE

FAQs

Q: Which software tier does this SKU use?
A: This SKU ships with the Network Essentials feature set. Network Advantage is available as an upgrade.

Q: Does it include built-in uplink ports?
A: No. Uplinks are provided through optional C9300-NM network modules, so you need to choose at least one module for your uplink requirements.

Q: Which uplink modules does it work with?
A: It accepts C9300-NM-series modules such as C9300-NM-8X, C9300-NM-4X, C9300-NM-4G and C9300-NM-2Q.

Q: How is the PoE budget determined?
A: The UPOE budget depends on which Catalyst 9300 AC power supply is installed. Each port supports UPOE at up to 60W.

Q: Can it be stacked with other Catalyst 9300 switches?
A: Yes. It stacks with other Catalyst 9300 models using StackWise-480 stack cables and StackPower cables.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
