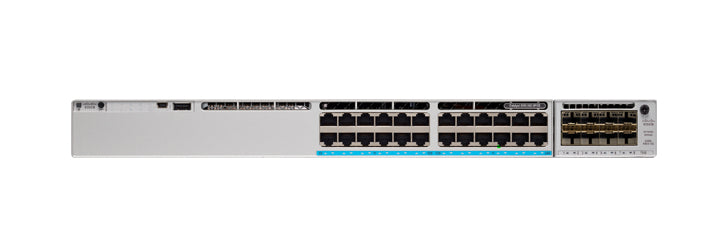

• Cisco C9300-24U-E Catalyst 9300 switch with 24 UPOE ports
1 1

Cisco

Cisco C9300-24U-E | Catalyst 9300 24-Port UPOE Switch, 830W, Network Essentials

C9300-24U-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300 24-port UPOE switch is a stackable enterprise access switch for campus and branch networks, especially where high-power PoE endpoints such as IP phones, wireless access points, cameras, building automation and IoT devices are deployed. It is built on the UADP 2.0 ASIC and runs Cisco IOS XE, and it suits SD-Access fabric edge deployments as well as stacked access layers.

The switch provides 24 x 10/100/1000 Cisco UPOE ports delivering up to 60W each, with modular uplinks that take Catalyst 9300 network modules. The default 1100W AC power supply (PWR-C1-1100WAC-P) gives an 830W PoE budget, and a second power supply of 350W, 715W, 1100W or 1900W can be added for redundancy or extra PoE capacity. Switching capacity is 208 Gbps, rising to 688 Gbps in a stack, with a forwarding rate of 154.76 Mpps. StackWise-480 supports up to 8 stack members and StackPower is supported.

This SKU carries the perpetual Network Essentials licence, covering Layer 2 and Layer 3 switching, basic routing, 802.1X and MACsec-128. It accepts C9300-NM-4G, NM-4M, NM-8X, NM-2Q and NM-2Y network modules and stacks with other C9300 models at the same licence level.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE delivering up to 60W per port, with PoE+ and PoE support
- Perpetual PoE and Fast PoE
- UADP 2.0 ASIC with programmable pipeline
- Cisco IOS XE with NETCONF, RESTCONF, gNMI and YANG programmability, on-box Python and container app hosting
- MACsec-128/256 encryption, Secure Boot and Trust Anchor module
- StackWise-480 and Cisco StackPower for stack resiliency and power sharing
- Hot-swappable dual redundant power supplies and three field-replaceable fans
- Supports SD-Access fabric, VXLAN/BGP-EVPN, MPLS and Audio Video Bridging

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 Cisco UPOE (60W per port)
- Uplinks: Modular, C9300 network modules
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- PoE budget (single 1100W PSU): 830W
- PoE budget with 350W secondary PSU: 1180W
- PoE budget with 715W secondary PSU: 1152W
- PoE budget with 1100W or 1900W secondary PSU: 1440W
- Switching capacity: 208 Gbps (688 Gbps with stacking)
- Forwarding rate: 154.76 Mpps (511.90 Mpps with stacking)
- Stacking: StackWise-480 (480 Gbps), up to 8 members
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- ACL scale entries: 5,120
- QoS scale entries: 5,120
- Packet buffer: 16 MB
- Flexible NetFlow: 64,000 flows
- DRAM: 8 GB
- Flash: 16 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions with default power supply (H x W x D): 4.4 x 44.5 x 48.8 cm (1RU)
- Weight with default power supply: 7.54 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Relative humidity: 5% to 90% non-condensing
- Acoustic noise: 45 dB LpA typical

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Network Essentials licence, covering Layer 2 and Layer 3 switching, basic routing, 802.1X, MACsec-128 and telemetry. Smart Licensing is used.

Q: How much PoE power is available?
A: With the default 1100W AC power supply the switch provides 830W of PoE. Adding a second power supply raises this, up to a maximum of 1440W with a 1100W or 1900W unit, which is the limit of 24 ports at 60W.

Q: Which uplink modules does it accept?
A: It accepts the Catalyst 9300 network modules C9300-NM-4G, NM-4M, NM-8X, NM-2Q and NM-2Y. C9300X network modules are not supported.

Q: What can it be stacked with?
A: It stacks with other Catalyst 9300 models at the same licence level using STACK-T1 stacking cables, with up to 8 members per stack. It cannot stack with C9300L models, C9300 UB models or Catalyst 3850 and 3650 switches.

Q: How does this SKU differ from the other 24-port Catalyst 9300 models?
A: This model has 24 UPOE ports at up to 60W each and the Network Essentials licence. The standard PoE+ and data-only 24-port models offer lower per-port power.
