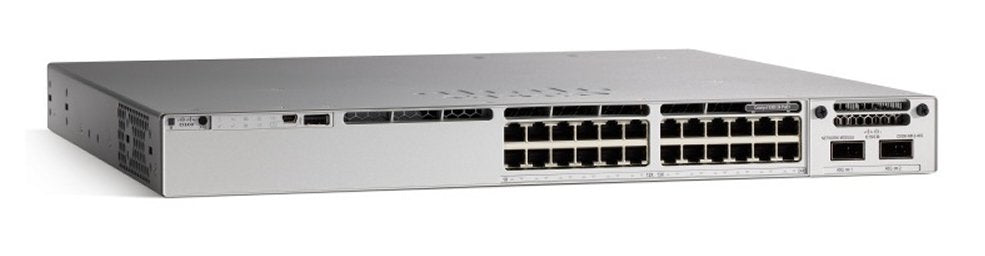

• Cisco C9300-24T-A switch with 24x 1G RJ45 ports, compact silver design
1 1

Cisco

Cisco C9300-24T-A | Catalyst 9300 24-Port Gigabit Switch, Network Advantage

C9300-24T-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9300-24T-A is a high-performance stackable enterprise access switch designed for data-intensive environments requiring advanced Layer 3 routing and security. With 24 Gigabit Ethernet ports, modular uplink options, and Network Advantage licensing, it delivers full BGP, MPLS, and SD-Access capabilities. Ideal for campus networks, server aggregation, and high-speed workstation connectivity where PoE is not required.

Features

Layer 2 switching with VLAN support (4096 VLANs), IEEE 802.1Q trunking, and Spanning Tree Protocol (STP/RSTP/MSTP)
- Layer 3 routing with support for OSPF, EIGRP, BGP, IS-IS, static routing, and VRF-Lite for network segmentation
- StackWise-480 technology for high-bandwidth stacking (480 Gbps) with up to 8 switches in a single stack
- StackPower for redundant power sharing across stacked switches
- Advanced security with MACsec encryption, TrustSec, 802.1X authentication, and ACL support
- Encrypted Traffic Analytics (ETA) for detecting threats in encrypted traffic without decryption
- Cisco DNA Center integration for centralized management, automation, and analytics
- SD-Access support for intent-based networking and policy-driven segmentation
- Flexible NetFlow (FNF) for granular traffic visibility and analysis
- Quality of Service (QoS) with 8 egress queues per port and Class-Based Weighted Fair Queuing (CBWFQ)
- Multicast routing with PIM-SM, PIM-SSM, IGMP v1/v2/v3, and Multicast Source Discovery Protocol (MSDP)
- Non-Stop Forwarding (NSF) and Stateful Switchover (SSO) for high availability
- Cisco IOS XE programmability with support for Python scripting, guest shell, and third-party application hosting
- USB 2.0 and USB 3.0 ports for external storage and configuration backup
- Precision Time Protocol (PTP) IEEE 1588v2 for clock synchronization
- Field-replaceable network modules, fans, and power supplies for simplified maintenance and upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 1 x modular network module slot (supports 1G/10G/25G/40G uplinks, module sold separately)
- Switching capacity: 208 Gbps standalone, 688 Gbps stacked
- Forwarding rate: 154.76 Mpps (wire-speed, non-blocking)
- Stacking bandwidth: 480 Gbps (StackWise-480)
- Memory: 8 GB DRAM
- Flash: 16 GB
- MAC address table: 32,000 entries
- IPv4 routing entries: 32,000 (24,000 direct + 8,000 indirect)
- IPv6 routing entries: 16,000
- Multicast routing scale: 8,000 groups
- Power supply: 350W AC (PWR-C1-350WAC-P/2)
- PoE support: None (data-only model)
- Dimensions (H x W x D): 1.73 x 17.5 x 17.5 in (4.4 x 44.5 x 44.5 cm)
- Operating system: Cisco IOS XE
- Management: CLI, SNMP (v1/v2c/v3), NETCONF, RESTCONF, RMON 1/2, Web GUI
- Cooling: 3 field-replaceable fans (N+1 redundancy)
- Compliance: IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3u, 802.3x

FAQs

Q: Does the C9300-24T-A support Power over Ethernet (PoE)?
A: No, the C9300-24T-A is a data-only model and does not support PoE. The internal circuitry lacks PoE controllers, so upgrading the power supply will not add PoE capability. For PoE requirements, consider the C9300-24P-A or C9300-24U-A models.

Q: Can I stack this switch with other Catalyst 9300 models?
A: Yes, the C9300-24T-A supports StackWise-480 stacking and can be stacked with other Catalyst 9300 modular uplink models (C9300 and C9300X SKUs). You can mix data-only, PoE, and multigigabit models within the same stack. However, it cannot be stacked with fixed uplink models (C9300L SKUs) or older Catalyst 3850/3650 switches.

Q: What uplink modules are compatible with this switch?
A: The C9300-24T-A has one modular network module slot that supports a range of uplink options including 4x 1G, 8x 10G, 2x 25G, and 2x 40G modules. Network modules are sold separately and allow you to adapt uplink bandwidth as your network grows without replacing the entire switch.

Q: What features does Network Advantage licensing include?
A: Network Advantage licensing provides full Layer 3 routing (OSPF, EIGRP, BGP, IS-IS, VRF-Lite, MPLS), Encrypted Traffic Analytics, complete SD-Access functionality, TrustSec, MACsec, StackPower, and advanced automation capabilities. It is required for core or distribution deployments running BGP or complex WAN peering.

Q: Is this switch suitable for campus core or distribution layer deployment?
A: Yes, the C9300-24T-A with Network Advantage is designed for campus aggregation, distribution, and core deployments. It offers high switching capacity (up to 688 Gbps when stacked), advanced Layer 3 routing, redundancy features, and modular uplink flexibility ideal for enterprise-grade infrastructure.
