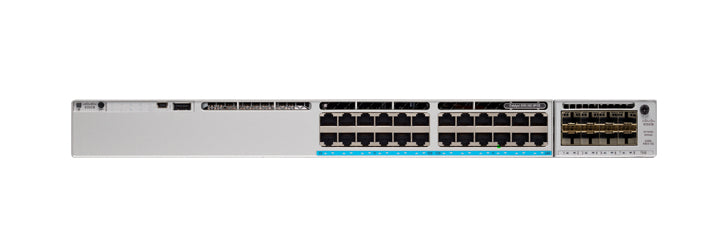

Cisco C9300-24P-E | Catalyst 9300 24-Port Gigabit PoE+ Switch, 445W, Modular Uplink

C9300-24P-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9300-24P-E is an enterprise-grade stackable access switch designed for modern campus networks requiring flexibility and scalability. With 24 Gigabit Ethernet PoE+ ports delivering 445W total power budget and a modular uplink slot supporting 1G/10G/40G network modules, this switch adapts to evolving bandwidth requirements while powering Wi-Fi 6 access points, IP phones, and security cameras. Built on the UADP 2.0 architecture with Cisco IOS XE, it includes Network Essentials licensing with foundational Layer 3 routing and advanced security features for secure, resilient enterprise deployments.

Features

StackWise-480 technology with 480 Gbps stacking bandwidth, supporting up to 8 switches per stack
- Modular uplink architecture with field-replaceable network modules for 1G, 10G, 25G, or 40G connectivity
- UADP 2.0 ASIC with programmable pipeline and x86 CPU architecture for advanced analytics and hosting
- Cisco IOS XE operating system with support for NETCONF, RESTCONF, and model-driven programmability
- MACsec hardware-based encryption (802.1AE) for secure Layer 2 communications
- Encrypted Traffic Analytics (ETA) for threat detection without decryption
- IPv6 First Hop Security including RA Guard and DHCPv6 Guard
- Advanced QoS with 8 egress queues, DSCP/CoS marking, and Weighted Random Early Detection (WRED)
- Flexible NetFlow (FNF) for traffic visibility and monitoring
- Stateful Switchover (SSO) and Nonstop Forwarding (NSF) for sub-50ms failover in stack
- Cisco StackPower for shared power pools and redundancy across stack members
- Persistent PoE to keep devices powered during switch reboot or upgrade
- IEEE 802.1x authentication with dynamic VLAN assignment and per-port ACLs
- Private VLAN, VLAN Double Tagging (Q-in-Q), and up to 4094 VLANs
- Spanning Tree Protocol (STP, RSTP, MSTP) with BPDU guard and root guard
- LACP (802.3ad) link aggregation with cross-stack EtherChannel support
- Control Plane Policing (CoPP) and uRPF for infrastructure protection
- Auto-MDIX for automatic cable type detection and correction
- Energy Efficient Ethernet (EEE) 802.3az for reduced power consumption
- Jumbo frame support up to 9198 bytes MTU
- DHCP snooping, Dynamic ARP Inspection (DAI), and IP Source Guard
- USB Type-A port for off-box configuration and storage
- Hot-swappable, field-replaceable fans and power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 Gigabit Ethernet RJ45 ports with PoE+ (802.3at)
- Total PoE+ power budget: 445W (with default PWR-C1-715WAC power supply)
- 1x modular network module slot supporting C9300-NM series modules (4x1G, 8x10G, or 2x40G uplinks)
- Switching capacity: 208 Gbps
- Forwarding rate: 154.76 Mpps (wire-speed, non-blocking)
- Stacking bandwidth: 480 Gbps via StackWise-480 technology (up to 8 switches per stack)
- Memory: 8GB DRAM, 16GB Flash
- Packet buffer: 16MB
- Form factor: 1RU rack-mountable, dimensions 1.73 x 17.5 x 17.5 in (4.4 x 44.5 x 44.5 cm)
- Weight: 16.33 lbs (7.41 kg)
- Default power supply: PWR-C1-715WAC (715W AC)
- Redundant power supply support (hot-swappable, field-replaceable)
- Cooling: 3 field-replaceable fans with N+1 redundancy
- Management: CLI, Web GUI, SNMP v1/v2c/v3, NETCONF, RESTCONF, RMON 1/2, Cisco DNA Center
- License: Network Essentials (includes basic Layer 3 routing, OSPF, Encrypted Traffic Analytics)
- MTBF: 390,000 hours
- Operating temperature: 32°F to 113°F (0°C to 45°C)
- Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3ad (LACP), 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1x

FAQs

Q: What network modules are compatible with the C9300-24P-E?
A: The C9300-24P-E supports C9300-NM series modules including C9300-NM-4G (4x 1G SFP), C9300-NM-8X (8x 10G SFP+), C9300-NM-2Q (2x 40G QSFP+), and C9300-NM-4M (4x Multigigabit). The switch ships without a network module by default; modules are purchased separately based on uplink requirements.

Q: Can the C9300-24P-E be stacked with other Catalyst 9300 models?
A: Yes, it supports StackWise-480 stacking with other C9300 and C9300X modular uplink models, allowing up to 8 switches in a single stack with 480 Gbps stacking bandwidth. Mixed stacking between C9300 and C9300X is supported. However, it cannot stack with C9300L fixed uplink models or Catalyst 3850/3650 series switches.

Q: What is included with the Network Essentials license?
A: The Network Essentials license includes foundational Layer 2 switching, basic Layer 3 static routing, OSPF for routed access, 802.1x authentication, MACsec encryption, Encrypted Traffic Analytics (ETA), and IPv6 First Hop Security. Advanced features like full Layer 3 routing protocols require upgrading to Network Advantage license.

Q: Does this switch support PoE+ power for Wi-Fi 6 access points?
A: Yes, all 24 ports support PoE+ (802.3at) delivering up to 30W per port with a total power budget of 445W. The switch also supports Persistent PoE to keep devices powered during switch reboots, making it ideal for Wi-Fi 6 APs, IP cameras, and VoIP phones.

Q: Can I add redundant power supplies to the C9300-24P-E?
A: Yes, the switch supports hot-swappable secondary power supplies for N+1 redundancy. It is also compatible with Cisco StackPower and StackPower+ technology, allowing power sharing across stacked switches for enhanced resilience and flexibility in power allocation.
