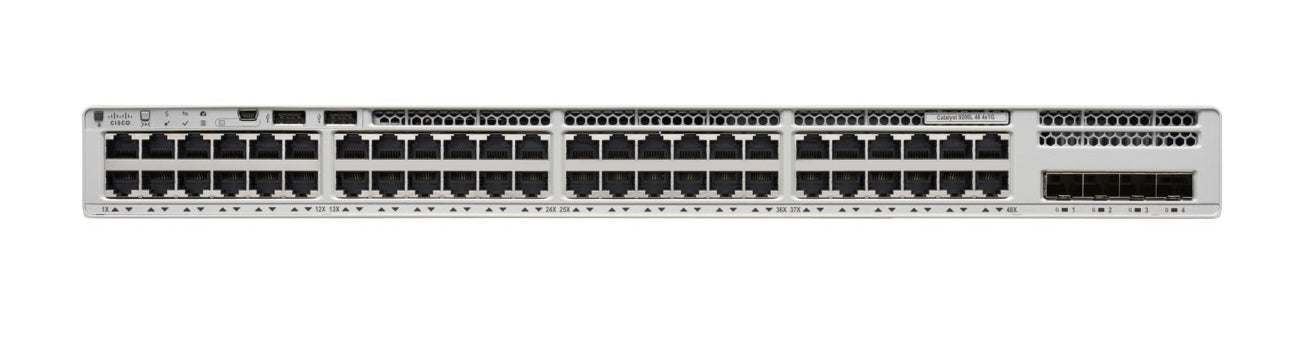

Cisco C9200L-48T-4X-E | Catalyst 9200L 48-Port Gigabit Switch, 4x 10G, Network Essentials

C9200L-48T-4X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L C9200L-48T-4X-E is a fixed-uplink access switch aimed at cost-effective branch office and campus access layers. It provides 48 data-only 10/100/1000 copper ports with four fixed 1/10G SFP+ uplinks, and ships with the Network Essentials licence tier. It runs Cisco IOS XE and supports routed access and segmentation.

This is a non-PoE model with a switching capacity of 176 Gbps (256 Gbps when stacked) and a forwarding rate of 130.95 Mpps (190 Mpps when stacked). Table scale includes 16,000 MAC addresses, 11,000 IPv4 routes, 4,094 VLAN IDs and 16,000 Flexible NetFlow flows, backed by 2 GB DRAM, 4 GB flash and a 6 MB packet buffer. The default power supply is the PWR-C5-125WAC and the fans are fixed and redundant. Typical draw is about 48 W at a weighted average load.

StackWise-80 stacking delivers 80 Gbps of stacking bandwidth with up to 8 members under a single control plane, using the C9200L-STACK-KIT. A stack can only combine C9200L models at the same licence level. Network Essentials covers static routing, RIP, OSPF and routed access, and Cisco DNA Essentials or Advantage subscriptions are available as add-ons through Smart Licensing.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 routed access with static routing, RIP and OSPF under Network Essentials
- AES-128 MACsec encryption and policy-based segmentation
- Secure Boot and image signing through Cisco Trust Anchor technologies
- Model-driven programmability with NETCONF/RESTCONF, streaming telemetry and Plug and Play
- StackWise-80 stacking with up to 8 members and a single management plane
- Managed through Cisco Catalyst Center, WebUI or the Meraki dashboard
- Energy Efficient Ethernet and per-port power consumption control
- Cold patching for OS resilience

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000 data-only (non-PoE) copper
- Uplinks: 4 x 1/10G fixed SFP+
- Switching capacity: 176 Gbps (256 Gbps with stacking)
- Forwarding rate: 130.95 Mpps (190 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Default power supply: PWR-C5-125WAC (125 W AC, 100 to 240 VAC, 50 to 60 Hz)
- Fans: Fixed redundant
- DRAM: 2 GB
- Flash: 4 GB
- Packet buffer: 6 MB
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- ACL scale entries: 1,500
- QoS scale entries: 1,000
- Flexible NetFlow entries: 16,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 28.8 cm, chassis only
- Weight: 4.53 kg
- Power consumption: 36.08 W no link, 48.28 W weighted average, 53.60 W at full traffic (115 VAC)
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- Operating system: Cisco IOS XE 16.9.2 or later

FAQs

Q: Which licence does the C9200L-48T-4X-E include?
A: It ships with the Network Essentials perpetual licence, indicated by the -E suffix. Cisco DNA Essentials or Advantage subscriptions are available as add-ons and are managed through Smart Licensing. The DNA tier must match the Network Essentials or Advantage licence.

Q: Does this switch provide PoE?
A: No. This is a data-only model with 48 non-PoE Gigabit ports. For powered devices, choose a PoE variant of the Catalyst 9200L.

Q: What power supply does it use and can it be made redundant?
A: The default power supply is the PWR-C5-125WAC (125 W AC). A secondary PWR-C5-125WAC/2 can be added for power redundancy.

Q: What can it be stacked with?
A: It uses StackWise-80 with the C9200L-STACK-KIT and stacks with other C9200L models at the same licence level, up to 8 members. It cannot be mixed with C9200 modular or other Catalyst models.

Q: What optics do the uplinks accept?
A: The four fixed uplinks accept 1G SFP and 10G SFP+ optics. Supported modules are listed in the Cisco TMG compatibility matrix.

Q: How does it differ from the Network Advantage version?
A: The -E model includes Network Essentials, which covers static routing, RIP, OSPF and routed access. The -A version carries the higher Network Advantage tier.
