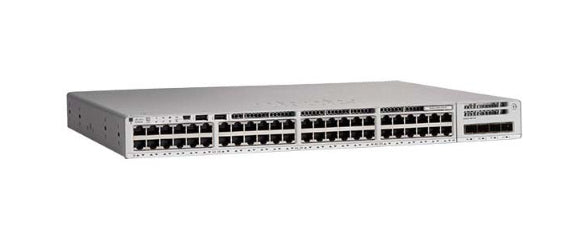

Cisco C9200L-48T-4X-A | Catalyst 9200L 48-Port Gigabit Switch, 4x 10G SFP+, Layer 3

C9200L-48T-4X-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 9200L-48T-4X-A is a high-performance Layer 3 access switch designed for enterprise campus and branch deployments requiring data-only connectivity. With 48 Gigabit Ethernet ports, 4x 10G SFP+ uplinks, and Network Advantage licensing, it delivers advanced routing, SD-Access readiness, and automation capabilities. Built on Cisco IOS XE with StackWise-160 support, it provides scalable, secure, and intelligent network infrastructure for demanding environments.

Features

Layer 3 switching with advanced routing protocols (OSPF, EIGRP, BGP, PIM, VRF-Lite)
- Cisco Software-Defined Access (SD-Access) fabric edge and border node support
- Cisco TrustSec and policy-based network segmentation
- MACsec (AES-128) encryption on downlink and uplink ports
- StackWise-160 technology with up to 160 Gbps stacking bandwidth (optional modules required)
- Cisco UADP 2.0 Mini ASIC for optimized performance and scalability
- Flexible NetFlow (FNF) with 16,000 flow entries
- Advanced QoS with 8 egress queues per port
- IEEE 802.1X authentication and dynamic VLAN assignment
- Cisco DNA Center integration for zero-touch provisioning and automation
- Dual redundant fixed fans for high availability
- Energy Efficient Ethernet (IEEE 802.3az) with per-port power management
- Blue beacon LEDs (front and back) for easy physical identification
- Hot-patching and ISSU (In-Service Software Upgrade) for zero-downtime updates
- Comprehensive security: ACLs, port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- IPv6 routing and multicast support (PIM-SM, PIM-SSM, IGMP v1/v2/v3)
- REST APIs and model-driven programmability (YANG, NETCONF, RESTCONF)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000Base-T RJ-45 Gigabit Ethernet ports (data only, non-PoE)
- 4x 10G SFP+ fixed uplink ports
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- MAC address table: 16,000 entries
- Packet buffer: 6 MB
- IPv4 routing: 11,000 routes (8,000 direct, 3,000 indirect)
- IPv6 routing: 1,500 entries
- DRAM: 2 GB
- Flash memory: 4 GB
- Stacking: StackWise-160 (up to 160 Gbps bandwidth, 8 switches max)
- Power supply: PWR-C5-125WAC (125W AC), fixed redundant fans
- Dimensions (HxWxD): 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.8 cm)
- Form factor: 1RU rack-mountable
- Operating temperature: -5°C to 45°C (up to 5,000 ft)
- Management: Cisco DNA Center, CLI, WebUI, SNMP, SSH, Telnet, REST APIs
- Software: Cisco IOS XE with Network Advantage license
- Certifications: IEEE 802.1D, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1x, 802.3az (EEE)

FAQs

Q: Does the C9200L-48T-4X-A support Power over Ethernet (PoE)?
A: No, this is a data-only model and does not support PoE or PoE+ on any ports. For PoE requirements, consider the C9200L-48P-4X-A variant which offers full PoE+ support.

Q: What advanced features are included with the Network Advantage license?
A: Network Advantage includes full Layer 3 routing protocols (OSPF, EIGRP, BGP), VRF-Lite, SD-Access integration, Cisco TrustSec segmentation, VXLAN EVPN, advanced QoS, MACsec encryption, and enhanced automation via Cisco DNA Center. It enables enterprise-grade routing, security, and policy-based segmentation.

Q: Can this switch be stacked with other Catalyst 9200 models?
A: Yes, the C9200L-48T-4X-A supports StackWise-160 stacking with up to 160 Gbps bandwidth, allowing up to 8 switches to be managed as a single unit. However, you can only stack C9200L models together—mixed stacking with C9200 modular or C9200CX compact models is not supported.

Q: Is Cisco DNA Center required to operate this switch?
A: No, Cisco DNA Center is optional. The switch can be managed via traditional methods including CLI, WebUI, SNMP, and REST APIs. However, DNA Center unlocks advanced automation, zero-touch provisioning, policy-based segmentation, and centralized telemetry for streamlined operations.

Q: What is the difference between the C9200L-48T-4X-A and C9200L-48T-4G-A?
A: The primary difference is in the uplink ports. The C9200L-48T-4X-A features 4x 10G SFP+ uplinks for high-speed fiber connectivity, while the C9200L-48T-4G-A has 4x 1G SFP uplinks. The 4X model offers ten times higher uplink bandwidth, making it ideal for aggregation layers and bandwidth-intensive environments.
