• Cisco C9200L-48T-4G-A Catalyst 9300 switch with 48 gigabit ports
1 1

Cisco

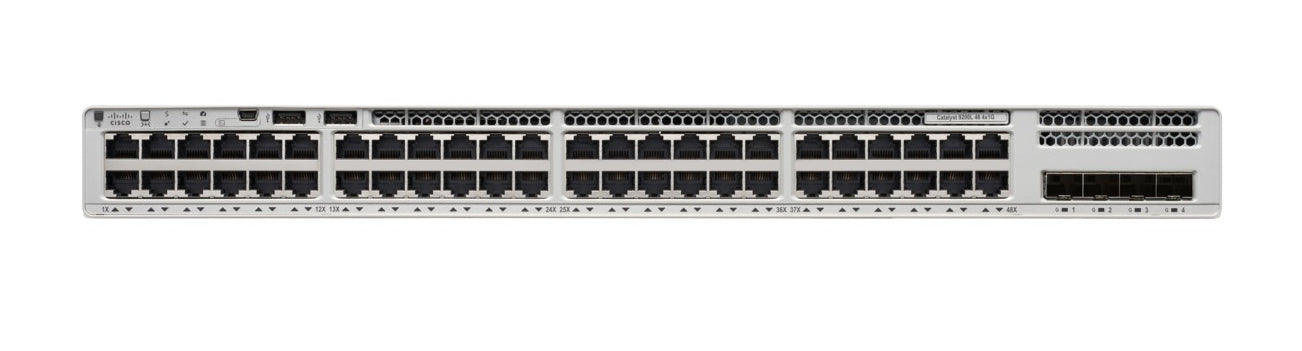

Cisco C9200L-48T-4G-A | Catalyst 9200L 48-Port Gigabit Switch, 4x 1G SFP, Network Advantage

C9200L-48T-4G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L 48-port data-only switch is a stackable, fixed-uplink access switch for branch offices and small campus networks. It suits environments that need 48 Gigabit Ethernet access ports with modest 1G uplinks and no PoE, while still offering Layer 3 routing, stacking and SD-Access capability on Cisco IOS XE.

This SKU provides 48 x 10/100/1000 copper downlink ports and 4 x 1G fixed SFP uplinks. Switching capacity is 104 Gbps, rising to 184 Gbps with stacking, with a forwarding rate of 77.38 Mpps (137 Mpps stacked). It ships with the Network Advantage licence tier, which adds advanced routing, segmentation, multicast, scale and security over Network Essentials. Power comes from a field-replaceable PWR-C5-125WAC 125 W AC supply, and a second identical supply can be added for redundancy.

Stacking uses StackWise-80 with the C9200L-STACK-KIT, joining up to 8 C9200L members at the same licence level into a single management and control plane. The 4 x 1G uplinks accept 1G SFP optics including 1000BASE-SX, LX, ZX and BX10, as well as CWDM, DWDM and 100BASE-FX modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with open APIs, NETCONF/RESTCONF with YANG models and model-driven telemetry
- StackWise-80 backplane stacking with a single management and control plane for up to 8 switches
- Layer 3 features including OSPF, EIGRP, IS-IS, RIP and routed access
- Cisco SD-Access support, Plug and Play and Cisco Catalyst Center management
- Cloud monitoring for Catalyst on the Meraki dashboard
- AES-128 MACsec encryption, policy-based segmentation, secure boot and image signing
- Full Flexible NetFlow, 8 egress queues per port QoS and Energy Efficient Ethernet
- Field-replaceable power supply with optional second supply for redundancy

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000 data only (no PoE)
- Uplinks: 4 x 1G fixed SFP
- Switching capacity: 104 Gbps (184 Gbps with stacking)
- Forwarding rate: 77.38 Mpps (137 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Default power supply: PWR-C5-125WAC, 125 W AC, 100-240 VAC, 50-60 Hz
- Fans: Fixed redundant
- Software licence tier: Network Advantage
- DRAM: 2 GB
- Flash: 4 GB
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- ACL scale entries: 1,500
- Packet buffer: 6 MB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions, chassis only (H x W x D): 4.4 x 44.5 x 28.8 cm
- Weight: 4.53 kg
- Power consumption: 33.85 W at 115 VAC with no link, 47.33 W at 100% full-port traffic
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing

FAQs

Q: Which licence tier does this switch ship with?
A: It ships with the Network Advantage perpetual licence tier, shown by the -A suffix. Cisco DNA Advantage subscriptions are ordered separately, and the DNA tier must match the Network licence tier.

Q: Does this switch provide PoE?
A: No. The C9200L-48T-4G-A is a data-only model with no PoE budget. Its default PWR-C5-125WAC supply is rated at 125 W AC, and a second identical supply can be added for redundancy.

Q: What can this switch be stacked with?
A: It stacks only with other C9200L models at the same licence level, using the C9200L-STACK-KIT and STACK-T4 cables. It cannot stack with modular C9200 or other Catalyst switches.

Q: What optics do the uplink ports accept?
A: The 4 x 1G fixed uplinks accept 1G SFP optics including 1000BASE-SX, LX, ZX and BX10, as well as CWDM, DWDM and 100BASE-FX modules. Check the Cisco TMG compatibility matrix for supported part numbers.

Q: How does it differ from other C9200L 48-port variants?
A: This SKU is the 48-port data-only model with 4 x 1G uplinks and Network Advantage licensing. Siblings differ by PoE support, uplink speed or licence tier.
