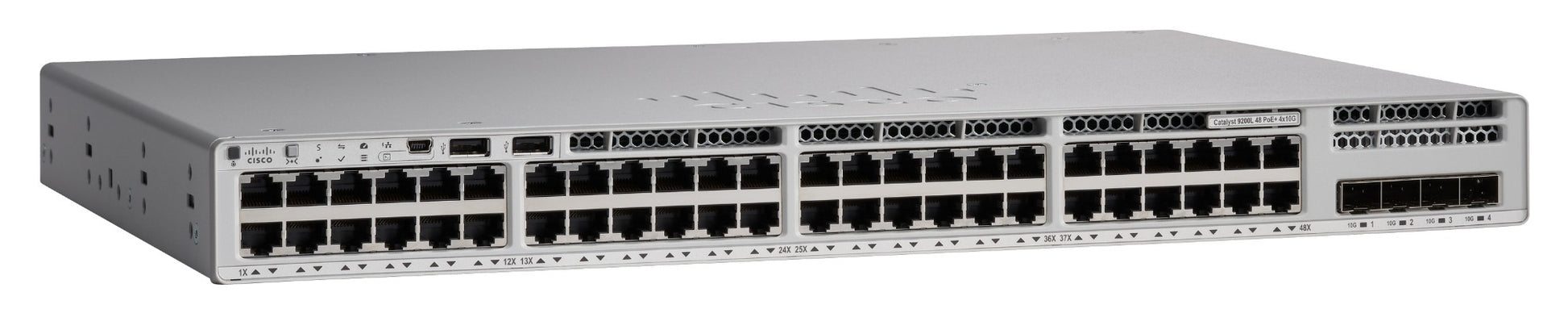

Cisco C9200L-48PXG-4X-E | Catalyst 9200L 48-Port PoE+ Switch, 12x mGig, 740W, 4x 10G SFP+

C9200L-48PXG-4X-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 9200L-48PXG-4X-E is a high-density enterprise access switch designed for campus and branch deployments requiring flexible multi-gigabit connectivity. It features 48 PoE+ ports with 12 multi-gigabit ports supporting up to 10 Gbps and 36 Gigabit Ethernet ports, delivering 740W PoE budget to power wireless access points, IP phones, and security cameras. With four 10G SFP+ uplinks and StackWise-80 technology supporting up to eight switches in a stack, this switch provides scalable, resilient performance with the Network Essentials license.

Features

Cisco UADP 2.0 Mini ASIC with programmable pipeline for advanced packet processing
- StackWise-80 technology supporting up to 8 switches, 80 Gbps stacking bandwidth
- Full IEEE 802.3at PoE+ support on all 48 ports with per-port power sensing and allocation
- Advanced Layer 2 switching with 4096 VLAN IDs, 16,000 MAC addresses
- Layer 3 routing: Static routing, RIP, EIGRP Stub, OSPF (up to 1,000 routes), PIM Stub
- MACsec-128 encryption for wire-rate Layer 2 security on all copper and fiber ports
- Comprehensive QoS with 8 egress queues per port, 802.1p CoS, DSCP marking, SRR scheduling
- Flexible NetFlow with up to 16,000 flow entries for traffic visibility and analysis
- IEEE 802.1X network access control with dynamic VLAN assignment and EAP authentication
- Cisco TrustSec software-defined segmentation (SGT tagging and enforcement)
- Energy Efficient Ethernet (IEEE 802.3az) with per-port power optimization
- Dual redundant hot-swappable power supplies and fixed redundant fans
- Zero-touch provisioning via Cisco Plug and Play with Cisco DNA Center integration
- Embedded security: Device Sensor, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
- Cisco Umbrella integration for DNS-layer security and threat intelligence
- Blue beacon LEDs (front and rear) for easy physical device identification
- USB-C and USB console ports for streamlined management access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48 total PoE+ ports: 12x multi-gigabit (100M/1G/2.5G/5G/10G) + 36x 10/100/1000 RJ45
- PoE budget: 740W default (expandable to 1440W with secondary power supply)
- 4x 10G SFP+ uplink ports (fixed)
- Switching capacity: 392 Gbps
- Forwarding rate: 291.66 Mpps
- StackWise-80 technology: Up to 80 Gbps stacking bandwidth, maximum 8 switches per stack
- Memory: 2 GB DRAM, 4 GB Flash
- Power supply: PWR-C5-1KWAC (default), dual redundant power supply slots
- Fans: Fixed redundant dual fan configuration
- Management: Cisco IOS XE, CLI, Web GUI, Cisco DNA Center ready
- Dimensions (HxWxD): 1.73 x 17.5 x 15.4 inches, 1U rack-mountable
- Operating temperature: -5°C to 45°C (up to 5,000 ft)
- Software license: Cisco Network Essentials (perpetual)
- Certifications: ENERGY STAR certified

FAQs

Q: What is the difference between the multi-gigabit and standard Gigabit ports?
A: The 12 multi-gigabit ports support auto-negotiation at 100M, 1G, 2.5G, 5G, and 10G speeds over standard copper cabling, making them ideal for connecting high-performance devices like Wi-Fi 6/6E access points. The 36 standard ports support 10/100/1000 speeds. All 48 ports support PoE+ (802.3at) up to 30W per port.

Q: Can I stack this switch with other Catalyst 9200 models?
A: The C9200L-48PXG-4X-E can only be stacked with other C9200L fixed models running the same Network Essentials license level. Mixed stacking with modular C9200 or C9200CX models is not supported. You need the C9200L-STACK-KIT and compatible stacking cables (sold separately) to enable StackWise-80 connectivity.

Q: How do I expand the PoE budget to 1440W?
A: Install a second identical PWR-C5-1KWAC power supply in the redundant slot to achieve 1440W total PoE budget. The switch supports dual redundant power supplies for both increased capacity and high availability. The secondary power supply must match the primary unit.

Q: What Layer 3 routing features are included with Network Essentials?
A: The Network Essentials license includes basic Layer 3 routing with static routes, RIP, EIGRP Stub, OSPF (up to 1,000 routes), PIM Stub Multicast, and VRRP. For advanced routing and automation features like SD-Access, you would need to upgrade to the Network Advantage license.

Q: Is this switch compatible with Cisco DNA Center?
A: Yes, the C9200L-48PXG-4X-E is Cisco DNA ready and supports Plug and Play provisioning, centralized policy management, and automation through Cisco DNA Center. A separate DNA subscription is required for full DNA Center integration and advanced features.
