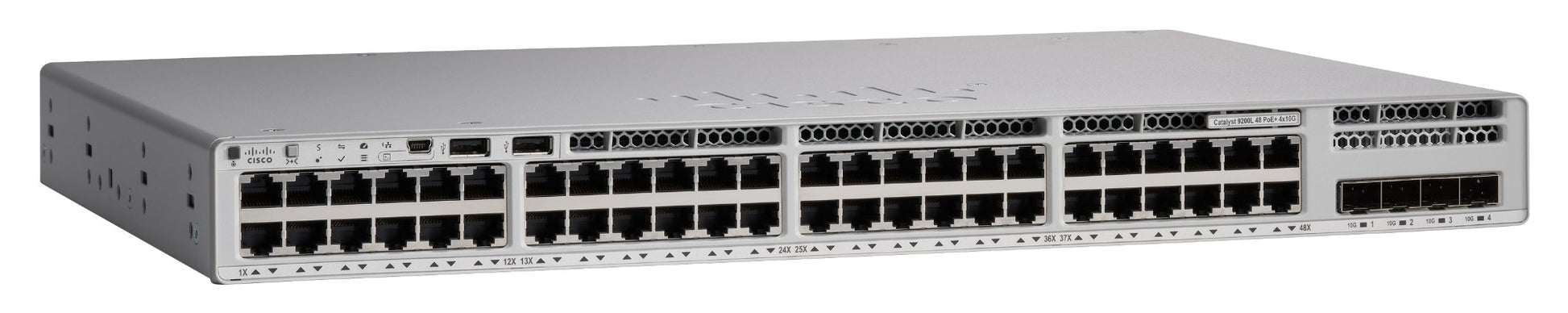

• Cisco C9200L-48PXG-4X-A switch with 48 PoE+ ports and 4x 10G uplinks
1 1

Cisco

Cisco C9200L-48PXG-4X-A | Catalyst 9200L 48-Port mGig PoE+ Switch, Network Advantage

C9200L-48PXG-4X-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L C9200L-48PXG-4X-A is a fixed-uplink access layer switch for branch offices and campus networks that need full PoE+ and multigigabit connectivity. It suits Wi-Fi 6 and Wi-Fi 6E access points, IP phones, cameras and other PoE devices, with resilient power and optional stacking.

The downlink side provides 48 PoE+ ports: 12 multigigabit ports running up to 10G and 36 ports at up to 1G, delivering up to 30W per port. Four fixed 1/10G SFP/SFP+ uplinks handle aggregation. A 1000W AC power supply provides a 740W PoE budget, rising to 1440W with a second supply, which is needed to run all 48 ports at the full 30W. Switching capacity is 392 Gbps, or 472 Gbps when stacked.

This SKU carries the Network Advantage perpetual licence, enabling Layer 3 routing including OSPF, EIGRP and IS-IS. It stacks with other C9200L models over StackWise-80 for up to 80 Gbps of stacking bandwidth and up to 8 members, and runs Cisco IOS XE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ at up to 30W per port on all 48 ports, with Perpetual PoE and Fast PoE
- Multigigabit ports suited to Wi-Fi 6 and Wi-Fi 6E access points
- Optional StackWise-80 stacking of up to 8 members
- Second field-replaceable power supply for redundancy or added PoE budget
- AES-128 MACsec encryption and policy-based segmentation
- Layer 3 routing with OSPF, EIGRP, IS-IS and RIP via Network Advantage
- Cisco IOS XE with NETCONF/RESTCONF, streaming telemetry and Plug and Play
- Managed through Cisco Catalyst Center, CLI, or Meraki dashboard cloud monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x PoE+ (12 x multigigabit up to 10G, 36 x 10/100/1000)
- Uplinks: 4 x 1/10G fixed SFP/SFP+
- Default power supply: PWR-C5-1KWAC (1000W AC)
- PoE budget: 740W with single power supply, 1440W with second power supply
- Switching capacity: 392 Gbps (472 Gbps with stacking)
- Forwarding rate: 291.66 Mpps (351 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Licence: Network Advantage (-A)
- DRAM: 2 GB
- Flash: 4 GB
- Packet buffer: 12 MB
- MAC addresses: 16,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Fans: fixed redundant
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.71 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Power supply input: 100-240 VAC, 50-60 Hz
- MTBF: 337,360 hours

FAQs

Q: Which licence does this SKU include?
A: It ships with the Network Advantage perpetual licence. Optional Cisco DNA subscriptions can be added, and all stack members must share the same licence level.

Q: What PoE budget does it provide?
A: A single PWR-C5-1KWAC power supply gives a 740W PoE budget. Adding a second PWR-C5-1KWAC raises it to 1440W, which is required to power all 48 ports at the full 30W.

Q: Can it be stacked with other Catalyst 9200 switches?
A: It stacks only with other C9200L models using the C9200L-STACK-KIT and StackWise-80 stacking cables. It cannot be mixed with modular C9200 or other Catalyst switches.

Q: Which optics work in the uplink ports?
A: The four fixed uplinks accept 1G SFP and 10G SFP+ optics, as listed in the Cisco Transceiver Module Group compatibility matrix.

Q: Which power supplies are supported?
A: The default supply is PWR-C5-1KWAC, with PWR-C5-1KWAC/2 or PWR-C5-715WDC= as the secondary supply. The DC unit requires IOS XE 17.8.1 or later.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
