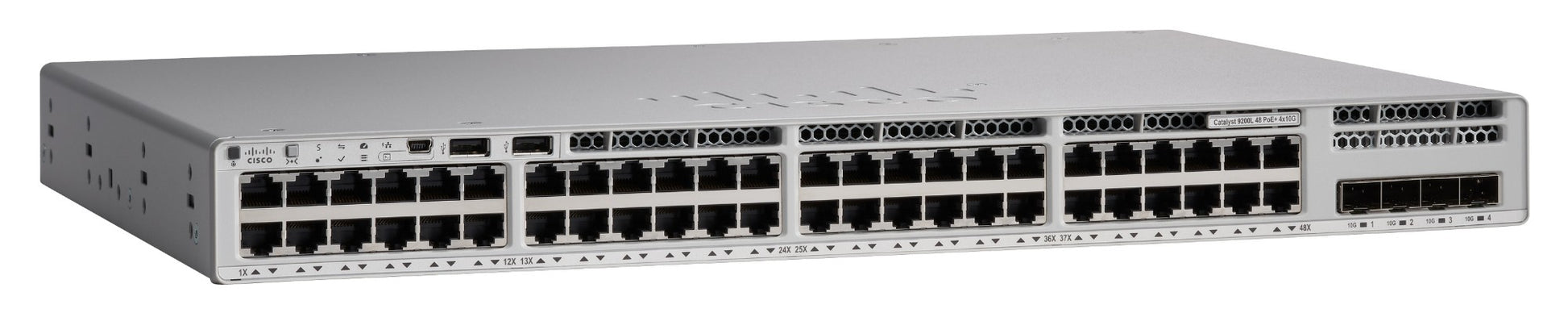

• Cisco C9200L-48PXG-2Y-E switch with 48 PoE+ ports and 2x 25G uplinks
1 1

Cisco

Cisco C9200L-48PXG-2Y-E | Catalyst 9200L 48-Port PoE+ Switch, 8x mGig, Network Essentials

C9200L-48PXG-2Y-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L is a fixed-uplink access layer switch for branch offices and campus edge deployments. It powers PoE+ endpoints such as IP phones, cameras and Wi-Fi access points, and its multigigabit ports suit Wi-Fi 6 and 6E access points.

This model provides 48 PoE+ copper ports: 8 multigigabit ports up to 10G and 40 ports at 1G. Two fixed 1/10/25G SFP28 uplinks connect to the distribution layer. Switching capacity is 340 Gbps (420 Gbps when stacked) with a forwarding rate of 252.97 Mpps. The PoE budget is 740W with a single 1000W AC power supply and 1440W with a second supply. This SKU ships with the Network Essentials licence and runs Cisco IOS XE.

It stacks over StackWise-80 with up to 8 members, but only with other C9200L models at the same licence level. The SFP28 uplinks accept SFP, SFP+ and SFP28 optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ up to 30W per port with Perpetual PoE and Fast PoE
- Multigigabit ports up to 10G for Wi-Fi 6 and 6E access points
- Dual field-replaceable power supplies for redundancy or added PoE budget
- StackWise-80 stacking with a single management and control plane
- Layer 3 features including OSPF, EIGRP, IS-IS, RIP and routed access
- Cisco SD-Access support with limited fabric capability
- AES-128 MACsec encryption and policy-based segmentation
- IOS XE programmability with NETCONF, RESTCONF and YANG, plus Plug and Play
- Full Flexible NetFlow and eight egress queues per port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 PoE+ (8 x mGig up to 10G, 40 x 1G)
- Uplinks: 2 x 1/10/25G fixed SFP28
- Default power supply: PWR-C5-1KWAC (1000W AC)
- PoE budget: 740W with one PSU, 1440W with a second PSU
- Switching capacity: 340 Gbps (420 Gbps with stacking)
- Forwarding rate: 252.97 Mpps (313 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Licence: Network Essentials
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- ACL scale entries: 1,500
- QoS scale entries: 1,000
- DRAM: 2 GB
- Flash: 4 GB
- Packet buffer: 12 MB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Fans: Fixed redundant
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.71 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- MTBF: 337,260 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the Network Essentials licence. Optional Cisco DNA Essentials or Advantage subscriptions can be added, and Network Advantage is available as an upgrade.

Q: What is the PoE budget?
A: The PoE budget is 740W with a single PWR-C5-1KWAC power supply and 1440W when a second PWR-C5-1KWAC is installed.

Q: What can this switch stack with?
A: It stacks only with other C9200L models at the same licence level, up to 8 members, using the C9200L-STACK-KIT and StackWise-80 cables. It cannot stack with modular C9200 or C9200CX models.

Q: What optics do the uplinks accept?
A: The two fixed uplinks are SFP28 ports that accept SFP, SFP+ and SFP28 optics at 1G, 10G and 25G.

Q: Can I manage it through the Meraki dashboard?
A: Yes. Besides the CLI, WebUI and Cisco Catalyst Center, the switch supports cloud monitoring and management through the Meraki dashboard.
