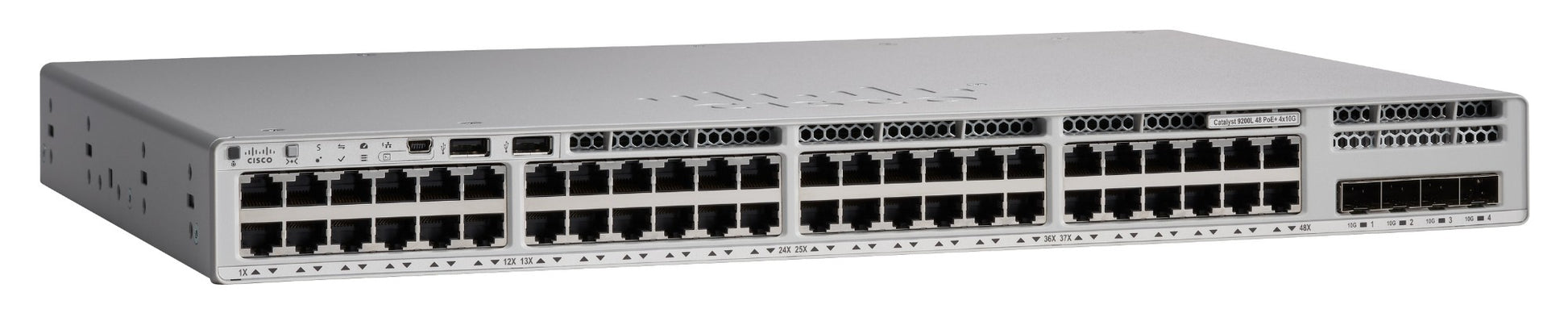

• Cisco C9200L-48PXG-2Y-A switch with 48 PoE+ ports and 2x 25G uplinks
1 1

Cisco

Cisco C9200L-48PXG-2Y-A | Catalyst 9200L 48-Port PoE+ Switch, 2x 25G, Network Advantage

C9200L-48PXG-2Y-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L is a fixed-uplink, stackable Layer 3 access switch for branch offices and campus access layers. This model provides 48 full PoE+ ports, 8 of them multigigabit up to 10G and 40 at 1G, which suits Wi-Fi 6/6E access points as well as IP phones and cameras.

The two fixed 1/10/25G uplinks connect back to the distribution or core layer. A 1KW AC power supply delivers a 740W PoE budget, and a second PSU raises that to as much as 1440W. Switching capacity is 340 Gbps, or 420 Gbps when stacked, with a forwarding rate of 252.97 Mpps. StackWise-80 offers 80 Gbps of stacking bandwidth across up to 8 members. This SKU ships with the Network Advantage perpetual licence tier, covering advanced routing, segmentation, multicast and security features.

Stacking is possible only with other C9200L models at the same licence level, using the C9200L-STACK-KIT. It cannot be stacked with C9200 modular models.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ (up to 30W per port) on all 48 ports with Perpetual PoE and Fast PoE
- Multigigabit ports for Wi-Fi 6/6E access points
- StackWise-80 stacking with a single management and control plane
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- AES-128 MACsec encryption, policy-based segmentation and secure boot with image signing
- Flexible NetFlow with 32,000 flow entries
- Cisco IOS XE with NETCONF/RESTCONF programmability and streaming telemetry
- Plug and Play zero-touch provisioning and embedded WebUI
- Energy Efficient Ethernet and per-port PoE power sensing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x PoE+ (8 x mGig up to 10G, 40 x 1G)
- Uplinks: 2 x 1/10/25G fixed
- Default power supply: PWR-C5-1KWAC
- PoE budget: 740W with one PSU, up to 1440W with two 1KW PSUs
- Switching capacity: 340 Gbps (420 Gbps with stacking)
- Forwarding rate: 252.97 Mpps (313 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Licence tier: Network Advantage
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- ACL scale entries: 1,500
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Packet buffer: 12 MB
- DRAM: 2 GB
- Flash: 4 GB
- Fans: Fixed redundant
- Dimensions (chassis, PSU and fans): 4.4 x 44.5 x 39.1 cm, 1RU
- Weight: 5.71 kg
- MTBF: 337,260 hours
- Operating temperature: -5 to 45 C up to 1500 m, -5 to 40 C up to 3000 m
- Relative humidity: 5% to 90% non-condensing
- Minimum IOS XE: 16.9.2

FAQs

Q: Which licence tier does this switch ship with?
A: The -A suffix means it ships with the Network Advantage perpetual licence tier. Optional Cisco DNA subscriptions are available, and the DNA tier must match the Network licence tier.

Q: What PoE budget does it provide?
A: It provides 740W of PoE with the default PWR-C5-1KWAC power supply. Adding a second 1KW AC supply raises the available PoE to as much as 1440W.

Q: Can it be stacked with other Catalyst 9200 switches?
A: It stacks only with other C9200L models at the same licence level, using the C9200L-STACK-KIT. StackWise-80 supports up to 8 members and cannot be used with C9200 modular models.

Q: What are the uplink ports and how do I choose optics?
A: The uplinks are two fixed 1/10/25G SFP-based ports. Check the Cisco Transceiver Module Group compatibility matrix to select supported optics.

Q: Does it support DC power?
A: Yes. The PWR-C5-715WDC DC supply (-40 to -72 VDC) is supported from IOS XE 17.8.1 and provides 485W of PoE with a single supply or 970W with two.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
