• Cisco C9200L-48PL-4X-E switch with 48 PoE+ ports and 4x 10G uplinks
1 1

Cisco

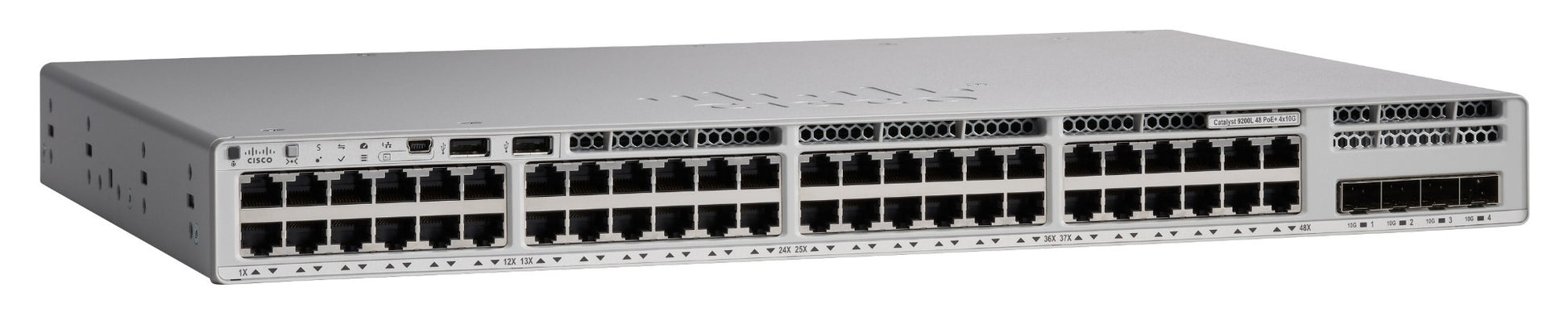

Cisco C9200L-48PL-4X-E | Catalyst 9200L 48-Port Partial PoE+ Switch, 370W, 4x 10G SFP+

C9200L-48PL-4X-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 9200L C9200L-48PL-4X-E is an enterprise-grade Layer 3 access switch designed for cost-effective branch and campus deployments. With 48 Gigabit Ethernet ports featuring partial PoE+ support and 370W power budget, plus four fixed 10G SFP+ uplinks, it delivers reliable performance for powering IP phones, wireless access points, and security cameras. Running Cisco IOS XE with Network Essentials license, the switch supports StackWise-80 technology for stacking up to 8 units and includes dual redundant power supply support for enhanced reliability.

Features

UADP 2.0 Mini ASIC with programmable pipeline for optimized Layer 2/3 forwarding, ACLs, and QoS
- Layer 2 features: VLANs (4096), STP/RSTP/MSTP, link aggregation (LACP), LLDP, UDLD
- Layer 3 features: Static routing, RIPv1/v2, RIPng, OSPF Routed Access, IPv4/IPv6 dual stack
- Quality of Service: 802.1p CoS, DSCP-based QoS, eight egress queues per port, weighted tail drop (WTD)
- Security: IEEE 802.1X authentication, MACsec (AES-128), TrustSec SGT, port security, DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard
- Network segmentation: Up to 4 Virtual Networks (VNs) for policy-based segmentation
- Energy Efficient Ethernet (EEE) on RJ45 ports for reduced power consumption
- Per-port PoE power sensing and configurable power allocation for intelligent PoE management
- Plug and Play (PnP) for zero-touch provisioning and simplified deployment
- Model-driven programmability with YANG models, NETCONF, RESTCONF APIs
- Streaming telemetry for real-time network monitoring and analytics
- Cisco DNA Center integration for centralized automation, assurance, and security policy enforcement
- Blue beacon LEDs (front and rear) for easy physical identification in racks
- Flexible software licensing with perpetual Network Essentials included; optional DNA subscriptions available

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000 Gigabit Ethernet RJ45 ports with partial PoE+ (802.3at)
- PoE+ power budget: 370W
- 4x 10G SFP+ fixed uplink ports
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- Stacking: StackWise-80 technology, up to 80 Gbps stacking bandwidth, max 8 switches per stack
- Layer 3 capabilities with Network Essentials license: Static routing, RIPv1/v2, RIPng, OSPF (Routed Access)
- Memory and processing: UADP 2.0 Mini ASIC with integrated CPU
- Operating system: Cisco IOS XE (16.9.2 or later)
- Management: CLI, Web GUI, SNMP, NETCONF, RESTCONF, Cisco DNA Center compatible
- Redundancy: Dual field-replaceable power supply slots (1x 1000W AC PSU included)
- Fans: Dual fixed fans (non-field replaceable)
- Rack-mountable: Standard 19-inch rack, 1RU
- Security features: MACsec encryption (AES-128), IEEE 802.1X, TrustSec, port security

FAQs

Q: What is the difference between partial PoE+ and full PoE+ models?
A: The C9200L-48PL-4X-E is a partial PoE+ model with 370W power budget, suitable for deployments with moderate PoE requirements. The full PoE+ variant (C9200L-48P-4X-E) offers 740W and supports PoE+ on all 48 ports simultaneously. Choose partial PoE if your deployment has fewer power-hungry devices like IP phones and access points, or full PoE for dense deployments requiring maximum power delivery.

Q: Can I stack this switch with other Catalyst 9200 models?
A: Yes, the C9200L-48PL-4X-E supports StackWise-80 stacking with up to 8 switches and 80 Gbps stacking bandwidth. However, you can only stack C9200L models with other C9200L models that have the same license level. Mixed stacking with modular C9200 or other Catalyst series switches is not supported.

Q: What routing capabilities are included with the Network Essentials license?
A: The Network Essentials license provides robust Layer 2 switching and basic Layer 3 routing protocols including static routing, RIPv1/v2, RIPng, and OSPF Routed Access. For advanced routing protocols such as full OSPF, EIGRP, and IS-IS, you would need to upgrade to the Network Advantage license.

Q: Is the power supply hot-swappable and redundant?
A: Yes, the C9200L-48PL-4X-E supports dual redundant power supplies. It ships with one 1000W AC power supply, and a second identical power supply can be added for redundancy. The primary power supply is field-replaceable, and the secondary is hot-swappable, ensuring continuous operation during power supply maintenance or failure.

Q: What is the maximum PoE power I can achieve with this switch?
A: The C9200L-48PL-4X-E provides 370W PoE+ budget with a single power supply. This model is designed for partial PoE+ deployment, meaning not all ports can draw maximum PoE+ power simultaneously. If you require higher PoE capacity, consider the full PoE+ model (C9200L-48P-4X-E) which offers 740W with a single PSU or up to 1440W with dual power supplies.
