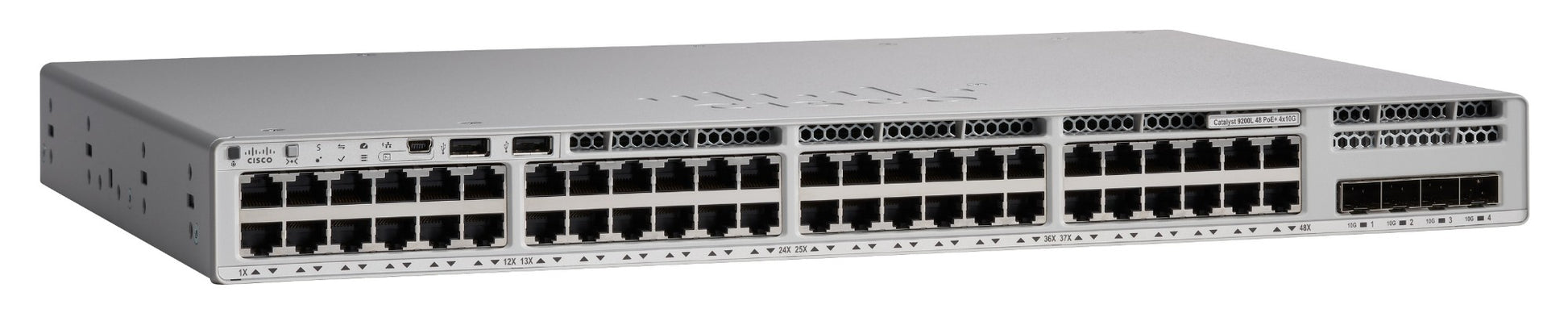

• Cisco C9200L-48PL-4X-A switch with 48 PoE+ ports and 4x 10G SFP+
1 1

Cisco

Cisco C9200L-48PL-4X-A | Catalyst 9200L 48-Port Gigabit PoE+ Switch, 370W, 4x 10G SFP+

C9200L-48PL-4X-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 9200L-48PL-4X-A is a high-performance fixed Layer 3 access switch designed for enterprise campus and branch deployments. Featuring 48 Gigabit Ethernet ports with partial PoE+ support delivering 370W total PoE budget and 4x 10G SFP+ uplinks, this switch delivers robust connectivity for power-hungry devices like IP phones, wireless access points, and surveillance cameras. Built on the Cisco UADP 2.0 ASIC and running Cisco IOS XE with Network Advantage licensing, it offers advanced Layer 3 routing, programmability, and intent-based networking capabilities with optional StackWise-80 stacking for simplified management.

Features

Cisco IOS XE operating system with model-driven programmability and streaming telemetry
- UADP 2.0 Mini ASIC with programmable pipeline for flexible table allocation
- Layer 3 routing: static routes, OSPF, EIGRP, RIP, BGP, VRRP, multicast routing (PIM-SM, PIM-SSM)
- Advanced QoS with 8 hardware queues per port and flexible packet classification
- IEEE 802.1X authentication, MAB, and web authentication for network access control
- MACsec encryption (AES-128) on downlink ports for wire-rate, hop-by-hop encryption
- Cisco TrustSec and Software-Defined Segmentation for policy-based access control
- Flexible NetFlow (FNF) for deep traffic visibility and analytics
- Energy Efficient Ethernet (IEEE 802.3az) with automatic low-power mode for idle ports
- Jumbo frame support (up to 9,198 bytes)
- Per-port PoE power management and sensing for intelligent power allocation
- Dual beacon LEDs (front and rear) for easy physical device identification
- SPAN, RSPAN, and ERSPAN for comprehensive traffic monitoring
- Hot and cold patching for in-service software updates with minimal disruption
- StackWise-80 optional stacking (C9200L-STACK-KIT required) for unified management plane
- Plug-and-Play (PnP) for zero-touch provisioning via Cisco DNA Center or Network Plug and Play
- Dual redundant power supply support with field-replaceable PSUs
- Fixed dual redundant fans for high availability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000BASE-T RJ45 ports with partial PoE+ (802.3at) support
- Total PoE budget: 370W (with default PWR-C5-600WAC power supply), expandable to 740W with optional redundant PSU
- 4x 10G SFP+ fixed uplink ports
- Switching capacity: 176 Gbps (standalone), 256 Gbps (stacked)
- Forwarding rate: 130.95 Mpps (standalone), 190 Mpps (stacked)
- Optional StackWise-80 stacking with up to 80 Gbps stacking bandwidth (supports up to 8 switches)
- Memory: 2GB DRAM, 4GB Flash
- Packet buffer: 6 MB
- Layer 3 routing support: OSPF, EIGRP, RIP, VRRP, PIM-SM, PIM-SSM, policy-based routing
- VLANs supported: 1,024; SVIs: 512
- IPv4 routes: 11,000 (8,000 direct + 3,000 indirect); IPv6 routing entries: 1,500
- Flexible NetFlow (FNF) entries: 16,000 flows
- ACL scale: 1,500 entries; QoS scale: 1,000 entries
- Management: CLI, Web UI, SNMP, RMON, Cisco DNA Center, Plug-and-Play (PnP)
- Dual redundant fixed fans; dual redundant power supply slots (PWR-C5-600WAC default)
- Dimensions: 1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm), 1U rack-mountable
- Operating temperature: -5°C to 45°C
- Power consumption: Varies by configuration
- Certifications: Energy Efficient Ethernet (EEE), IEEE 802.3az

FAQs

Q: What does partial PoE+ mean on the C9200L-48PL-4X-A?
A: Partial PoE+ means not all 48 ports can simultaneously deliver full PoE+ power. The switch has a 370W PoE budget with the default power supply, which is shared across PoE-enabled ports. Adding an optional redundant PWR-C5-600WAC power supply increases the total PoE budget to 740W. The switch intelligently allocates power based on connected device requirements and configured priorities.

Q: Can the C9200L-48PL-4X-A be stacked with other Catalyst 9200 models?
A: Yes, the C9200L-48PL-4X-A supports optional StackWise-80 stacking using the C9200L-STACK-KIT. You can stack up to 8 C9200L switches for up to 80 Gbps of stacking bandwidth and unified management. However, you cannot mix C9200L fixed models with C9200 modular models or other Catalyst switch series like the 2960-X in the same stack.

Q: What is included with the Network Advantage license on this switch?
A: The Network Advantage license provides full Layer 3 routing capabilities including OSPF, EIGRP, BGP, and policy-based routing, along with advanced security features like MACsec encryption and TrustSec segmentation. It also includes Cisco DNA essentials for plug-and-play provisioning, EasyQoS, and basic network analytics. Network Advantage is required for SD-Access fabric edge deployments and full enterprise routing features.

Q: What SFP+ modules are compatible with the 4x 10G uplink ports?
A: The C9200L-48PL-4X-A supports Cisco 10G SFP+ transceivers including SFP-10G-SR for multimode fiber, SFP-10G-LR for single-mode fiber, and direct attach copper (DAC) cables. The uplinks auto-negotiate at 1G or 10G speeds depending on the installed optic. Always use Cisco-approved optics to ensure compatibility and maintain warranty coverage.

Q: Is this switch compatible with Cisco DNA Center for automation?
A: Yes, the C9200L-48PL-4X-A is fully compatible with Cisco DNA Center and supports intent-based networking features including automated provisioning via Plug-and-Play, software image management, policy-based segmentation, and network assurance. The switch runs Cisco IOS XE which provides model-driven programmability with NETCONF, RESTCONF, and YANG data models for advanced automation workflows.
