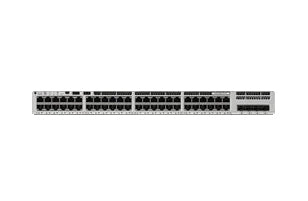

• Cisco C9200L-48PL-4G-E switch with white black keyboard and silver accents
1 1

Cisco

Cisco C9200L-48PL-4G-E | Catalyst 9200L 48-Port Partial PoE+ Switch, 370W, 4x 1G SFP

C9200L-48PL-4G-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 9200L C9200L-48PL-4G-E is a stackable Layer 3 access switch designed for enterprise and branch office deployments. Featuring 48 Gigabit Ethernet ports with partial PoE+ support and a 370W power budget, it delivers cost-effective connectivity for IP phones, wireless access points, and networked devices. With StackWise-80 technology, fixed dual redundant fans, and Network Essentials licensing, this switch provides reliable performance with advanced security and automation capabilities powered by Cisco IOS XE.

Features

Cisco IOS XE operating system with model-driven programmability
- UADP 2.0 Mini ASIC with programmable pipeline
- Layer 2 switching: VLANs (1,024), STP/RSTP/MSTP, Link Aggregation (LACP)
- Layer 3 routing: Static, RIPv1/v2, RIPng, OSPF, equal-cost routing
- Security: MACsec encryption (AES-128), 802.1X authentication, port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- QoS: 8 hardware queues per port, classification, marking, policing, shaping
- Advanced network monitoring: Flexible NetFlow (FNF) with 16,000 entries
- Energy Efficient Ethernet (EEE) on RJ-45 ports
- Per-port PoE power sensing and consumption control
- Blue beacon LEDs (front and back) for easy switch identification
- Plug and Play (PnP) for zero-touch provisioning
- Cisco TrustSec and policy-based segmentation ready
- Optional SD-Access fabric edge support (with appropriate DNA license)
- Hot-swappable secondary power supply support
- Template-based configurable ACL and QoS allocation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000 Ethernet ports with partial PoE+ (802.3at)
- PoE budget: 370W with single 600W AC power supply (PWR-C5-600WAC)
- 4x 1G SFP fixed uplinks
- Switching capacity: 104 Gbps (standalone), 184 Gbps (stacked)
- Forwarding rate: 77.38 Mpps (standalone), 137 Mpps (stacked)
- Stacking: StackWise-80 with 80 Gbps bandwidth, up to 8 switches
- Memory: Supports up to 11,000 IPv4 routes, 1,024 VLANs, 512 SVIs
- DRAM and flash storage for IOS XE software
- Fixed dual redundant fans (non-field replaceable)
- Dual redundant power supply slots (field-replaceable)
- Management: CLI, SNMP v1/v2c/v3, NETCONF, RESTCONF, RMON
- Rack-mountable 1U form factor
- Power consumption: 600W maximum
- Network Essentials perpetual license included

FAQs

Q: What does 'partial PoE+' mean on the C9200L-48PL-4G-E?
A: Partial PoE+ means that not all 48 ports can simultaneously deliver full 30W PoE+ power. The switch has a 370W PoE budget that is shared across the PoE-capable ports. You can power approximately 24 ports at 15.4W (PoE) or 12 ports at 30W (PoE+) concurrently, making it ideal for deployments that don't require full power on every port.

Q: Can this switch be stacked with other Catalyst 9200 models?
A: Yes, the C9200L-48PL-4G-E supports StackWise-80 and can stack with other C9200L fixed uplink models at the same license level (Network Essentials). You can stack up to 8 switches with 80 Gbps stacking bandwidth. However, it cannot be stacked with modular C9200 models or other Catalyst switch series like the 2960-X or 3850.

Q: What routing protocols are supported with Network Essentials?
A: The Network Essentials license supports basic IP unicast routing protocols including static routing, RIPv1, RIPv2, RIPng, basic OSPF, and Routed Access. For advanced protocols like full OSPF, EIGRP, IS-IS, and policy-based routing, you would need to upgrade to the Network Advantage license.

Q: Does this switch require a DNA license to operate?
A: The C9200L-48PL-4G-E includes a perpetual Network Essentials license and will function without a DNA subscription. However, Cisco DNA licenses unlock additional capabilities like SD-Access, network assurance via DNA Center, and encrypted traffic analytics. DNA Essentials is often recommended for enhanced management and automation.

Q: What are the typical use cases for this switch?
A: This switch is ideal for small to medium enterprise access layer deployments, branch offices, and environments with moderate PoE requirements. Common applications include connecting IP phones, wireless access points, security cameras, and standard workstations where not all devices require PoE simultaneously. The Layer 3 capabilities and stacking make it suitable for distributed campus networks.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
