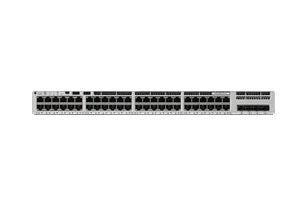

• Cisco C9200L-48PL-4G-A switch with white black keyboard and PoE ports
1 1

Cisco

Cisco C9200L-48PL-4G-A | Catalyst 9200L 48-Port PoE+ Switch, 370W, Network Advantage

C9200L-48PL-4G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L is a fixed-uplink, stackable access switch built for branch offices and small campus networks. This 48-port model delivers partial PoE+ to IP phones, Wi-Fi access points and IoT endpoints, with Layer 3 routed access and Cisco IOS XE for on-premises or cloud management.

There are 48 10/100/1000 downlink ports with partial PoE+ and 4 fixed 1G SFP uplinks. With the default PWR-C5-600WAC supply the switch provides a 370W PoE budget, rising to 740W with a second 600W supply. Switching capacity is 104 Gbps (184 Gbps when stacked) with a forwarding rate of 77.38 Mpps. This SKU carries the perpetual Network Advantage licence tier, which adds advanced routing, segmentation, multicast, scale and security capabilities over Network Essentials.

StackWise-80 stacking joins up to 8 C9200L members under a single management and control plane using the C9200L-STACK-KIT. The 1RU chassis uses fixed redundant fans and field-replaceable power supplies, and supports 1G SFP optics in the uplink ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Partial PoE+ (IEEE 802.3at, up to 30W per port) with Perpetual PoE and Fast PoE
- StackWise-80 backplane stacking with a single management and control plane
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- AES-128 MACsec encryption and policy-based segmentation
- Cisco SD-Access support (limited, 1 virtual network)
- Model-driven programmability with streaming telemetry, NETCONF/RESTCONF and cold patching
- Plug and Play zero-touch provisioning
- Cloud management option via the Meraki dashboard
- Cisco Trust Anchor technologies with image signing and Secure Boot

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000, partial PoE+
- Uplink ports: 4 x 1G fixed SFP
- Licence tier: Network Advantage (perpetual)
- Default power supply: PWR-C5-600WAC (600W AC)
- PoE budget: 370W with single primary PSU, 740W with second 600W PSU
- Switching capacity: 104 Gbps (184 Gbps with stacking)
- Forwarding rate: 77.38 Mpps (137 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Packet buffer: 6 MB
- DRAM: 2 GB
- Flash: 4 GB
- MAC addresses: 16,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions chassis only (H x W x D): 4.4 x 44.5 x 28.8 cm
- Weight: 4.80 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Relative humidity: 5% to 90% non-condensing
- Fans: fixed, redundant
- Form factor: 1RU rack-mount
- Software: Cisco IOS XE 16.9.2 or later

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Network Advantage licence, indicated by the -A suffix. Optional term subscriptions such as Cisco DNA Advantage or Catalyst Advantage are available, and the DNA tier must match the network licence.

Q: How much PoE power does it provide?
A: With the default 600W AC supply (PWR-C5-600WAC) the PoE budget is 370W. Adding a second 600W supply (PWR-C5-600WAC/2) raises it to 740W.

Q: What can I stack it with?
A: It stacks only with other C9200L models at the same licence level using the C9200L-STACK-KIT, up to 8 members. It cannot stack with modular C9200 or other Catalyst families.

Q: Which power supplies are compatible?
A: The C5 series supplies are supported: PWR-C5-125WAC, PWR-C5-600WAC, PWR-C5-1KWAC and PWR-C5-715WDC. The DC supply gives 485W PoE with a single unit, and can be mixed with AC supplies.

Q: Can the uplink ports be changed to 10G?
A: No. The four uplinks are fixed 1G SFP ports on this C9200L model and support 1G SFP optics.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
