• Cisco C9200L-48P-4X-E switch with 48 PoE+ ports and 4x 10G uplinks
1 1

Cisco

Cisco C9200L-48P-4X-E | Catalyst 9200L 48-Port PoE+ Switch, Network Essentials

C9200L-48P-4X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

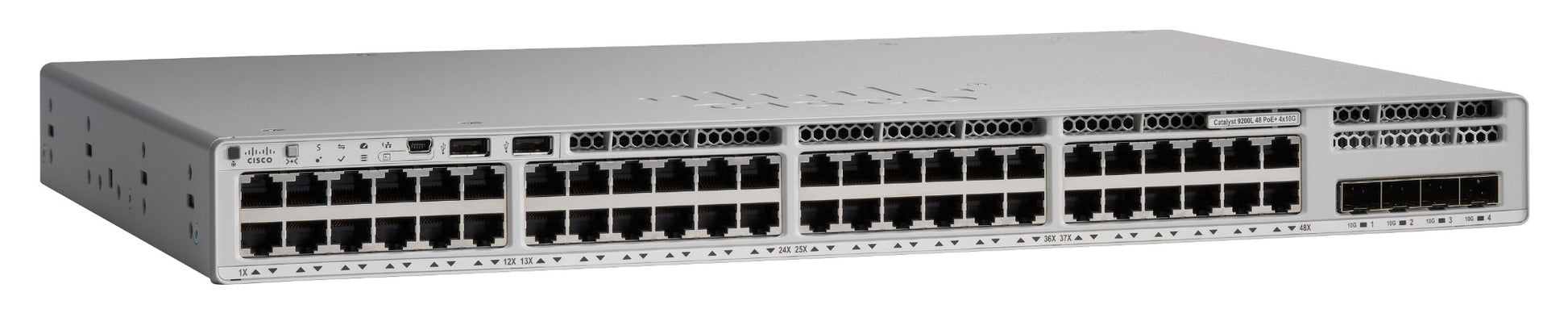

The Catalyst 9200L is a fixed-configuration access switch for branch offices and campus edge networks where every port needs full PoE+ power. This model provides 48 Gigabit copper ports with up to 30 W per port for IP phones, Wi-Fi access points, cameras and IoT endpoints, and four fixed 1/10G SFP+ uplinks to the distribution or core layer. It runs Cisco IOS XE with the Network Essentials feature set.

The switch offers 176 Gbps of switching capacity (256 Gbps when stacked) and a forwarding rate of 130.95 Mpps. PoE+ budget is 740 W with a single PWR-C5-1KWAC power supply and 1440 W with a second supply fitted. StackWise-80 stacking at 80 Gbps supports up to 8 members with a single management and control plane. The switch is a 1RU rack-mount unit with fixed redundant fans.

This SKU carries the perpetual Network Essentials licence tier, covering foundational Layer 2 and Layer 3 switching, automation, visibility and security. It can be managed through the CLI, WebUI, Cisco Catalyst Center or Meraki dashboard cloud monitoring. Stacking is available only with other C9200L models at the same licence level, using the C9200L-STACK-KIT.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ on all 48 ports (up to 30 W per port) with Perpetual PoE and Fast PoE
- Cisco IOS XE with NETCONF/RESTCONF programmability and streaming telemetry
- StackWise-80 backplane stacking with a single management and control plane
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- AES-128 MACsec encryption, policy-based segmentation and Cisco Trust Anchor technologies
- Limited Cisco SD-Access support with 1 virtual network
- Plug and Play (PnP) provisioning
- Energy Efficient Ethernet, per-port PoE power sensing and blue beacon LEDs
- Hot-swappable AC/DC power supplies with a second PSU for redundancy or extra PoE budget

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000 full PoE+
- Uplinks: 4 x 1/10G fixed SFP+
- Switching capacity: 176 Gbps (256 Gbps with stacking)
- Forwarding rate: 130.95 Mpps (190 Mpps with stacking)
- PoE+ budget: 740 W with one PSU, 1440 W with two PSUs
- Default power supply: PWR-C5-1KWAC (1000 W AC)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Licence tier: Network Essentials
- DRAM: 2 GB
- Flash: 4 GB
- Packet buffer: 6 MB
- MAC addresses: 16,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Fans: Fixed redundant
- Form factor: 1RU rack-mount
- Dimensions (H x W x D): 4.4 x 44.5 x 28.8 cm chassis
- Weight: 4.80 kg
- Operating temperature: -5 C to +45 C up to 1500 m
- Power consumption (115 VAC, weighted average): 63.49 W
- Management ports: RJ-45 or mini USB console, RJ-45 Ethernet
- Minimum software: Cisco IOS XE 16.9.2 or later

FAQs

Q: Does this switch need a subscription to operate?
A: This SKU ships with the perpetual Network Essentials licence tier. Cisco DNA subscriptions are separate options, and the DNA tier must match the Network licence tier. Smart Licensing via a Smart Account applies.

Q: What PoE budget does it provide?
A: The PoE+ budget is 740 W with a single PWR-C5-1KWAC power supply and 1440 W with two. The second supply can be fitted for redundancy or additional PoE power.

Q: Can it be stacked with other Catalyst switches?
A: It stacks only with other C9200L models at the same licence level, using the C9200L-STACK-KIT. It cannot be stacked with C9200 modular models or other Catalyst families.

Q: Which power supplies does it work with?
A: It supports the C5 family: PWR-C5-1KWAC, PWR-C5-600WAC, PWR-C5-125WAC and PWR-C5-715WDC. The default primary supply is the 1000 W AC PWR-C5-1KWAC.

Q: Which optics work in the SFP+ uplinks?
A: The four uplinks accept 1G SFP and 10G SFP+ optics listed in the Cisco TMG compatibility matrix. It requires Cisco IOS XE 16.9.2 or later.
