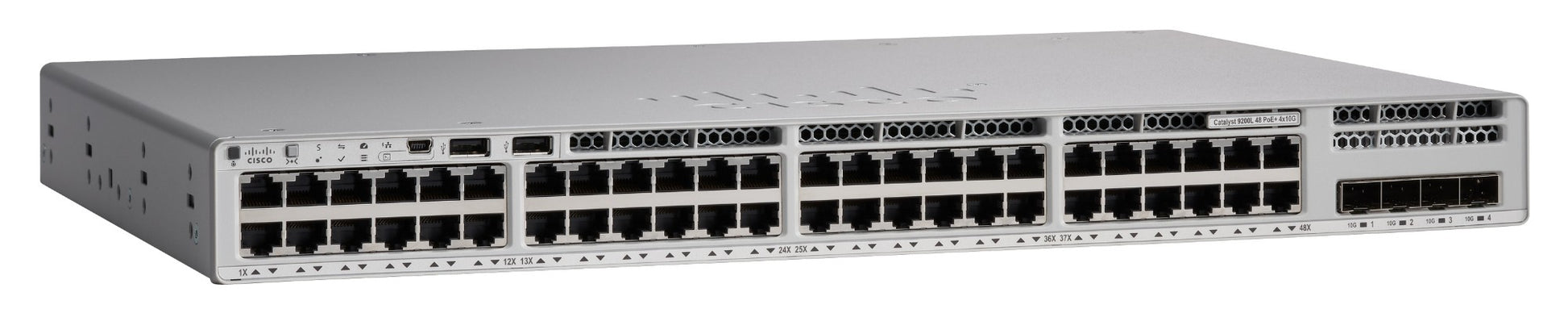

• Cisco C9200L-48P-4X-A switch with 48 PoE+ ports and 4x 10G uplinks
1 1

Cisco

Cisco C9200L-48P-4X-A | Catalyst 9200L 48-Port Gigabit PoE+ Switch, 740W, 4x 10G SFP+

C9200L-48P-4X-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9200L-48P-4X-A is an enterprise-grade Layer 3 switch designed for high-density campus and branch deployments. With 48 Gigabit Ethernet PoE+ ports delivering 740W of power and four fixed 10G SFP+ uplinks, this switch provides exceptional performance and scalability for bandwidth-intensive applications including Wi-Fi 6 access points, IP cameras, and VoIP phones. Running Network Advantage software, it delivers full Layer 3 routing capabilities, MACsec encryption, and support for Cisco DNA Center automation.

Features

Network Advantage software license with full Layer 3 routing (OSPF, EIGRP, BGP, IS-IS)
- UADP 2.0 Mini ASIC with programmable pipeline for flexible packet processing
- Advanced security: MACsec AES-128 encryption, IEEE 802.1X authentication, port security
- VRF-Lite for network segmentation and multi-tenancy environments
- Quality of Service (QoS): 8 egress queues per port, DSCP, CoS, policy-based QoS
- Flexible NetFlow (FNF) with 16,000 flow entries for traffic analysis and monitoring
- Energy Efficient Ethernet (IEEE 802.3az) with per-port power management
- Redundant power supply support for high availability (dual PSU slots)
- Perpetual PoE: Maintains PoE power during switch reboot to prevent device downtime
- Cisco Plug and Play (PnP) for zero-touch provisioning and deployment
- Blue Beacon LED for easy physical device identification (front and rear)
- Jumbo frame support up to 9,198 bytes
- SPAN and RSPAN for traffic mirroring and network troubleshooting
- IPv6 ready with full dual-stack IPv4/IPv6 support
- Access Control Lists (ACLs): 1,500 entries for traffic filtering and security

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000 PoE+ RJ45 ports (IEEE 802.3at, up to 30W per port)
- 4x 10G SFP+ fixed uplink ports
- 740W PoE budget (default with single PSU), expandable to 1440W with secondary power supply
- Switching capacity: 176 Gbps
- Forwarding rate: 261.9 Mpps
- Memory: 2 GB DRAM, 4 GB Flash
- MAC address table: 16,000 entries
- IPv4 routing entries: 3,000; IPv6 routing entries: 1,500
- VLAN support: 1,024 VLAN IDs; 512 Switched Virtual Interfaces (SVIs)
- Stacking: StackWise-80 (80 Gbps bandwidth, up to 8 switches)
- Default power supply: PWR-C5-1KWAC (1000W AC)
- Redundant fixed fans (non-field-replaceable)
- Dimensions: 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.8 cm), 1RU
- Management: Cisco IOS XE, CLI, Web GUI, SNMP, Cisco DNA Center
- Operating temperature: -5°C to +45°C (up to 5,000 ft)
- Certifications: ENERGY STAR certified

FAQs

Q: What is the difference between Network Advantage and Network Essentials licensing?
A: Network Advantage includes full Layer 3 routing protocols (OSPF, EIGRP, BGP, IS-IS), VRF-Lite for network segmentation, and advanced QoS features. Network Essentials provides Layer 2 switching and basic Layer 3 static routing. The C9200L-48P-4X-A comes with Network Advantage pre-installed for full enterprise routing capabilities.

Q: Can I stack this switch with other Catalyst 9200 models?
A: Yes, the C9200L-48P-4X-A supports StackWise-80 stacking with up to 8 switches and 80 Gbps stack bandwidth using the optional C9200L-STACK-KIT. However, you can only stack C9200L fixed models with other C9200L models of the same license tier. Mixed stacking with C9200 modular or C9200CX compact models is not supported.

Q: How many PoE devices can this switch power simultaneously?
A: With the default 740W PoE budget, the switch can power up to 24 devices at full 30W PoE+ power, or all 48 ports at 15.4W. With an optional second power supply (PWR-C5-1KWAC), the total PoE budget increases to 1440W, allowing full 30W PoE+ to all 48 ports simultaneously.

Q: Is this switch compatible with Cisco DNA Center for automation?
A: Yes, the C9200L-48P-4X-A is fully compatible with Cisco DNA Center for network automation, analytics, and assurance. It also supports Cisco Software-Defined Access (SD-Access) for policy-based segmentation and zero-trust security, and can be monitored via cloud-based Catalyst on Meraki dashboard.

Q: What uplink modules or transceivers are recommended for the 10G SFP+ ports?
A: The four fixed 10G SFP+ uplinks support Cisco 10GBASE SFP+ transceivers including SFP-10G-SR (multimode, 300m), SFP-10G-LR (single-mode, 10km), and direct-attach copper (DAC) cables for short-distance connections. These uplinks provide high-speed connectivity to distribution or core switches for aggregating traffic from the 48 access ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
