• Cisco C9200L-48P-4G-E switch with 48 PoE+ ports and 4 SFP uplinks
1 1

Cisco

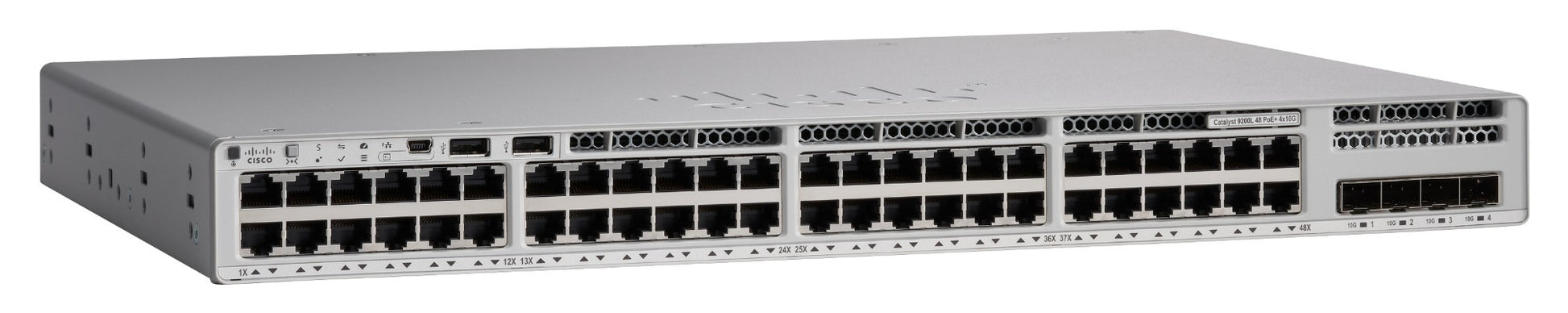

Cisco C9200L-48P-4G-E | Catalyst 9200L 48-Port Gigabit PoE+ Switch, 740W, 4x 1G SFP

C9200L-48P-4G-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9200L-48P-4G-E is a Layer 3 enterprise access switch with 48 Gigabit Ethernet PoE+ ports and four fixed 1G SFP uplinks, delivering 740W PoE budget (expandable to 1440W with dual power supplies). Built on the UADP 2.0 Mini ASIC and running Cisco IOS XE with Network Essentials software, this switch supports foundational Layer 3 routing including static routing, RIP, EIGRP Stub, and OSPF for routed access deployments. With StackWise-80 technology, up to eight switches can be stacked for unified management and resiliency, making it ideal for modern campus and branch networks requiring secure, scalable connectivity for IP phones, wireless access points, and IoT devices.

Features

Layer 3 routing with OSPF, EIGRP Stub, RIP, and static routing (Network Essentials)
- StackWise-80 stacking technology for up to 8 switches with 80 Gbps bandwidth
- Dual redundant power supply slots for high availability
- Fixed redundant fans for cooling redundancy
- MACsec-128 encryption for secure data transmission
- 802.1X network access control and authentication
- Advanced QoS with 8 hardware queues per port
- Policy-based routing (PBR) and VRRP support
- Energy Efficient Ethernet (EEE) for reduced power consumption
- Secure Boot and Trust Anchor technologies
- DHCP snooping, Dynamic ARP Inspection, and IP Source Guard
- SNMP v1/v2c/v3, RMON, and NETCONF/RESTCONF programmability
- Blue beacon LEDs (front and back) for easy switch identification
- Support for Virtual Extensible LAN (VXLAN)
- Per-port PoE power sensing and control
- Cisco DNA Center ready for intent-based networking
- Support for Cisco DNA Essentials and Advantage subscriptions
- Perpetual Network Essentials license included

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000BASE-T RJ-45 PoE+ ports (802.3at)
- 4x 1G SFP fixed uplink ports
- PoE Budget: 740W (default with single PSU), expandable to 1440W with dual PSUs
- Switching Capacity: 104 Gbps
- Forwarding Rate: 154.76 Mpps
- Stacking: StackWise-80 with up to 80 Gbps bandwidth, maximum 8 switches per stack
- Memory: 2GB DRAM, 4GB Flash
- MAC Address Table: 16,000 entries
- VLAN Support: 4096 VLAN IDs, 1024 active VLANs
- Routing Table: 11,000 IPv4 routes, 1,500 IPv6 routes
- Jumbo Frames: 9198 bytes
- Power Supply: PWR-C5-1KWAC (included), dual redundant PSU slots
- Fans: Fixed redundant fans
- Management: CLI, Web GUI, SNMP v1/v2c/v3, NETCONF, RESTCONF
- Dimensions (HxWxD): 1.73 x 17.5 x 12.9 inches (44 x 445 x 328 mm)
- Operating System: Cisco IOS XE
- Software License: Network Essentials (perpetual)
- Energy Efficient Ethernet (EEE) certified, ENERGY STAR certified

FAQs

Q: What is the difference between Network Essentials and Network Advantage licenses?
A: Network Essentials includes foundational Layer 3 routing (static routing, RIP, EIGRP Stub, and OSPF with up to 1,000 routes), MACsec-128 encryption, and basic security features. Network Advantage adds full OSPF support, BGP, advanced segmentation, and enhanced policy-based routing capabilities.

Q: Can I stack C9200L switches with standard C9200 modular switches?
A: No, mixed stacking is not supported. C9200L fixed uplink models cannot be stacked with C9200 modular uplink models or other Catalyst switch series. Stacking must be done with other C9200L switches at the same license level.

Q: How do I increase the PoE budget beyond 740W?
A: You can install a second PWR-C5-1KWAC power supply in the redundant slot to increase the total PoE budget to 1440W, enabling full 30W PoE+ power across all 48 ports simultaneously while providing power redundancy.

Q: Is this switch compatible with Cisco DNA Center for automation?
A: Yes, the C9200L-48P-4G-E is fully compatible with Cisco DNA Center for automated provisioning, monitoring, software management, and assurance. A separate Cisco DNA Essentials or Advantage subscription is required to unlock these features.

Q: What uplink speed should I choose - 1G SFP or 10G SFP+?
A: Choose the C9200L-48P-4G-E (4x 1G SFP) if your uplink infrastructure uses Gigabit fiber. If you require 10G uplinks for higher bandwidth aggregation, consider the C9200L-48P-4X-E model which features 4x 10G SFP+ uplinks instead.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
