• Cisco C9200L-48P-4G-A 48-port Gigabit PoE+ switch with 4x SFP uplinks
1 1

Cisco

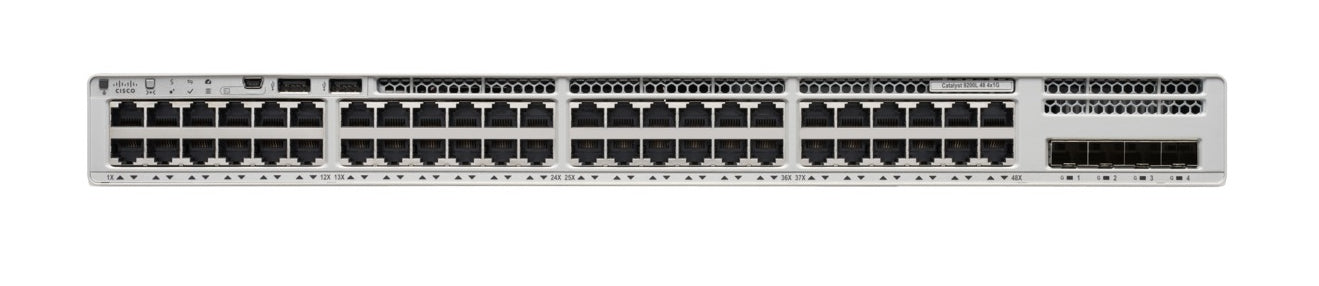

Cisco C9200L-48P-4G-A | Catalyst 9200L 48-Port Gigabit PoE+ Switch, 740W, 4x 1G SFP

C9200L-48P-4G-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9200L-48P-4G-A is a stackable enterprise access switch designed for campus and branch deployments requiring high-density PoE connectivity. It delivers 48 Gigabit Ethernet PoE+ ports with a 740W power budget, four 1G SFP uplinks, and StackWise-80 stacking technology for simplified management. With Network Advantage licensing, the switch provides full Layer 3 routing, advanced security features including MACsec encryption, and Cisco DNA Center integration for automated network operations.

Features

Network Advantage license with full Layer 3 routing (OSPF, EIGRP, BGP)
- StackWise-80 technology for stacking up to 8 switches with 80 Gbps bandwidth
- MACsec-256 encryption for Layer 2 wire-rate security
- Cisco TrustSec and SD-Access for policy-based network segmentation
- Flexible NetFlow (FNF) supporting 16,000 flow entries for traffic analytics
- Energy Efficient Ethernet (EEE) for reduced power consumption
- Per-port PoE power sensing and control for intelligent power management
- Dual redundant fixed fans for high availability
- Field-replaceable dual power supply slots (ships with one PWR-C5-1KWAC)
- Blue beacon LEDs on front and rear for easy physical identification
- Cisco IOS XE Software with model-driven programmability and streaming telemetry
- Advanced QoS with configurable allocation of Layer 2/3 forwarding, ACLs, and QoS entries
- UADP 2.0 ASIC technology for optimized performance and scale
- Cisco Plug and Play (PnP) for zero-touch deployment
- IPv4 routing: 11,000 routes (8,000 direct + 3,000 indirect)
- Packet buffer: 6 MB for Gigabit Ethernet models
- ENERGY STAR certified for environmental efficiency

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000 RJ45 ports with full PoE+ (IEEE 802.3at) support, up to 30W per port
- 4x 1G SFP uplinks for fiber connectivity
- Default PoE budget: 740W with single PWR-C5-1KWAC power supply (expandable to 1440W with optional secondary power supply)
- Switching capacity: 104 Gbps
- Forwarding rate: 77.38 Mpps
- StackWise-80 technology supporting up to 8 switches with 80 Gbps stacking bandwidth
- DRAM: 2 GB
- Flash memory: 4 GB
- MAC address table: 16,000 entries
- Dual redundant fixed fans
- Dimensions: 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.8 cm)
- Operating temperature: -5°C to 45°C (up to 5,000 ft)
- Console ports: RJ-45, USB-C, USB
- Management: CLI, Web UI, SNMP, Cisco DNA Center

FAQs

Q: What is the difference between Network Advantage and Network Essentials licenses?
A: Network Advantage includes advanced Layer 3 routing protocols (full OSPF, EIGRP, BGP), VRF-lite, policy-based routing, MACsec-256 encryption, and SD-Access support, making it suitable for complex enterprise deployments. Network Essentials offers foundational Layer 3 features including static routing, OSPF up to 1000 routes, and EIGRP-Stub.

Q: Can I stack C9200L switches with other Catalyst models?
A: No. The C9200L fixed-uplink models can only stack with other C9200L switches using StackWise-80 technology (up to 8 units). Mixed stacking with modular C9200 switches or other Catalyst series like 2960-X is not supported.

Q: How can I increase the PoE budget beyond 740W?
A: By installing a second PWR-C5-1KWAC power supply in the available secondary power slot, you can increase the total PoE budget to 1440W, enabling full 30W PoE+ delivery across all 48 ports simultaneously while maintaining redundancy.

Q: Is this switch compatible with Wi-Fi 6 access points?
A: Yes. The C9200L-48P-4G-A provides PoE+ power (up to 30W per port) and Gigabit connectivity suitable for most Wi-Fi 6 and Wi-Fi 6E access points. Its advanced QoS and network automation features work seamlessly with Cisco wireless infrastructure.

Q: Does this switch support Cisco DNA Center management?
A: Yes. The switch is fully compatible with Cisco DNA Center for automated provisioning, software image management, monitoring, and network assurance. A Cisco DNA Essentials or Advantage subscription is required to unlock these cloud-based management capabilities.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
