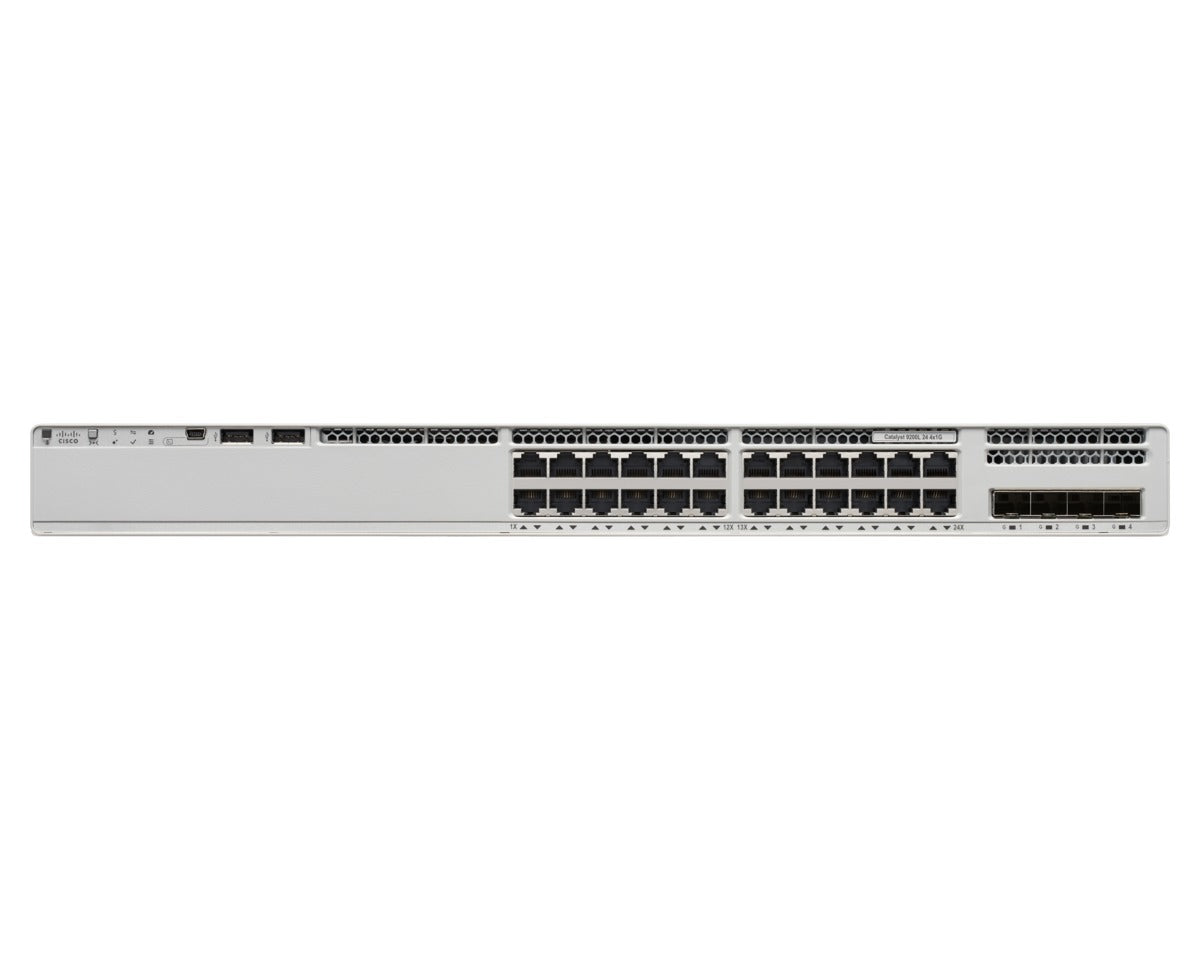

• Cisco C9200L-24T-4X-E switch with 24x1G ports and 4x10G uplinks
1 1

Cisco

Cisco C9200L-24T-4X-E | Catalyst 9200L 24-Port Gigabit Switch, Network Essentials

C9200L-24T-4X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L 24-port data-only switch is a fixed-uplink access switch from the Catalyst 9200 family, built for cost-effective branch-office and campus access layers serving data-only endpoints. It runs Cisco IOS XE and uplinks to a distribution or core layer over four fixed SFP+ ports.

It provides 24 x 10/100/1000 copper downlink ports with no PoE, and 4 x 1/10G fixed SFP+ uplinks. Switching capacity is 128 Gbps (208 Gbps when stacked), with a forwarding rate of 95.23 Mpps (155 Mpps when stacked). This SKU carries the Network Essentials software tier, which is the -E suffix, and optional StackWise-80 stacking supports up to 8 members. The default power supply is the PWR-C5-125WAC (125 W AC), and measured draw at 115 VAC is about 27.8 W with no link and about 38.6 W at full port traffic.

Stacking uses the C9200L-STACK-KIT with STACK-T4-50CM, STACK-T4-1M or STACK-T4-3M cables, and stack members must be other C9200L models at the same licence level. The SFP+ uplinks accept SFP and SFP+ optics listed in the Cisco TMG compatibility matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with open APIs, model-driven programmability and streaming telemetry via NETCONF/RESTCONF with YANG
- StackWise-80 stacking for a single management and control plane
- Layer 3 capability including OSPF, EIGRP, IS-IS, RIP and routed access
- Image signing, Secure Boot and trust anchor module
- AES-128 MACsec encryption and policy-based segmentation
- Plug and Play zero-touch provisioning
- Full Flexible NetFlow with up to 16,000 flows
- Energy Efficient Ethernet on RJ-45 ports
- Managed by CLI, Cisco Catalyst Center or the Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 data-only (non-PoE)
- Uplinks: 4 x 1/10G fixed SFP+
- Switching capacity: 128 Gbps (208 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (155 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Default power supply: PWR-C5-125WAC (125 W AC)
- Fans: Fixed redundant
- Software tier: Network Essentials
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- ACL scale entries: 1,500
- QoS scale entries: 1,000
- Packet buffer: 6 MB
- Flexible NetFlow: 16,000 flows
- DRAM: 2 GB
- Flash: 4 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 28.8 cm (chassis only)
- Weight: 4.35 kg
- Power consumption (115 VAC, no link): 27.82 W
- Power consumption (115 VAC, full traffic): 38.6 W
- Operating temperature: -5 to 45 C up to 1500 m
- Relative humidity: 5% to 90% non-condensing

FAQs

Q: Which licence tier does this switch use?
A: It ships with the perpetual Network Essentials tier, indicated by the -E suffix. Cisco DNA Essentials or Advantage term subscriptions are available, and the DNA tier must match the Network tier.

Q: Does it support PoE?
A: No. This is a data-only model with no PoE. It uses the PWR-C5-125WAC (125 W AC) power supply, and a second identical supply can be added for redundancy.

Q: What can I stack it with?
A: It stacks via StackWise-80 using the C9200L-STACK-KIT with STACK-T4-50CM, STACK-T4-1M or STACK-T4-3M cables, up to 8 members. Stack only with other C9200L models at the same licence level.

Q: What optics fit the uplink ports?
A: The four fixed uplinks are 1/10G SFP+ ports and accept SFP and SFP+ optics listed in the Cisco TMG compatibility matrix.

Q: How does it differ from other C9200L 24-port models?
A: This SKU has 24 data-only ports, four 10G SFP+ uplinks and the Network Essentials tier. Sibling SKUs differ by PoE support, uplink speed or licence tier.
