Cisco

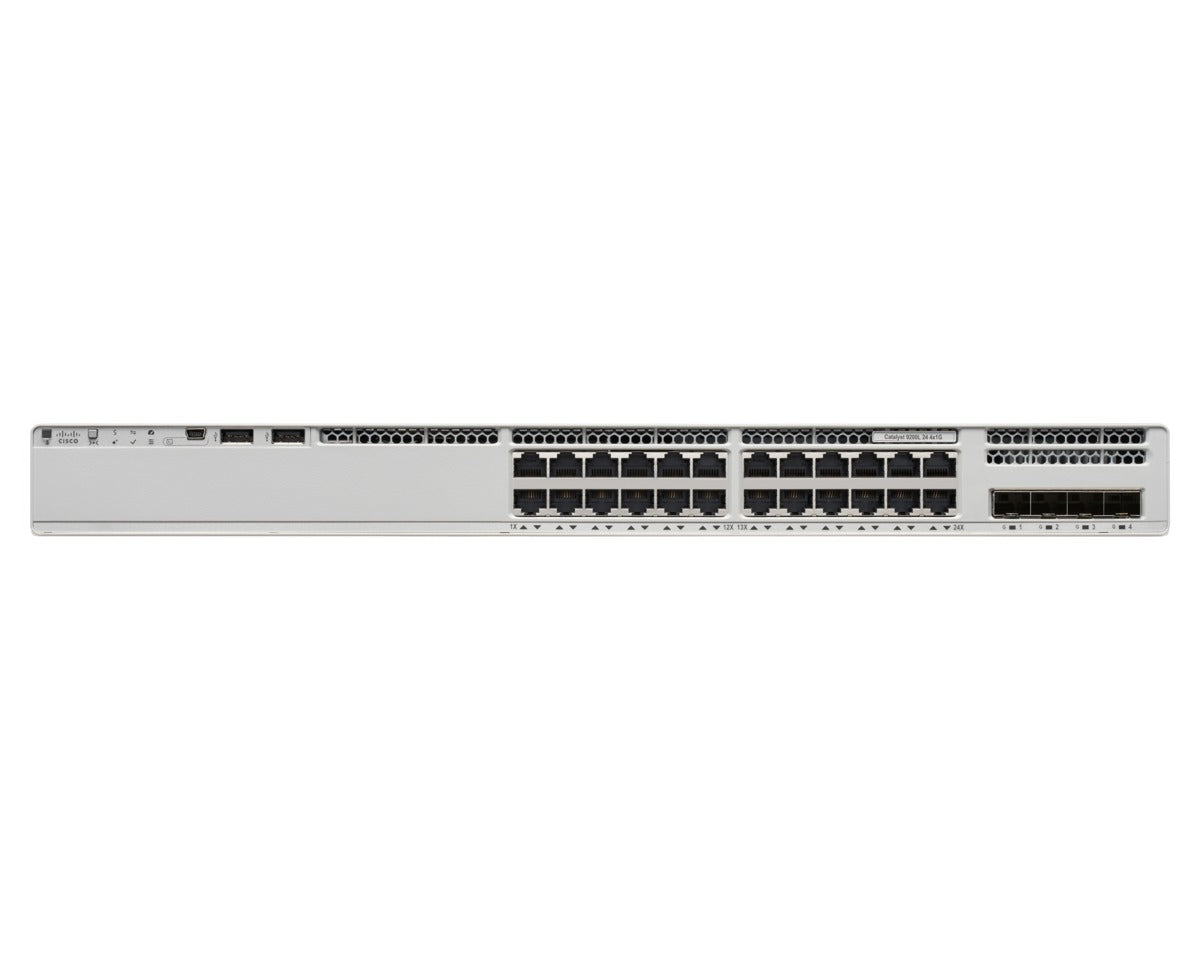

Cisco C9200L-24T-4X-A | Catalyst 9200L 24-Port Gigabit Switch, 4x 10G SFP+, Network Advantage

C9200L-24T-4X-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L is a fixed-configuration, stackable Layer 2 and Layer 3 access switch built for cost-effective branch and campus access. This data-only model suits deployments where endpoints do not need PoE, with 10G uplinks back to a distribution or core layer and optional routed-access, SD-Access or cloud-managed designs.

It provides 24 x 10/100/1000 copper ports and 4 x 1/10G fixed SFP/SFP+ uplinks. Switching capacity is 128 Gbps (208 Gbps when stacked) with a forwarding rate of 95.23 Mpps (155 Mpps when stacked). Memory is 2 GB DRAM and 4 GB flash, with 16,000 MAC addresses, 3,000 IPv4 and 1,500 IPv6 routing entries and jumbo frames up to 9198 bytes. The -A suffix denotes the Network Advantage licence tier, which distinguishes it from the Network Essentials variant of the same hardware.

StackWise-80 stacking joins up to 8 C9200L members with 80 Gbps of stacking bandwidth using the C9200L-STACK-KIT. The uplinks accept 1G SFP and 10G SFP+ optics, and mounting options include RACK-KIT-T1=, ACC-KIT-T1=, 4PT-KIT-T2= and REC-KIT-T1=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Optional backplane StackWise-80 stacking for a single management and control plane
- Redundant power supply bay and fixed redundant fans
- UADP 2.0 Mini ASIC with integrated CPU and programmable pipeline
- AES-128 MACsec encryption, policy-based segmentation and Cisco Trust Anchor secure boot
- Layer 3 routing with OSPF, EIGRP, IS-IS, RIP and routed access, plus PIM sparse mode and SSM multicast
- Cisco IOS XE with NETCONF, RESTCONF and YANG programmability, model-driven telemetry and Plug and Play
- Flexible NetFlow and QoS with eight egress queues per port
- Managed through Cisco Catalyst Center, Cisco ISE or the Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlinks: 24 x 10/100/1000 data-only copper ports (no PoE)
- Uplinks: 4 x 1/10G fixed SFP/SFP+
- Licence tier: Network Advantage (-A suffix)
- Switching capacity: 128 Gbps (208 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (155 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members (C9200L-STACK-KIT)
- Memory: 2 GB DRAM, 4 GB flash
- Packet buffer: 6 MB
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Power supply: PWR-C5-125WAC (125W AC, 100-240 VAC, 50/60 Hz)
- Fans: Fixed redundant
- Power consumption (115VAC): 36.49 W weighted average
- Dimensions: 4.4 x 44.5 x 28.8 cm
- Weight: 4.35 kg
- Operating temperature: -5 to +45 C up to 1,500 m
- Operating humidity: 5% to 90% non-condensing
- MTBF: 525,990 hours

FAQs

Q: Which licence tier does this SKU use?
A: The -A suffix denotes the Network Advantage perpetual licence tier. Optional Cisco DNA Advantage term subscriptions (3, 5 or 7 year) can be added, and the DNA tier must match the Network licence level.

Q: Does this switch support PoE?
A: No. The C9200L-24T-4X-A is a data-only model with 24 standard gigabit ports and no PoE budget.

Q: What can it be stacked with?
A: It stacks only with other C9200L models using the C9200L-STACK-KIT, up to 8 members at the same licence level. It cannot be stacked with C9200 modular models or other Catalyst families.

Q: What power supply does it use?
A: It uses the PWR-C5-125WAC 125W AC power supply. A second identical power supply can be added for redundancy.

Q: Which optics fit the uplink ports?
A: The four fixed uplinks accept 1G SFP and 10G SFP+ optics. Check the Cisco TMG compatibility matrix for the genuine Cisco part numbers supported.
