• Cisco C9200L-24T-4G-E switch with 24 1G ports and 4 SFP uplinks
1 1

Cisco

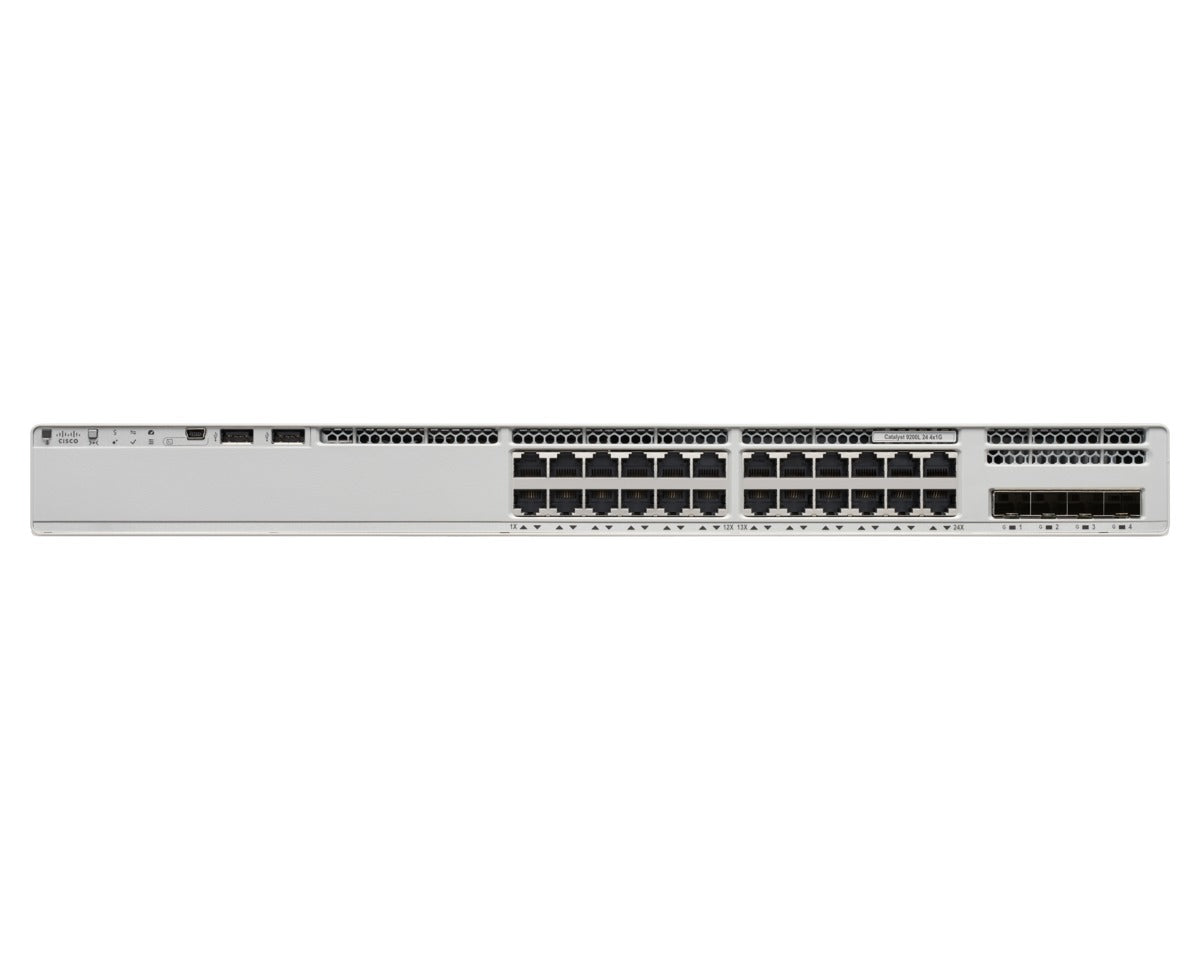

Cisco C9200L-24T-4G-E | Catalyst 9200L 24-Port Gigabit Switch, Network Essentials

C9200L-24T-4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L is a fixed-uplink, stackable Layer 2/3 access switch built for cost-effective branch-office and small campus access where PoE is not required. This model pairs 24 data-only 10/100/1000 ports with 4x 1G fixed SFP uplinks and runs Cisco IOS XE with SD-Access support, with 1 virtual network supported.

Switching capacity is 56 Gbps, rising to 136 Gbps in a stack, with a forwarding rate of 41.67 Mpps (101 Mpps stacked). StackWise-80 provides 80 Gbps of stacking bandwidth for up to 8 C9200L members at the same licence level. The table sizes cover 16,000 MAC addresses, 4,094 VLAN IDs and 1,500 ACL entries, with 6 MB of packet buffer. This -E SKU carries the Network Essentials licence tier, which covers static routing, RIP, OSPF and routed access. It ships with a 125W AC power supply, fixed redundant fans and AES-128 MACsec encryption, and all C9200L models can be onboarded to the Meraki dashboard.

Stacking is available only with other C9200L models. Uplinks are fixed 1G SFP slots, and the chassis can be rack-mounted using the standard Catalyst 9200 mounting kits.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with model-driven programmability (NETCONF/RESTCONF, YANG) and streaming telemetry
- SD-Access support with 1 virtual network
- Plug and Play provisioning and built-in WebUI
- Can be onboarded to the Meraki dashboard for cloud management
- AES-128 MACsec encryption, policy-based segmentation and secure boot with image signing
- Layer 3 routing with static, RIP, OSPF and routed access
- Energy Efficient Ethernet and per-port power monitoring
- Cold patching for critical bug and security fixes

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 data-only (no PoE)
- Uplinks: 4 x 1G fixed SFP
- Switching capacity: 56 Gbps (136 Gbps with stacking)
- Forwarding rate: 41.67 Mpps (101 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- MAC address table: 16,000 entries
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- ACL scale entries: 1,500
- Packet buffer: 6 MB
- Flash: 4 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Default power supply: PWR-C5-125WAC (125W AC, 100 to 240 VAC, 50-60 Hz)
- Typical power consumption: 36.23 W at 100% traffic, 27.39 W idle
- Fans: Fixed redundant
- Dimensions (H x W x D): 4.4 x 44.5 x 28.8 cm chassis only
- Weight: 4.35 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Relative humidity: 5% to 90% non-condensing
- MTBF: 531,030 hours

FAQs

Q: Which licence tier does this SKU carry?
A: The -E suffix denotes the Network Essentials perpetual licence tier. A matching Cisco DNA Essentials subscription is ordered alongside the switch, and an upgrade path to Network Advantage is available through C9200L upgrade SKUs.

Q: Does this switch support PoE?
A: No. This is a data-only model with 24 x 10/100/1000 ports and no PoE. It is powered by a 125W AC power supply, and PoE-capable variants exist in the C9200L range.

Q: Can it be stacked with other Catalyst 9200 models?
A: It stacks only with other C9200L models at the same licence level, up to 8 members using StackWise-80 with the C9200L-STACK-KIT and STACK-T4 cables. It cannot be stacked with modular C9200 models or other Catalyst families.

Q: Can the 4 uplink ports be upgraded to 10G?
A: No. The uplinks on this model are fixed 4 x 1G SFP slots. Models with 10G uplinks are a separate variant in the Catalyst 9200 range.

Q: Does it support a redundant power supply?
A: Yes. It ships with one PWR-C5-125WAC, and a second identical power supply can be added for redundancy. A PWR-C5-715WDC DC supply is also listed as a compatible spare.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
