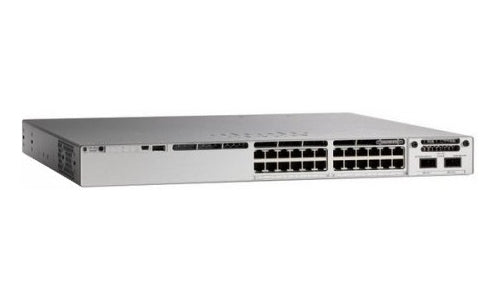

• Cisco C9200L-24T-4G-A switch with 24x1G ports and 4x1G SFP uplinks
1 1

Cisco

Cisco C9200L-24T-4G-A | Catalyst 9200L 24-Port Gigabit Switch, 4x 1G SFP, Network Advantage

C9200L-24T-4G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L 24-port data-only switch is a fixed-uplink, stackable Layer 2/3 access switch running Cisco IOS XE. It suits cost-effective branch-office and small campus access layers that need 24 gigabit ports, 1G uplinks, stacking, routed access and secure segmentation, with optional management through Cisco Catalyst Center or the Meraki dashboard.

This variant provides 24 x 10/100/1000 data-only ports with no PoE and 4 x 1G fixed SFP uplinks, and ships with the Network Advantage licence tier. Switching capacity is 56 Gbps (136 Gbps when stacked) with a forwarding rate of 41.67 Mpps (101 Mpps when stacked). It includes 2 GB DRAM and 4 GB flash, and fits a 1U rack space with fixed redundant fans. The default PWR-C5-125WAC supply draws roughly 27 W with no link and up to about 36 W at full port traffic.

StackWise-80 provides 80 Gbps of stacking bandwidth for up to 8 members. Stacking is limited to other C9200L models at the same licence level using the C9200L-STACK-KIT, and cannot be combined with C9200 modular or C9200CX models. The 4 SFP uplinks accept Cisco SFP optics, and a second PWR-C5-125WAC/2 supply can be added for redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with open APIs, NETCONF/RESTCONF with YANG models and model-driven telemetry
- Layer 3 capabilities including OSPF, EIGRP, IS-IS, RIP and routed access
- AES-128 MACsec encryption and policy-based segmentation
- Cisco Trust Anchor technologies with image signing and Secure Boot
- Limited Cisco Software-Defined Access (SD-Access) support with 1 virtual network
- Plug and Play (PnP) zero-touch deployment
- Cold patching for critical fixes between maintenance releases
- Embedded WebUI with no additional licence required
- Energy Efficient Ethernet (EEE) and per-port power management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 data-only (non-PoE)
- Uplinks: 4 x 1G fixed SFP
- Licence tier: Network Advantage
- Switching capacity: 56 Gbps (136 Gbps with stacking)
- Forwarding rate: 41.67 Mpps (101 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Default power supply: PWR-C5-125WAC, 125W AC, 100-240 VAC, 50-60 Hz
- Fans: Fixed redundant
- DRAM: 2 GB
- Flash: 4 GB
- Packet buffer: 6 MB
- MAC addresses: 16,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Chassis dimensions (H x W x D): 4.4 x 44.5 x 28.8 cm (1U)
- Weight: 4.35 kg
- Power consumption (115VAC): 27.39 W no link, up to 36.23 W at full port traffic
- Operating temperature: -5 to 45 C up to 1500 m; -5 to 40 C up to 3000 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- Management ports: RJ45 or mini USB console, RJ-45 Ethernet management port

FAQs

Q: Which licence tier does this switch include?
A: This SKU carries the Network Advantage tier. Cisco DNA Essentials or Advantage term subscriptions are optional, and the DNA tier must match the Network licence. Smart Licensing through a Cisco Smart Account applies.

Q: Does this switch provide PoE?
A: No. It is a data-only model with no PoE on any port, so powered devices need a separate power source or injector.

Q: Can it be stacked with other Catalyst 9200 models?
A: It stacks only with other C9200L models at the same licence level, using the C9200L-STACK-KIT and StackWise-80, for up to 8 members. It cannot stack with C9200 modular or C9200CX models.

Q: What can be fitted to the 4 x 1G uplink ports?
A: The uplinks are fixed 1G SFP ports that accept Cisco SFP optics. Check the Cisco TMG compatibility matrix for the exact module.

Q: How can I add power redundancy?
A: The default supply is the PWR-C5-125WAC. A second identical supply, PWR-C5-125WAC/2, can be added for redundancy.

Q: How is this switch managed?
A: It can be managed by CLI, the embedded WebUI, Cisco Catalyst Center or the Meraki dashboard. It requires Cisco IOS XE 16.9.2 or later.
