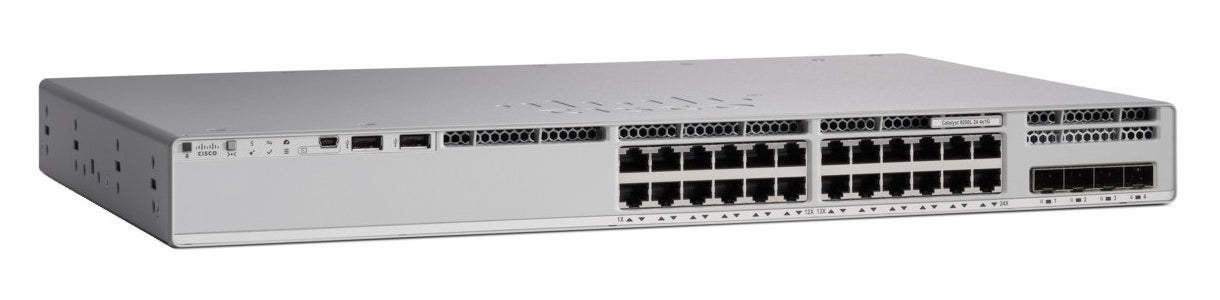

• Cisco C9200L-24PXG-4X-E silver switch with black ports
1 1

Cisco

Cisco C9200L-24PXG-4X-E | Catalyst 9200L 24-Port PoE+ Switch, Network Essentials

C9200L-24PXG-4X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L 24-port switch is a fixed-uplink access switch for branch offices and campus access layers. It provides full PoE+ on every port for IP phones, cameras and Wi-Fi 6/6E access points, with 10G uplinks back to the distribution layer. It runs Cisco IOS XE and supports SD-Access for segmented, policy-based access networks.

The 24 downlinks are made up of 8 multigigabit ports (up to 10G) and 16 ports up to 1G, backed by 4 fixed 1/10G SFP+ uplinks. A single 600W AC power supply gives a 370W PoE budget, and a second 600W supply raises that to 740W. Switching capacity is 272 Gbps standalone and 352 Gbps when stacked, with a forwarding rate of 214.28 Mpps standalone. This SKU carries the Network Essentials licence, which includes Layer 3 features such as static routing, RIP and OSPF for routed access.

Up to 8 C9200L switches can be stacked at the same licence level using StackWise-80 and the C9200L-STACK-KIT. The 600W power supply (PWR-C5-600WAC) fits the dual power supply bays, with the PWR-C5-1KWAC as an alternative.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ on all 24 ports with dynamic PoE+ power allocation
- Perpetual PoE and Fast PoE keep endpoints powered during a switch reload
- 8 multigigabit ports up to 10G suited to Wi-Fi 6/6E access points
- Redundant field-replaceable power supplies and fixed redundant fans
- StackWise-80 stacking with a single management and control plane
- Layer 3 routed access with static routing, RIP and OSPF
- AES-128 MACsec encryption, Secure Boot and signed images
- Model-driven programmability with NETCONF, RESTCONF, YANG and streaming telemetry

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x PoE+ (8 mGig up to 10G, 16 up to 1G)
- Uplink ports: 4 x 1/10G fixed SFP+
- PoE standard: full PoE+ (up to 30W per port)
- PoE budget: 370W with one PWR-C5-600WAC, 740W with two
- Default power supply: PWR-C5-600WAC, 100-240 VAC, 50-60 Hz
- Fans: fixed redundant
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Switching capacity: 272 Gbps (352 Gbps with stacking)
- Forwarding rate: 214.28 Mpps (262 Mpps with stacking)
- DRAM: 2 GB
- Flash: 4 GB
- Packet buffer: 12 MB
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.44 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Management ports: Ethernet management RJ-45, console RJ-45 or mini USB
- Software: Cisco IOS XE, Network Essentials licence

FAQs

Q: Which licence does this switch include?
A: It includes the Network Essentials perpetual licence, indicated by the -E suffix. Cisco DNA subscriptions are optional, and an upgrade to Network Advantage is available via C9200L-24-E-A.

Q: How much PoE power can it deliver?
A: A single PWR-C5-600WAC supplies a 370W PoE budget. Adding a second 600W supply raises the budget to 740W.

Q: Can it be stacked with other Catalyst 9200 switches?
A: It stacks only with other C9200L models at the same licence level, using the C9200L-STACK-KIT. It cannot stack with C9200 modular or C9200CX models.

Q: Which power supplies does it accept?
A: It accepts the PWR-C5-600WAC (default) and PWR-C5-1KWAC AC supplies, plus the PWR-C5-715WDC= DC supply.

Q: Which Cisco IOS XE release does it need?
A: It is supported on Cisco IOS XE 16.9.2 or later.
