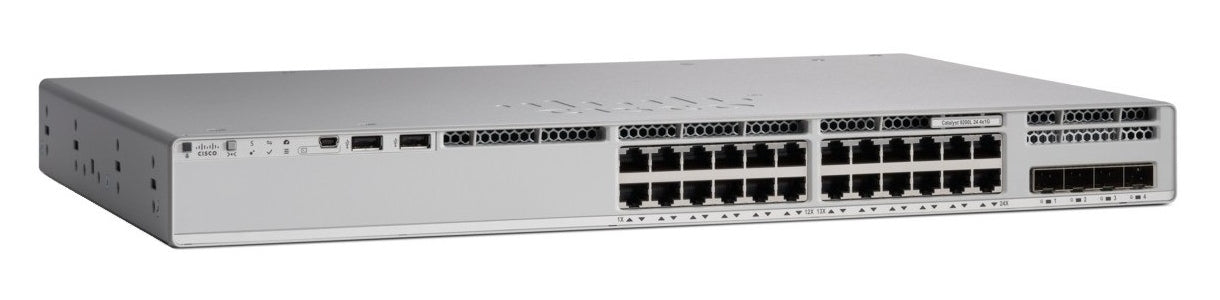

• Cisco C9200L-24PXG-4X-A silver switch with black ports
1 1

Cisco

Cisco C9200L-24PXG-4X-A | Catalyst 9200L 24-Port PoE+ Switch, 4x 10G SFP+, Network Advantage

C9200L-24PXG-4X-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L C9200L-24PXG-4X-A is a fixed-uplink access switch for branch offices and campus edges that need full PoE+ and multigigabit on the same box. It suits Wi-Fi 6/6E access points, IP phones, cameras and IoT endpoints, and it fits SD-Access edge deployments as well as networks managed through Catalyst Center or the Meraki dashboard.

The 24 downlink ports all deliver PoE+ (up to 30W per port): 8 multigigabit ports running up to 10G and 16 ports at up to 1G. Four fixed 1/10G SFP+ uplinks handle the upstream connection. Switching capacity is 272 Gbps (352 Gbps with stacking) and forwarding rate is 214.28 Mpps. PoE budget is 370W with a single 600W AC supply and 740W with a second supply fitted. It carries the Network Advantage licence tier, which adds the advanced Layer 3 routing and segmentation features.

It stacks over StackWise-80 with other C9200L models at the same licence level, up to 8 members, using the C9200L-STACK-KIT. It runs Cisco IOS XE and is a 1RU unit.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ on all 24 downlink ports, with Perpetual PoE and Fast PoE
- Multigigabit ports suited to Wi-Fi 6/6E access points
- Optional StackWise-80 stacking for up to 8 members
- Field-replaceable redundant power supplies
- Layer 3 routing including OSPF, EIGRP, IS-IS and RIP, plus routed access
- AES-128 MACsec encryption and policy-based segmentation
- Cisco SD-Access Fabric Edge support
- Cisco IOS XE with NETCONF/RESTCONF/YANG programmability and model-driven telemetry

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x PoE+ (8 x mGig up to 10G, 16 x up to 1G)
- Uplinks: 4 x 1/10G fixed SFP+
- Licence tier: Network Advantage
- Default power supply: PWR-C5-600WAC
- PoE budget: 370W with one 600W PSU, 740W with two
- Switching capacity: 272 Gbps (352 Gbps with stacking)
- Forwarding rate: 214.28 Mpps (262 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- ACL scale entries: 1,500
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Packet buffer: 12 MB
- Flash: 4 GB
- DRAM: 2 GB
- Fans: Fixed redundant
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm (1RU)
- Weight: 5.44 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- MTBF: 379,410 hours

FAQs

Q: What licence does the C9200L-24PXG-4X-A use?
A: It carries the Network Advantage licence tier, shown by the -A suffix. A matching Cisco DNA Advantage or Catalyst Advantage term subscription is ordered with the switch.

Q: What is the PoE budget?
A: The budget is 370W with a single 600W AC power supply and 740W when a second supply is fitted. Every downlink port supports PoE+ up to 30W.

Q: Can it stack with other Catalyst 9200 switches?
A: It stacks with other C9200L models at the same licence level, up to 8 members, using the C9200L-STACK-KIT. It cannot be stacked with modular C9200 or other Catalyst families.

Q: What speed are the uplinks?
A: The four fixed uplinks are SFP+ ports that run at 1G or 10G, depending on the optic installed.

Q: How does it differ from other C9200L 24-port models?
A: This model pairs 8 multigigabit and 16 gigabit PoE+ ports with 4 x 10G SFP+ uplinks and Network Advantage licensing. Siblings differ in downlink port mix, uplink speed or licence tier.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
