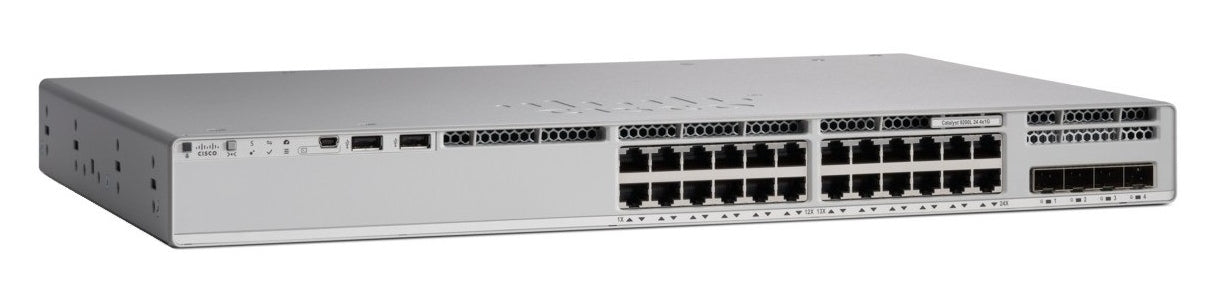

• Cisco C9200L-24PXG-2Y-E silver switch with black ports
1 1

Cisco

Cisco C9200L-24PXG-2Y-E | Catalyst 9200L 24-Port PoE+ Switch, 2x 25G, Network Essentials

C9200L-24PXG-2Y-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L is a fixed-uplink access switch built for branch and campus networks that need PoE+ for IP phones, cameras and Wi-Fi 6/6E access points. This Network Essentials model suits sites that want multigigabit downlinks and 25G uplinks without stepping up to a modular chassis.

It provides 24 full PoE+ copper ports, with 8 multigigabit ports running up to 10G and 16 ports at up to 1G, plus 2 fixed 1/10/25G uplinks. A single PWR-C5-600WAC power supply delivers a 370W PoE budget, rising to 740W with a second supply. Switching capacity is 292 Gbps, or 372 Gbps when stacked, with a forwarding rate of 229.16 Mpps. It carries 4 GB of flash and 2 GB of DRAM, and ships with the Network Essentials software tier, with an upgrade path to Network Advantage.

Stacking is supported through StackWise-80 using the C9200L-STACK-KIT and STACK-T4 cables, with up to 8 members. Stacking is only possible with other C9200L models at the same licence level, and not with C9200 modular or C9200CX switches. The uplinks accept 1/10/25G SFP, SFP+ and SFP28 optics, and the switch runs Cisco IOS XE 16.9.2 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ on every copper port, with Perpetual PoE and Fast PoE
- AES-128 MACsec encryption and policy-based segmentation
- Cisco IOS XE with NETCONF, RESTCONF and YANG programmability and streaming telemetry
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- Flexible NetFlow and 8 egress queues per port for QoS
- Plug and Play zero-touch provisioning
- Managed by CLI, WebUI, Cisco Catalyst Center or Meraki cloud dashboard
- Energy Efficient Ethernet with per-port PoE power sensing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlinks: 24 full PoE+ ports (8 mGig up to 10G, 16 up to 1G)
- Uplinks: 2x 1/10/25G fixed
- PoE budget: 370W with one PWR-C5-600WAC, 740W with a second supply
- Maximum PoE per port: 30W (PoE+)
- Switching capacity: 292 Gbps (372 Gbps with stacking)
- Forwarding rate: 229.16 Mpps (277 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- Software tier: Network Essentials
- Flash: 4 GB
- DRAM: 2 GB
- Packet buffer: 12 MB
- MAC addresses: 16,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Default power supply: PWR-C5-600WAC, 100-240 VAC, 50-60 Hz
- Fans: Fixed redundant
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.44 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Acoustic noise: 42 dB typical, 45 dB maximum
- MTBF: 374,730 hours

FAQs

Q: Which licence does this switch use?
A: It ships with the Network Essentials perpetual software tier. You can upgrade to Network Advantage with C9200L-24-E-A licences, and optional DNA Essentials or Advantage subscriptions are available. Smart Licensing is supported.

Q: How much PoE power does it provide?
A: A single PWR-C5-600WAC supply gives a 370W PoE budget, and fitting a second supply raises it to 740W. Each port supplies up to 30W (PoE+).

Q: Can it stack with other Catalyst 9200 switches?
A: It stacks with other C9200L models at the same licence level using StackWise-80, the C9200L-STACK-KIT and STACK-T4 cables, up to 8 members. It cannot stack with C9200 modular or C9200CX switches.

Q: What optics fit the 25G uplinks?
A: The two fixed uplinks accept 1/10/25G SFP, SFP+ and SFP28 optics. Check the Cisco Transceiver Module Group compatibility matrix for supported genuine part numbers.

Q: Can it be managed from the Meraki dashboard?
A: Yes, Meraki cloud management is supported, as are Cisco Catalyst Center, the WebUI and CLI.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
