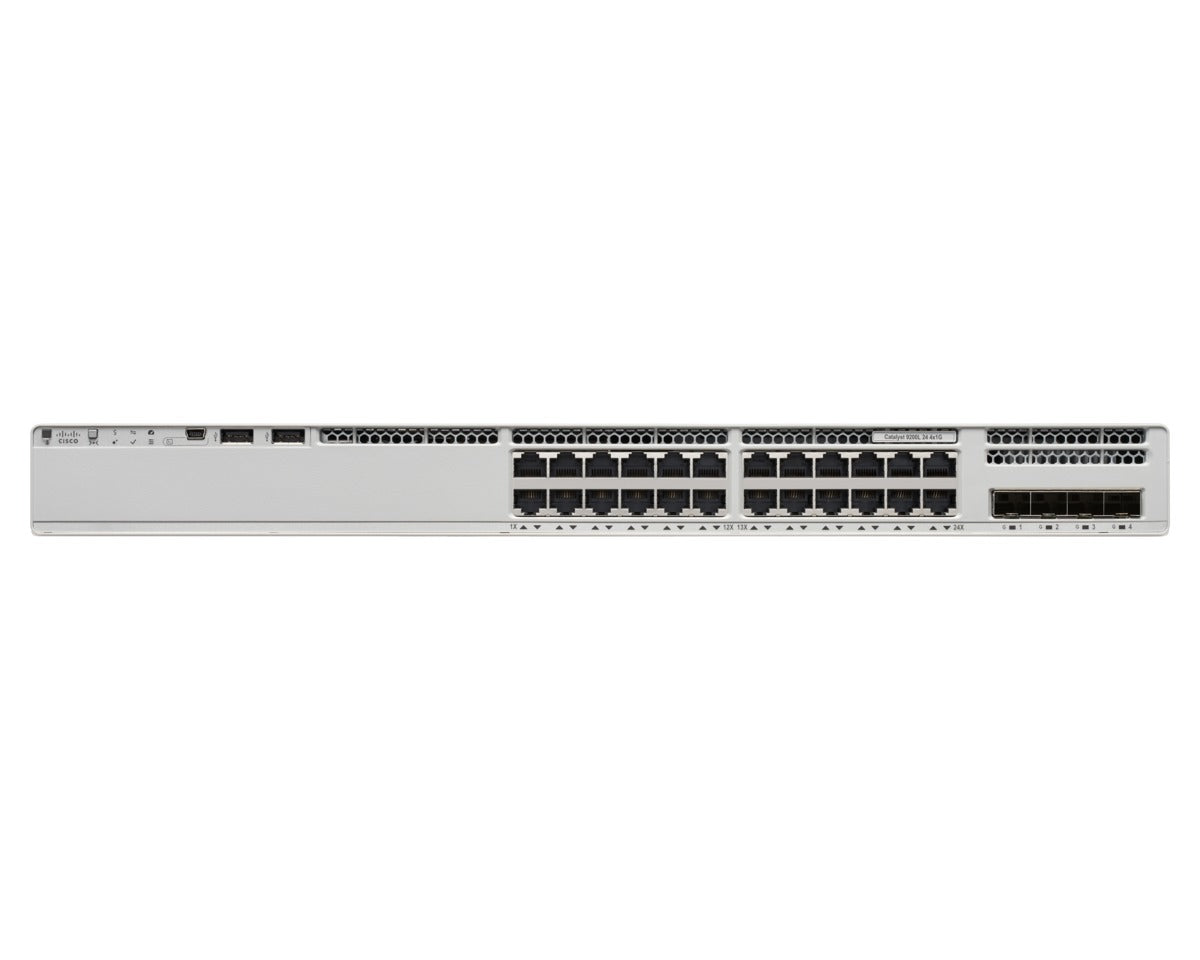

• Cisco C9200L-24P-4X-E switch with 24 PoE+ ports and 4x10G uplinks
1 1

Cisco

Cisco C9200L-24P-4X-E | Catalyst 9200L 24-Port PoE+ Switch, Network Essentials

C9200L-24P-4X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L 24-port PoE+ switch is a fixed-configuration, stackable Layer 2/3 access switch built for branch offices and campus access layers. It delivers full PoE+ to IP phones, Wi-Fi access points and IoT endpoints, with four fixed 1/10G SFP+ uplinks to aggregation. It runs Cisco IOS XE and supports StackWise-80 stacking for single-point management.

This model provides 24 x 10/100/1000 PoE+ ports and 4 x 1/10G SFP+ uplinks. With one 600 W AC power supply it offers 370 W of PoE, rising to 740 W with a second supply. Switching capacity is 128 Gbps (208 Gbps when stacked) with a forwarding rate of 95.23 Mpps. It carries the Network Essentials licence tier, which covers static and routed access Layer 3 features, while term subscriptions add Catalyst Center management and automation.

The four uplink ports accept 1G SFP and 10G SFP+ optics. Stacking is supported with other C9200L models at the same licence level using the C9200L-STACK-KIT and STACK-T4 cables, up to 8 members and 80 Gbps of stacking bandwidth.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ with Perpetual PoE and Fast PoE
- Cisco IOS XE with open APIs, model-driven programmability and streaming telemetry
- StackWise-80 stacking up to 8 members with sub-50 ms SSO failover
- Layer 3 routed access with OSPF, RIP and static routing under Network Essentials
- Trust Anchor technologies including image signing and Secure Boot
- AES-128 MACsec encryption
- Cisco Catalyst Center management and Plug and Play deployment
- Energy Efficient Ethernet, Flexible NetFlow and 8 egress queues per port QoS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlinks: 24 x 10/100/1000 full PoE+ ports
- Uplinks: 4 x 1/10G fixed SFP+
- Default power supply: PWR-C5-600WAC
- PoE budget: 370 W with one PSU, 740 W with second PSU
- PoE+ per port: up to 30 W
- Switching capacity: 128 Gbps (208 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (155 Mpps with stacking)
- Stacking: StackWise-80, up to 80 Gbps, up to 8 members
- Licence tier: Network Essentials
- Packet buffer: 6 MB
- DRAM: 2 GB
- Flash: 4 GB
- MAC addresses: 16,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Fans: Fixed redundant
- Dimensions (H x W x D): 4.4 x 44.5 x 28.8 cm (1RU)
- Weight: 4.71 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- MTBF: 390,310 hours
- Management: SNMPv1/v2c/v3, RMON, CLI, WebUI, NETCONF/RESTCONF with YANG

FAQs

Q: Which licence tier does the C9200L-24P-4X-E carry?
A: It carries the perpetual Network Essentials licence tier. Cisco DNA or Catalyst Essentials/Advantage term subscriptions are needed for management and automation features, and Network Advantage is available through upgrade licences.

Q: What is the PoE budget?
A: With one PWR-C5-600WAC power supply the PoE budget is 370 W. Adding a second supply raises it to 740 W. Each port supports PoE+ up to 30 W.

Q: Can it stack with other Catalyst 9200 switches?
A: It stacks only with other C9200L models at the same licence level using the C9200L-STACK-KIT and STACK-T4 cables. It cannot stack with modular C9200 or other Catalyst families.

Q: What optics do the uplinks accept?
A: The four fixed uplinks accept 1G SFP and 10G SFP+ transceivers.

Q: How does it differ from the Network Advantage version?
A: The hardware is the same. The -E suffix means it carries the Network Essentials tier, while the -A variant carries Network Advantage, which adds features such as EIGRP and IS-IS routing.
