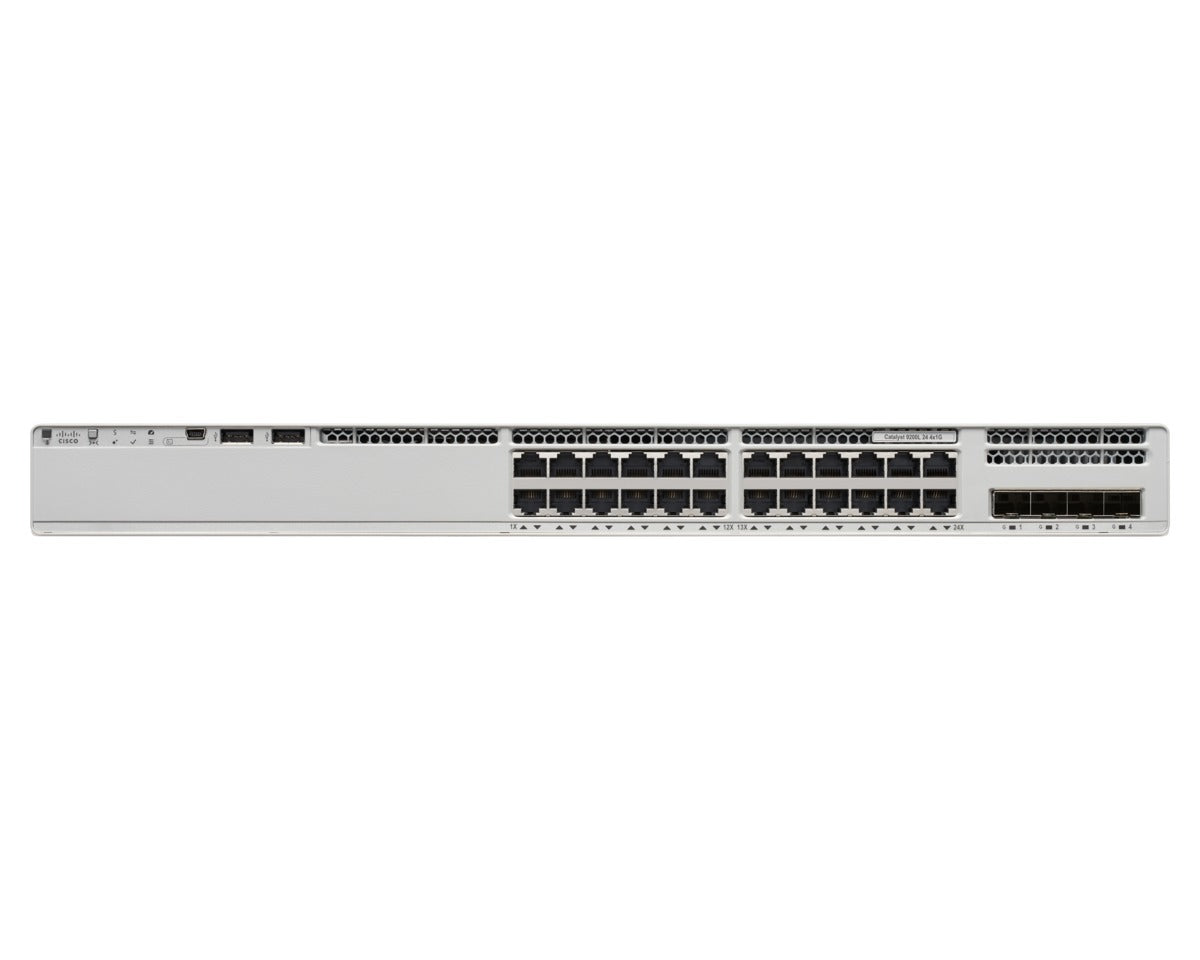

• Cisco C9200L-24P-4X-A switch with 24x1G PoE+ ports and 4x10G uplinks
1 1

Cisco

Cisco C9200L-24P-4X-A | Catalyst 9200L 24-Port Gigabit PoE+ Switch, 370W, 4x 10G SFP+

C9200L-24P-4X-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9200L-24P-4X-A is a Catalyst 9200L enterprise access switch delivering 24 Gigabit Ethernet PoE+ ports with 370W power budget and 4x 10G SFP+ uplinks. Running Cisco IOS XE with Network Advantage software, it provides advanced Layer 3 routing, StackWise-80 stacking, and programmable automation for campus edge and branch deployments. With 128 Gbps switching capacity, dual redundant fans, and support for Cisco DNA Center integration, this switch delivers secure, scalable connectivity for modern enterprise networks.

Features

Cisco IOS XE operating system with model-driven programmability and streaming telemetry
- Network Advantage perpetual license with advanced Layer 3 routing and security
- StackWise-80 with 80 Gbps stack bandwidth for simplified management and scalability
- IEEE 802.3at PoE+ with up to 30W per port for powering APs, IP phones, and cameras
- 128 Gbps non-blocking switching fabric with 95.23 Mpps forwarding performance
- Dual redundant fixed fans for high availability
- Support for dual redundant power supplies (optional secondary unit)
- Programmable ASIC with flexible resource allocation for ACLs, QoS, and forwarding tables
- Advanced QoS with 8 egress queues per port and traffic shaping
- Comprehensive security: IEEE 802.1X, MACsec encryption, TrustSec SGT, IP Source Guard
- Energy Efficient Ethernet (EEE) and ENERGY STAR certification
- Cisco DNA Center integration for network automation and assurance
- Plug and Play (PnP) for zero-touch provisioning
- Blue beacon LEDs on front and rear for easy physical identification
- VXLAN routing and bridging for fabric integration
- Flexible NetFlow (FNF) for advanced traffic visibility and analytics
- Cisco StackPower (when stacked) for power sharing and redundancy across stack members

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 Gigabit Ethernet PoE+ (802.3at) ports
- 4x 10 Gigabit Ethernet SFP+ fixed uplinks
- PoE+ power budget: 370W (default with single PWR-C5-600WAC), expandable to 740W with optional secondary power supply
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps (wire-speed)
- DRAM: 2 GB
- Flash: 4 GB
- StackWise-80 technology: 80 Gbps stacking bandwidth, up to 8 switches per stack
- Software: Cisco IOS XE with Network Advantage license (perpetual)
- Layer 3 routing protocols: OSPF, EIGRP, BGP, IS-IS, HSRP, VRRP, VRF-Lite
- Management: CLI, Web UI, SNMP, NETCONF, RESTCONF, Cisco DNA Center
- Dual fixed fans for redundancy (non field-replaceable)
- Dimensions: 1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm), 1U rack-mountable
- Power consumption: Typical operational power varies with PoE load
- ENERGY STAR certified
- Operating temperature: 0°C to 45°C (32°F to 113°F)

FAQs

Q: What is the total PoE power budget for the C9200L-24P-4X-A?
A: The switch provides 370W of PoE+ power with the default PWR-C5-600WAC power supply. By adding an optional secondary PWR-C5-600WAC power supply, the total PoE budget can be expanded to 740W, allowing full 30W per port across all 24 PoE+ ports.

Q: Can the C9200L-24P-4X-A be stacked with other Catalyst 9200 switches?
A: Yes, it supports StackWise-80 technology with 80 Gbps stacking bandwidth for up to 8 switches. However, fixed C9200L models cannot be stacked with modular C9200 or C9200CX models, or with other Catalyst switch series like the 2960-X.

Q: What Layer 3 routing features are included with Network Advantage?
A: Network Advantage software includes advanced Layer 3 routing protocols such as OSPF, EIGRP, BGP, IS-IS, policy-based routing, VRF-Lite, HSRP, VRRP, and support for up to 4,000 IPv4 routing entries. It also enables advanced security features like TrustSec and MACsec encryption.

Q: Is Cisco DNA licensing required for this switch?
A: The C9200L-24P-4X-A includes perpetual Network Advantage software. Cisco DNA licensing is optional but recommended for accessing advanced automation, assurance, and analytics features through Cisco DNA Center, including SD-Access and network programmability.

Q: What uplink transceivers are compatible with the 10G SFP+ ports?
A: The four SFP+ uplink ports support a wide range of Cisco 10G transceivers including SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR for fiber, and SFP-H10GB-CU1M to CU5M Direct Attach Copper (DAC) cables for short-distance 10G connectivity.
