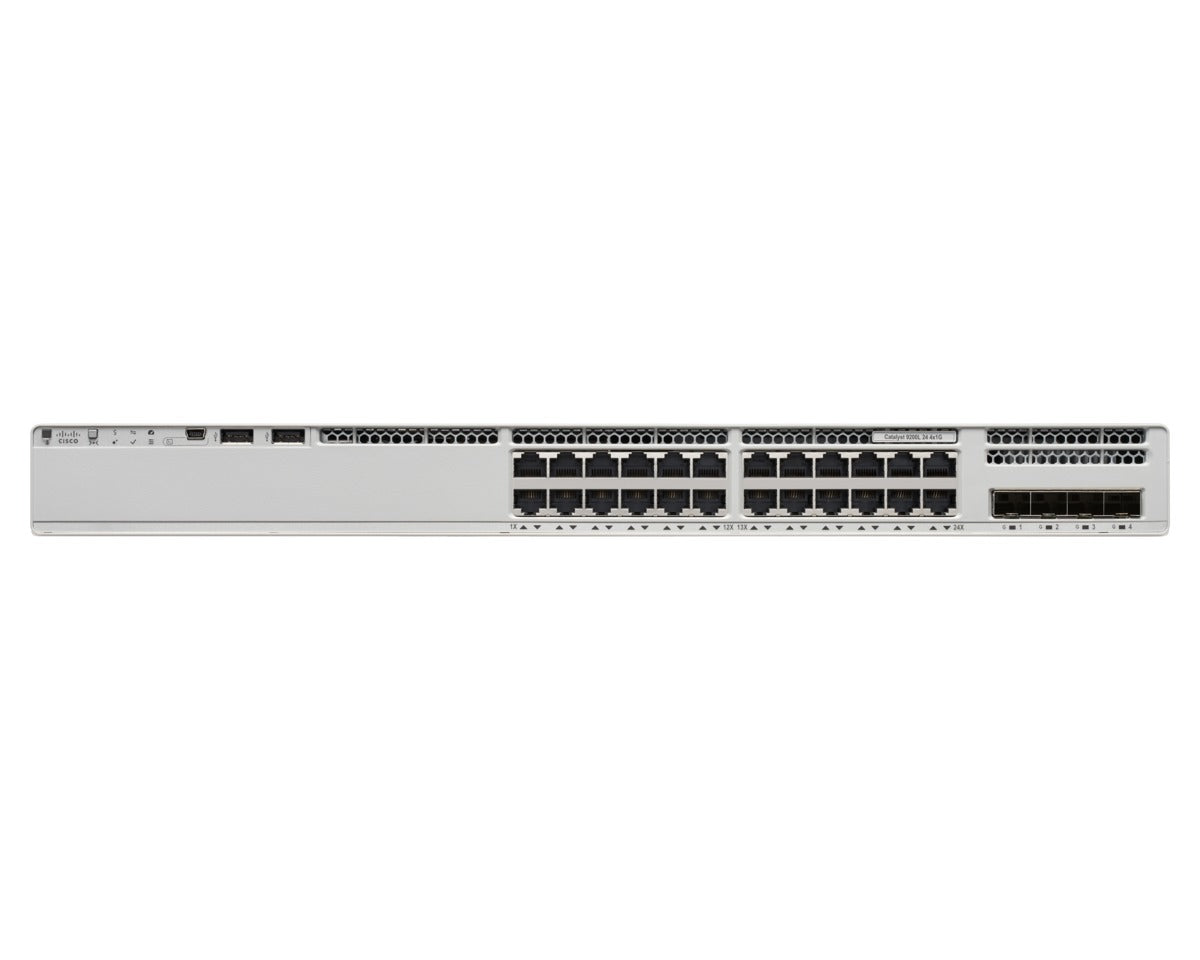

• Cisco C9200L-24P-4G-E switch with 24 PoE+ ports and 4 SFP uplinks
1 1

Cisco

Cisco C9200L-24P-4G-E | Catalyst 9200L 24-Port PoE+ Switch, 370W, 4x 1G SFP, NE

C9200L-24P-4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L is a fixed-configuration, stackable Layer 2/3 access switch built for cost-effective branch-office and small campus deployments. It suits access layers that need to power IP phones and Wi-Fi access points, and it can also serve as an SD-Access edge node with policy-based segmentation. It runs Cisco IOS XE.

This model provides 24 x 10/100/1000 ports with full PoE+ (802.3at, up to 30W per port) and four fixed 1G SFP uplinks. The default PWR-C5-600WAC power supply delivers a 370W PoE budget, and a second PWR-C5-600WAC raises that to 740W. Switching capacity is 56 Gbps (136 Gbps with stacking) and forwarding rate is 41.67 Mpps (101 Mpps with stacking). It carries 4 GB of DRAM and 4 GB of flash, with 32,000 MAC addresses and 4094 VLAN IDs. This SKU uses the Network Essentials licence tier, which covers Layer 3 routing including static, RIP, OSPF and routed access.

StackWise-80 stacking at 80 Gbps supports up to 8 members using the C9200L-STACK-KIT, with C9200L models at the same licence level only. Management is by CLI, Cisco Catalyst Center or the Meraki dashboard for cloud monitoring.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ on all 24 downlink ports, with Perpetual PoE and Fast PoE
- Cisco IOS XE with model-driven programmability, streaming telemetry, NETCONF/RESTCONF and Plug and Play
- Layer 3 routing with Network Essentials (static, RIP, OSPF, routed access)
- Optional StackWise-80 stacking for a single management and control plane
- Trust Anchor technologies including image signing and Secure Boot
- Supports Cisco SD-Access, policy-based segmentation and Cisco ISE integration
- Management by CLI, Cisco Catalyst Center or cloud monitoring through the Meraki dashboard
- Redundant power supply option and field-replaceable fan and power units

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 PoE+
- Uplinks: 4 x 1G fixed SFP
- PoE standard: IEEE 802.3at PoE+, up to 30W per port
- PoE budget: 370W with one PWR-C5-600WAC, 740W with a second PWR-C5-600WAC
- Default power supply: PWR-C5-600WAC
- Switching capacity: 56 Gbps (136 Gbps with stacking)
- Forwarding rate: 41.67 Mpps (101 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members
- DRAM: 4 GB
- Flash: 4 GB
- MAC addresses: 32,000
- VLAN IDs: 4094
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- ACL scale entries: 1,600
- Packet buffer: 6 MB
- Jumbo frames: 9198 bytes
- Switched virtual interfaces: 512
- Licence tier: Network Essentials

FAQs

Q: Which licence tier does the C9200L-24P-4G-E use?
A: It uses the Network Essentials tier, which is a perpetual licence. Cisco DNA Essentials subscriptions are available and must match the Network Essentials tier.

Q: How much PoE power does it provide?
A: A single PWR-C5-600WAC provides a 370W PoE budget. Adding a second PWR-C5-600WAC raises it to 740W, and each port is capped at 30W.

Q: What can it be stacked with?
A: It stacks with other C9200L models at the same licence level using the C9200L-STACK-KIT, up to 8 members. It cannot be stacked with modular C9200 models, C9200CX or other Catalyst families such as 2960-X/XR.

Q: How does it differ from the 48-port or other uplink versions?
A: This SKU has 24 full PoE+ ports with four fixed 1G SFP uplinks and Network Essentials licensing. Sibling SKUs differ in port count, PoE capability, uplink type or licence tier.

Q: Which power supplies and fan module does it work with?
A: It supports the PWR-C5-600WAC and the PWR-C5-715WDC= DC supply, which can be mixed with AC supplies, and the FAN-T2= fan module.
